L491 / R491 系列

品牌： IHSE
型号： L491
马上咨询
产品详情
产品特点
应用方案
文档下载
立即订购

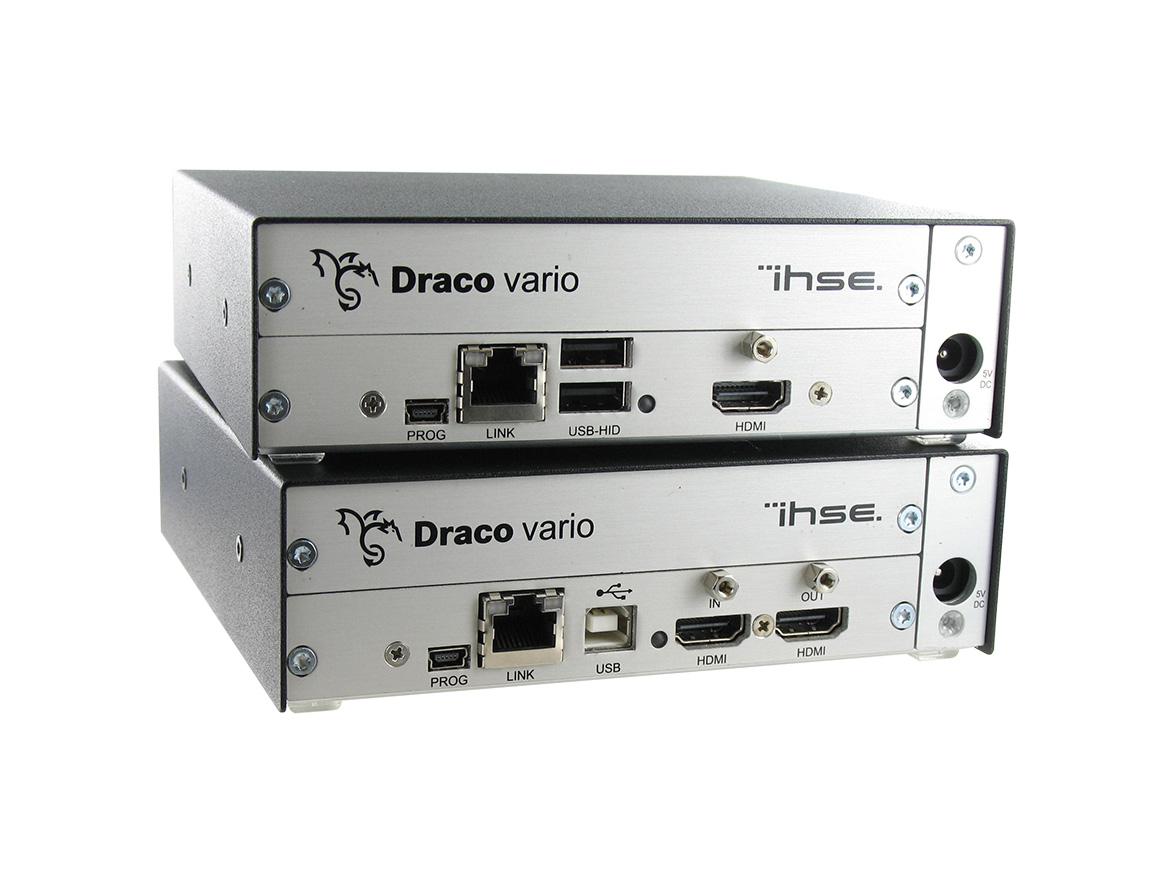

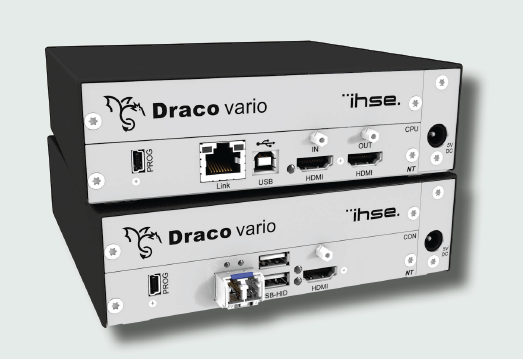

DRACO VARIO ULTRA HDMI 1.3

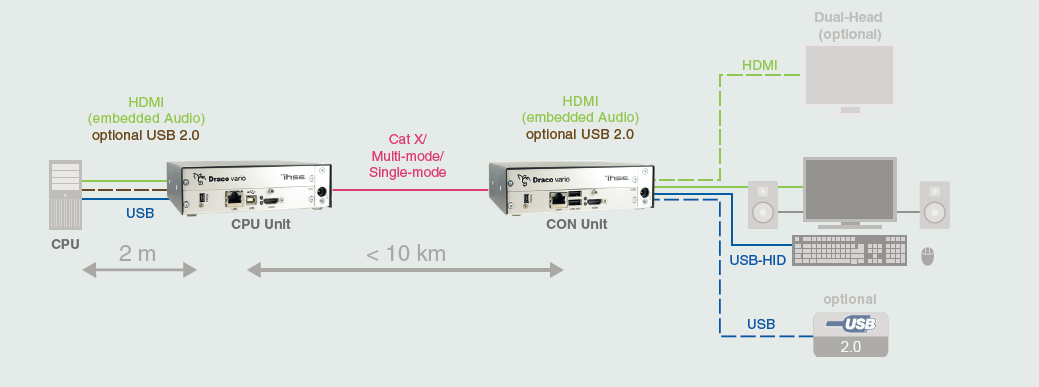

Use the Draco vario HDMI Extender to extend video signals without entailing any loss of quality up to 10 km. Pictures are displayed without delay, brilliantly clear and in highest resolutions, including full HD and 2K.


Support of 3D and audio

Even 3D formats can be transmitted fast and without difficulty. Experience excellent sound data with finest details by digital audio transmission via HDMI. Take advantage of highest flexibility: For interconnections both, Cat X and fiber, can be used.


Various add-ons available

In case you don’t need USB trans-mission we optionally offer a less expensive, half-sided HDMI extra module. This module can be used for mere video extension as well as for realization of multi head applications. Furthermore we offer an optional CPU unit with local access to connect an HDMI monitor as well as a CON Unit with switchable HDMI input for local sources, e.g. computers.


Product Features

  • The standard version allows operation of a remote workstation with a HDMI/DVI-D monitor and two USB-HID devices (keyboard and mouse)

  • High resolution video via HDMI interface

  • Lockable HDMI port

  • The interface is compatible with 3D technology. Side-by-Side and Top-and-Bottom formats can be transmitted

  • Compatible with all major operating systems

  • Compatible with IHSE Draco KVM switches and Draco vario ultra extenders (add-on modules included)*

  • HDMI embedded audio is cross compatible with digital audio add-on modules

  • Redundant data link (optional)

  • Fits into one 19“/1U rack (19” rack mount kit and brackets available)


Specifications

Power SupplyInternational power supply unit (90-240V Input)
InputHDMI 1.3
OutputHDMI 1.3
Maximum Resolution1920 x 1200 @ 60 Hz
2048 x 1152 @ 60 Hz
Color Depth8 bit / True Color
Maximum Cable DistanceCat X 140 m
Single-mode (9 µ) 10 km
Optional InterfacesUSB 2.0 embedded, analog audio with RS232 or RS422, digital audio, PS/2, balanced audio
Keyboard/MouseUSB-HID (support of keyboard/ mouse with additional module USB 2.0 transparent)
UpgradableOnboard Flash

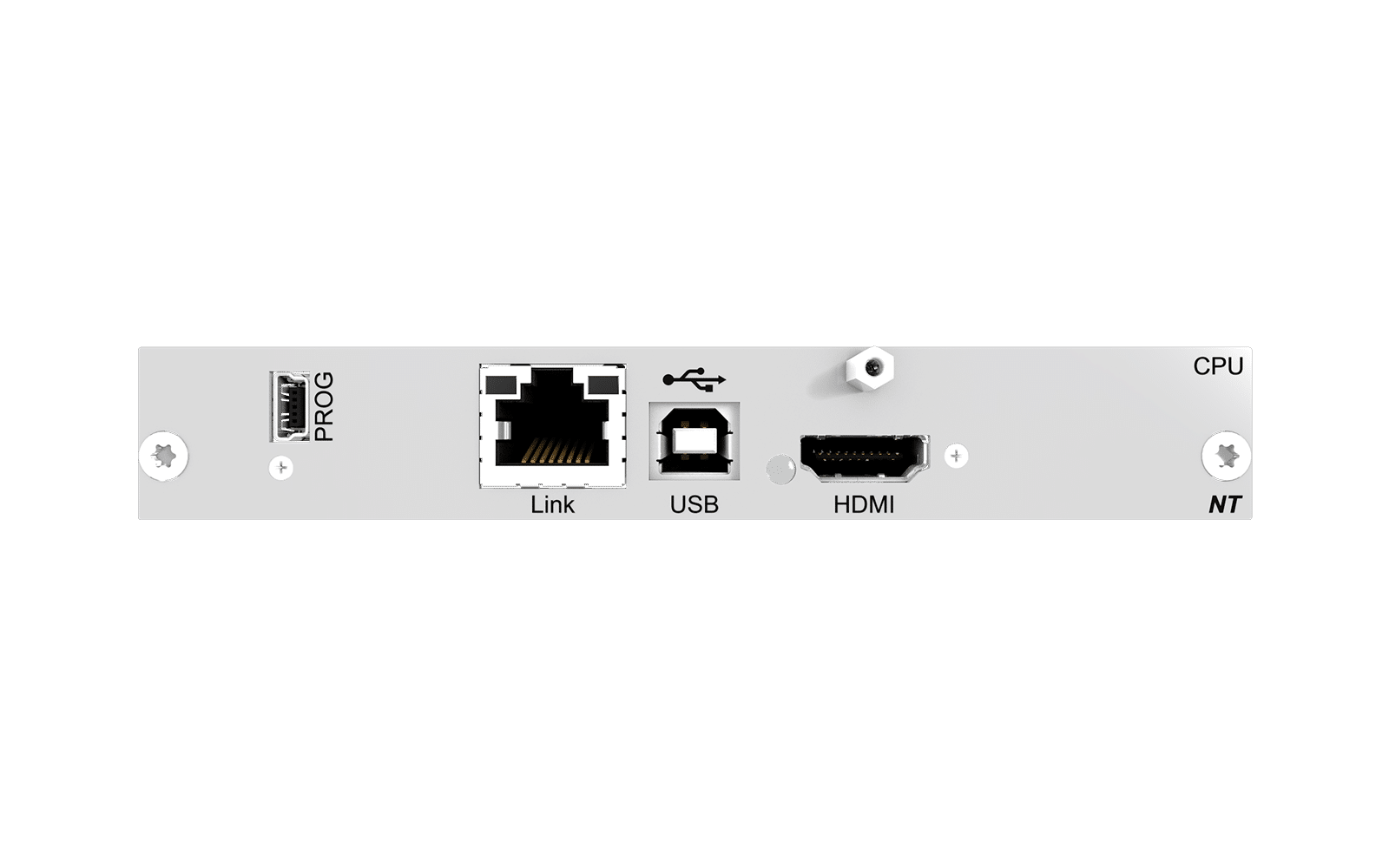

CPU-Unit: Cat X

L491-BHHC

CPU module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID

L491-BHHCL

CPU module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID, local output

L491-BHHCLR

CPU module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local output

L491-BHHCR

CPU module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID


CPU-Unit: Fiber

L491-BHHS

CPU module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID

L491-BHHSL

CPU module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID, local output

L491-BHHSLR

CPU module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local output

L491-BHHSR

CPU module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID


CON-Unit: Cat X

R491-BHHC

CON module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID

R491-BHHCR

CON module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID

R491-BHHCW

CON module, 1x Cat X, 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch

R491-BHHCWR

CON module, 2x Cat X (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch


CON-Unit: Fiber

R491-BHHSR

CON module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID

R491-BHHSW

CON module, 1x Fiber, 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch

R491-BHHSWR

CON module, 2x Fiber (redundant), 1x HDMI monitor, single-link, 2x USB-HID, local KVM-Switch
