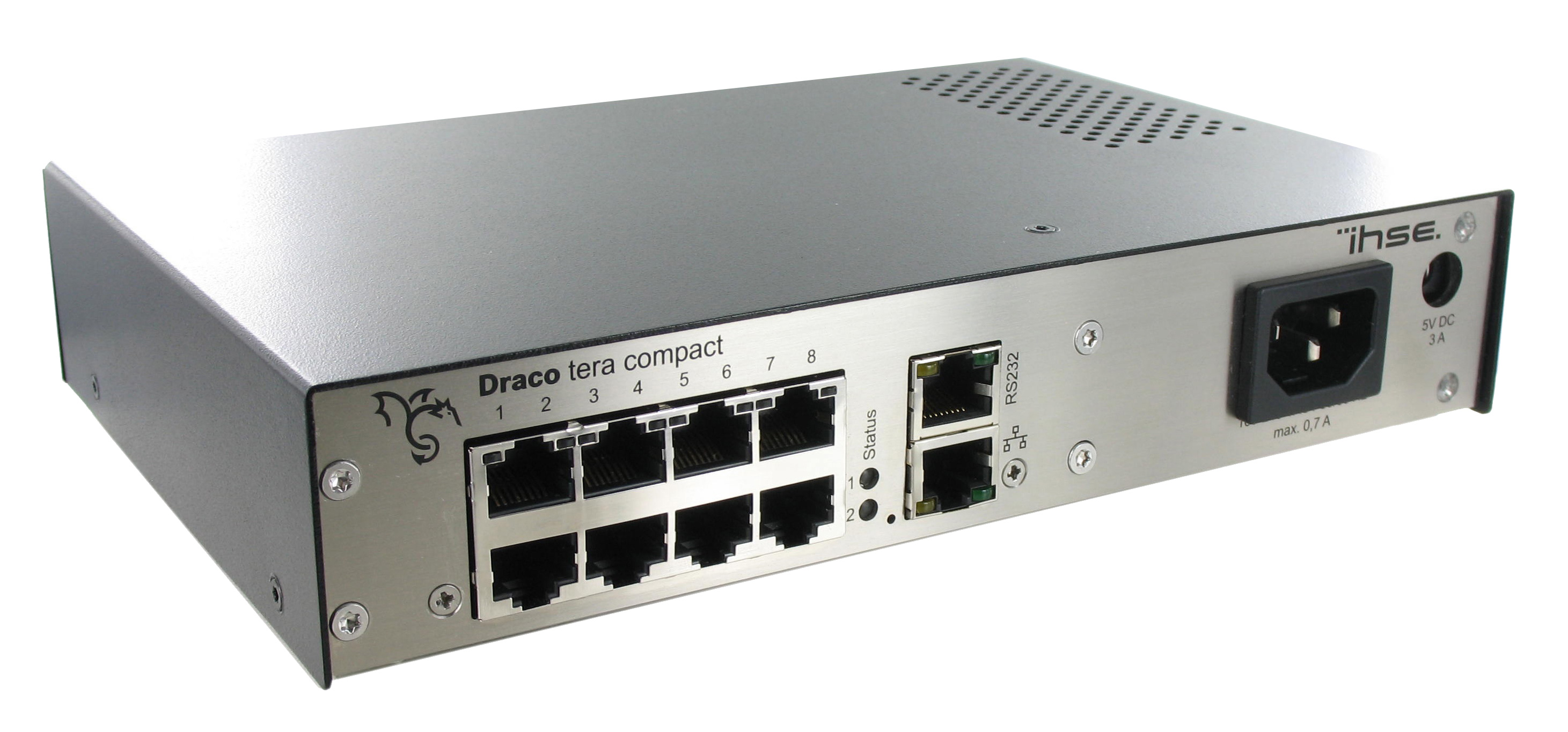

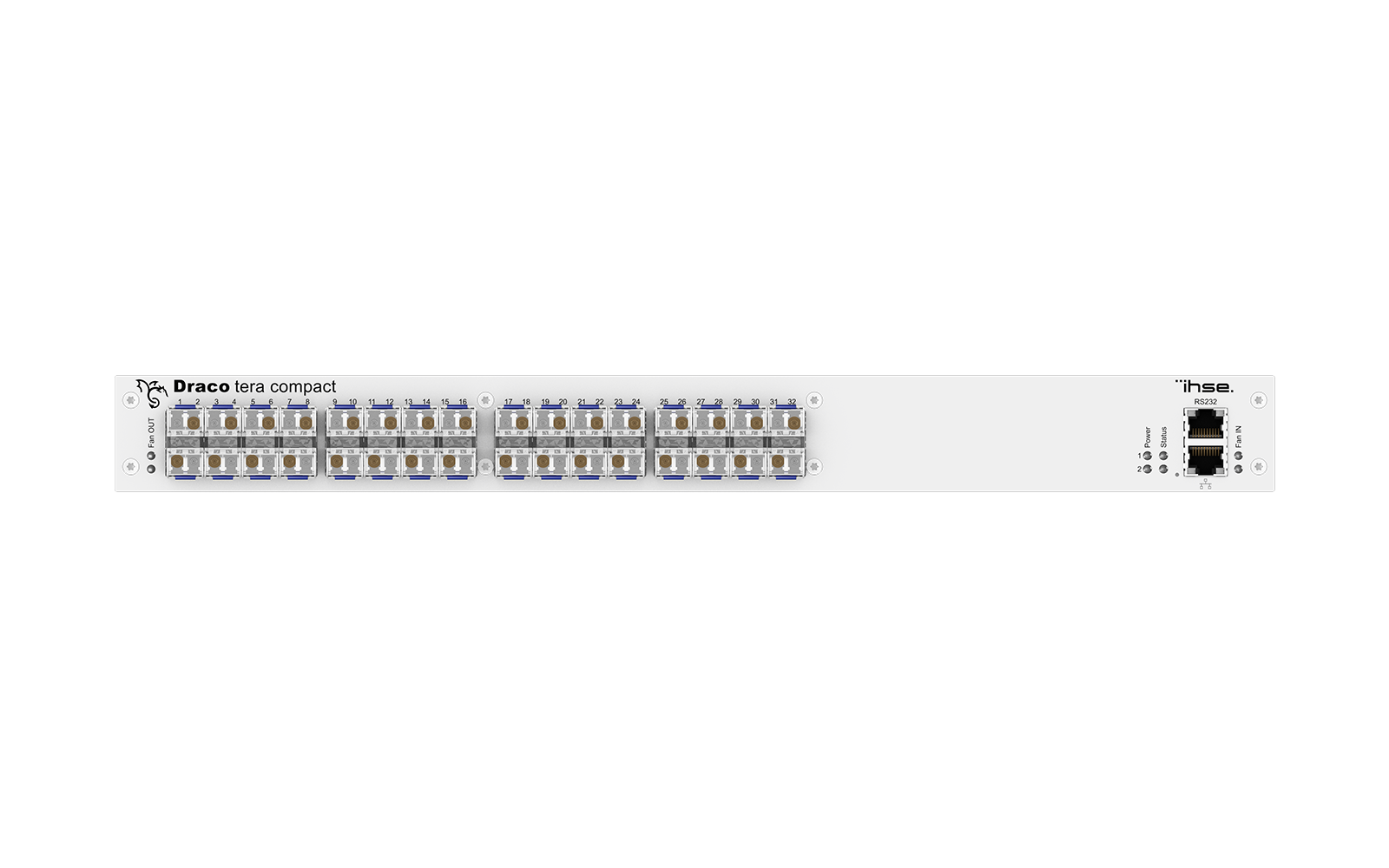

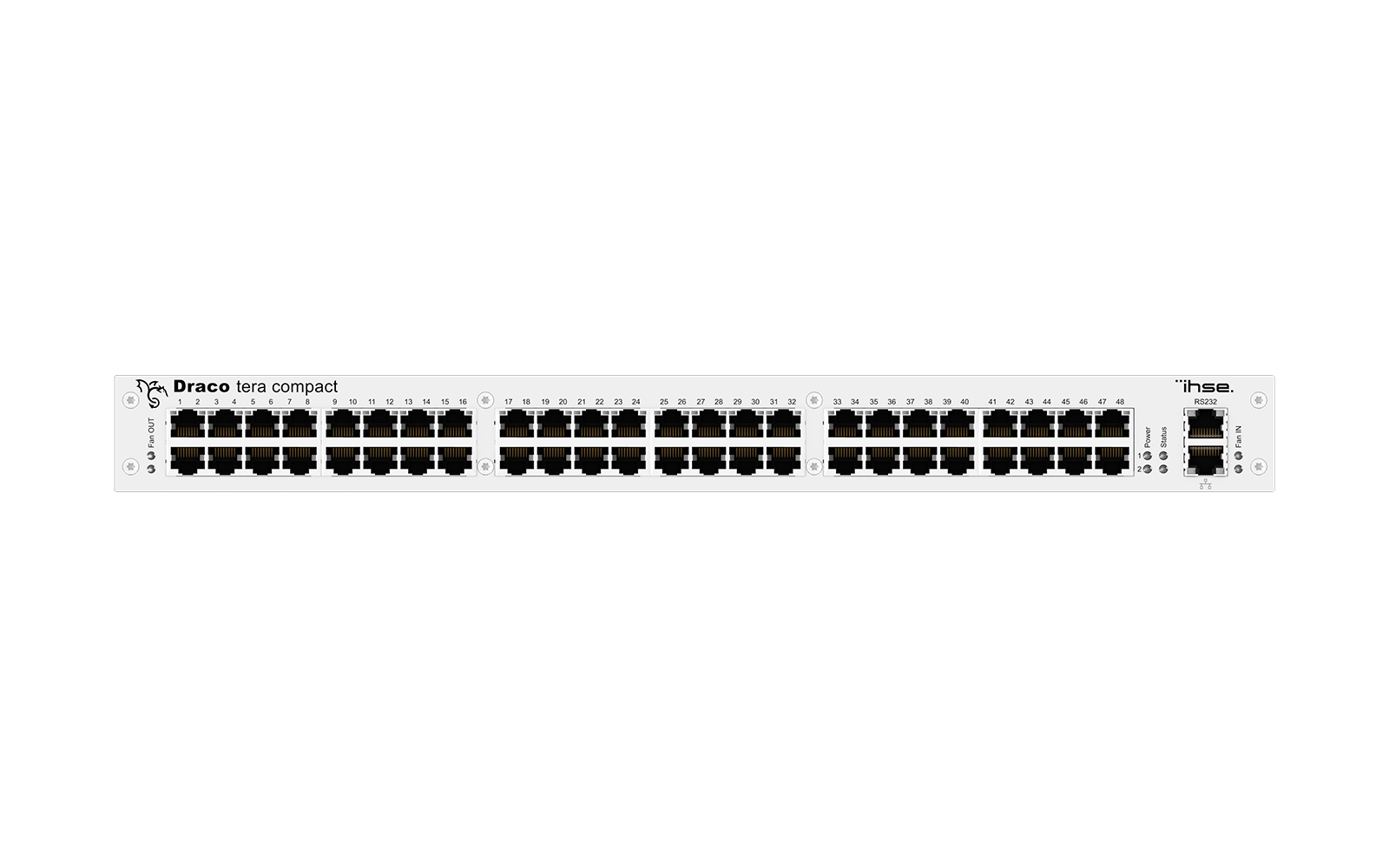

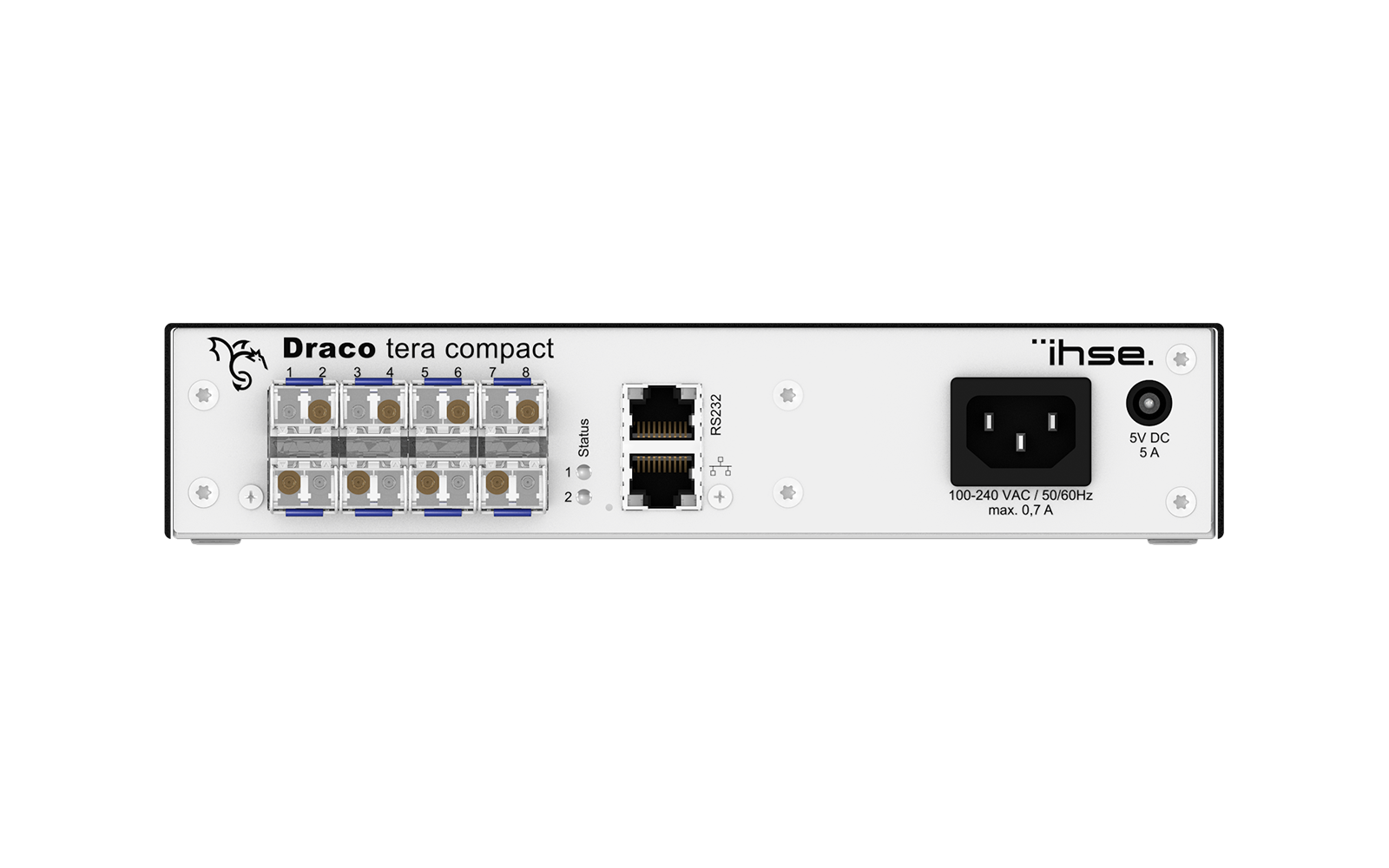

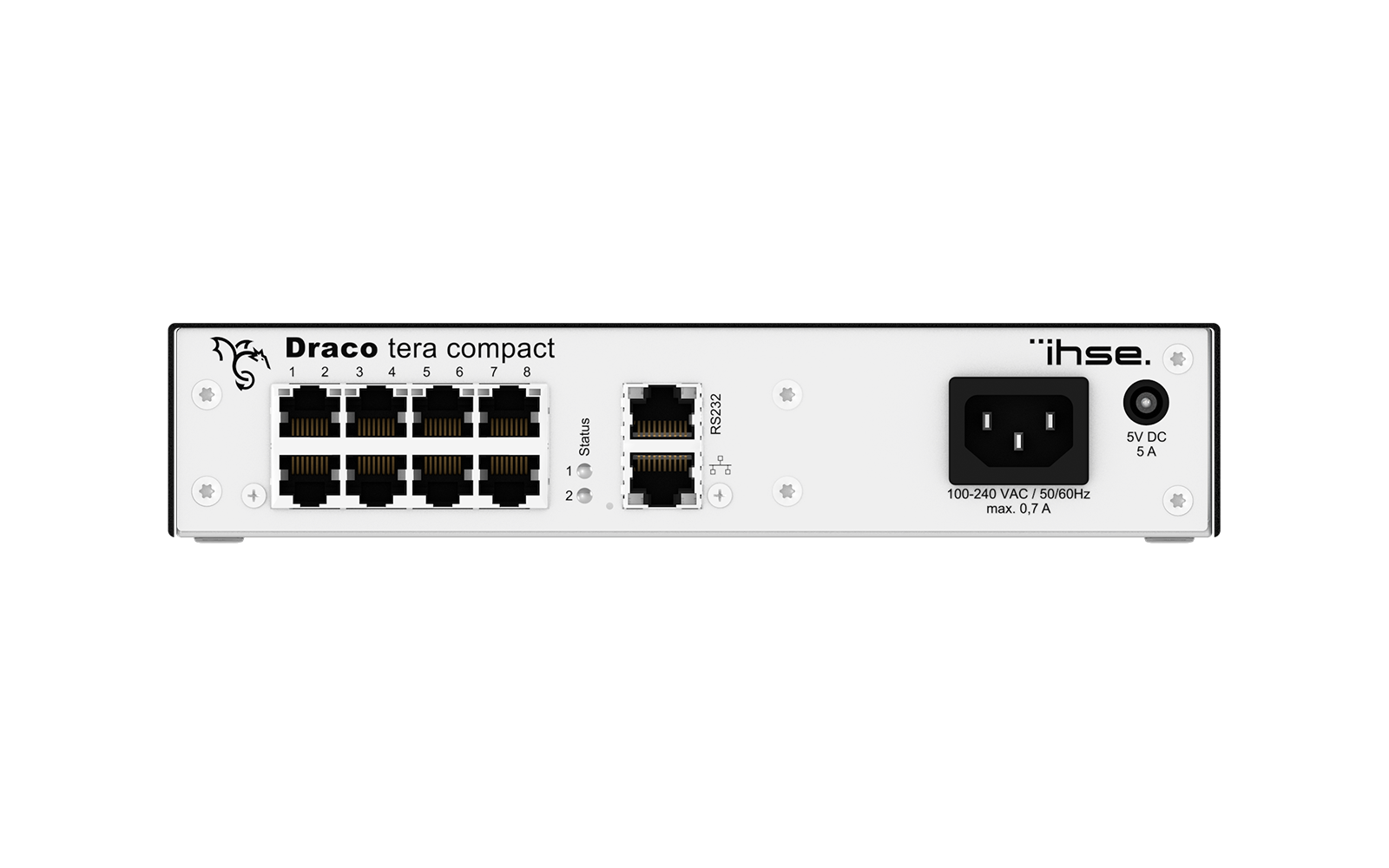

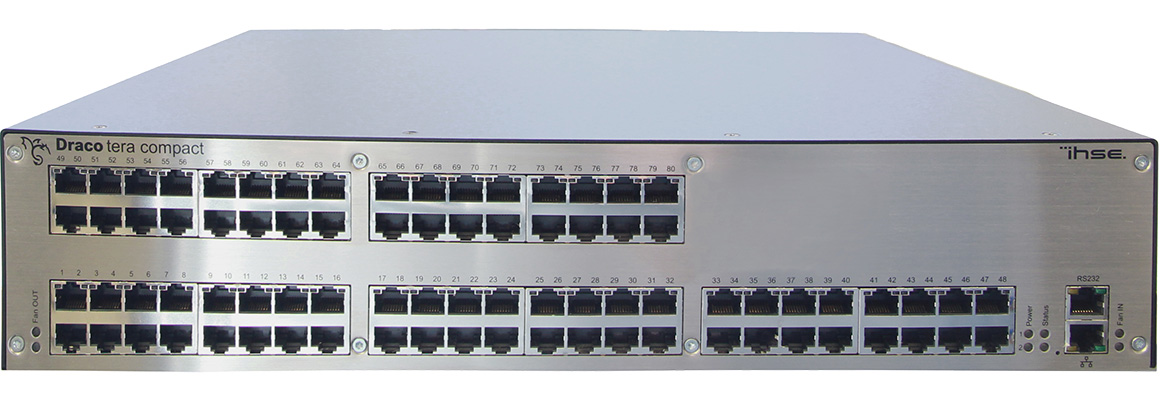

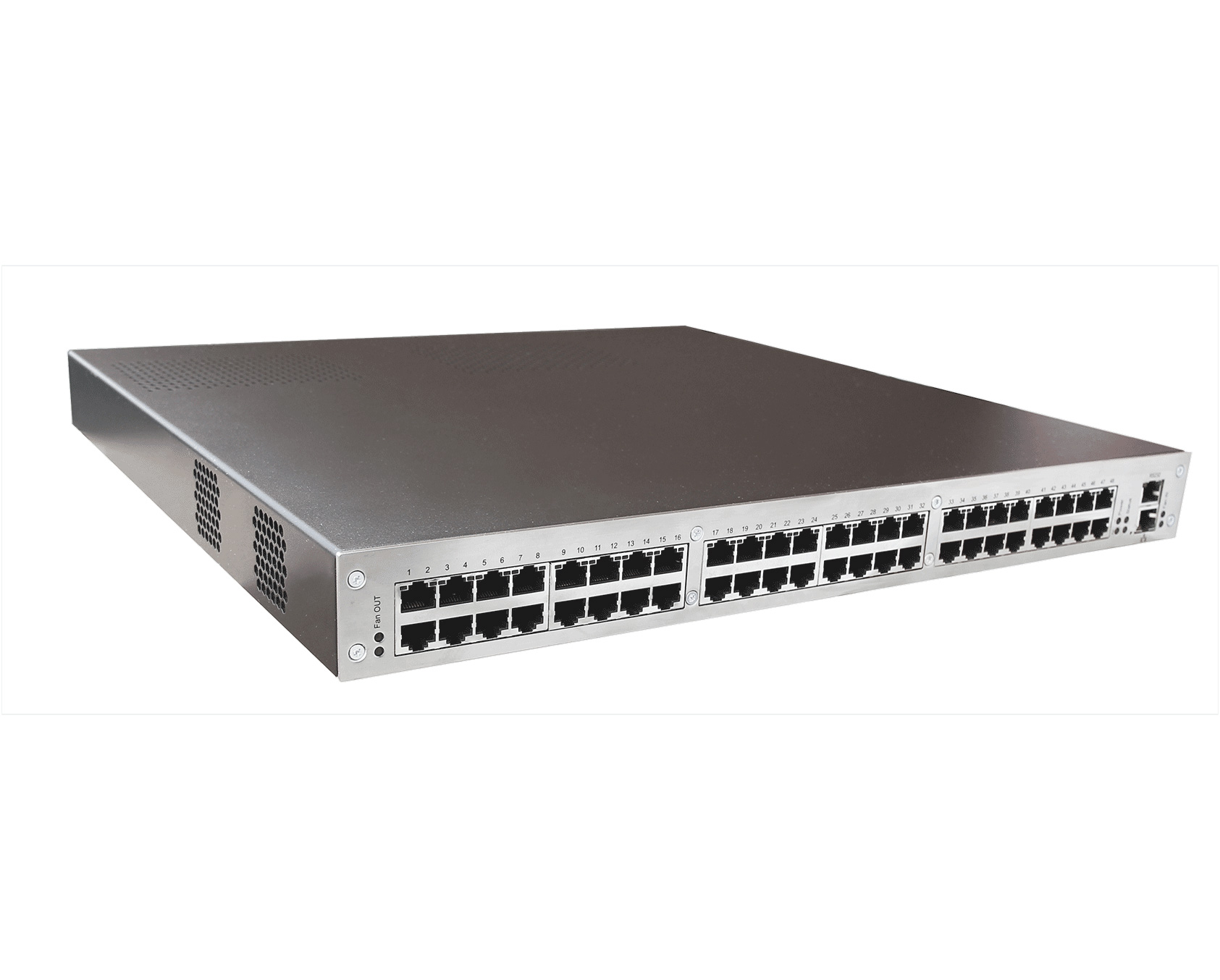

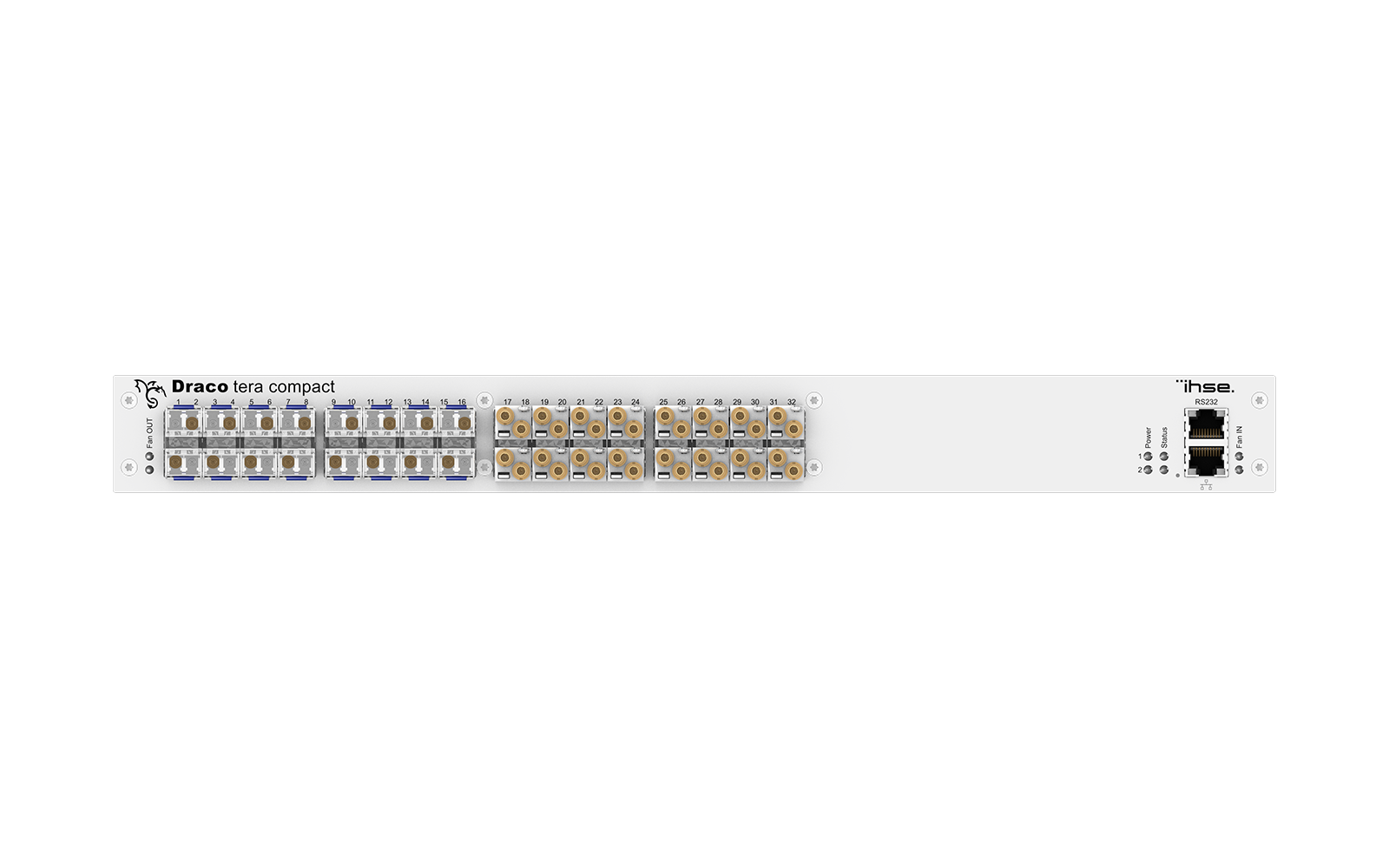

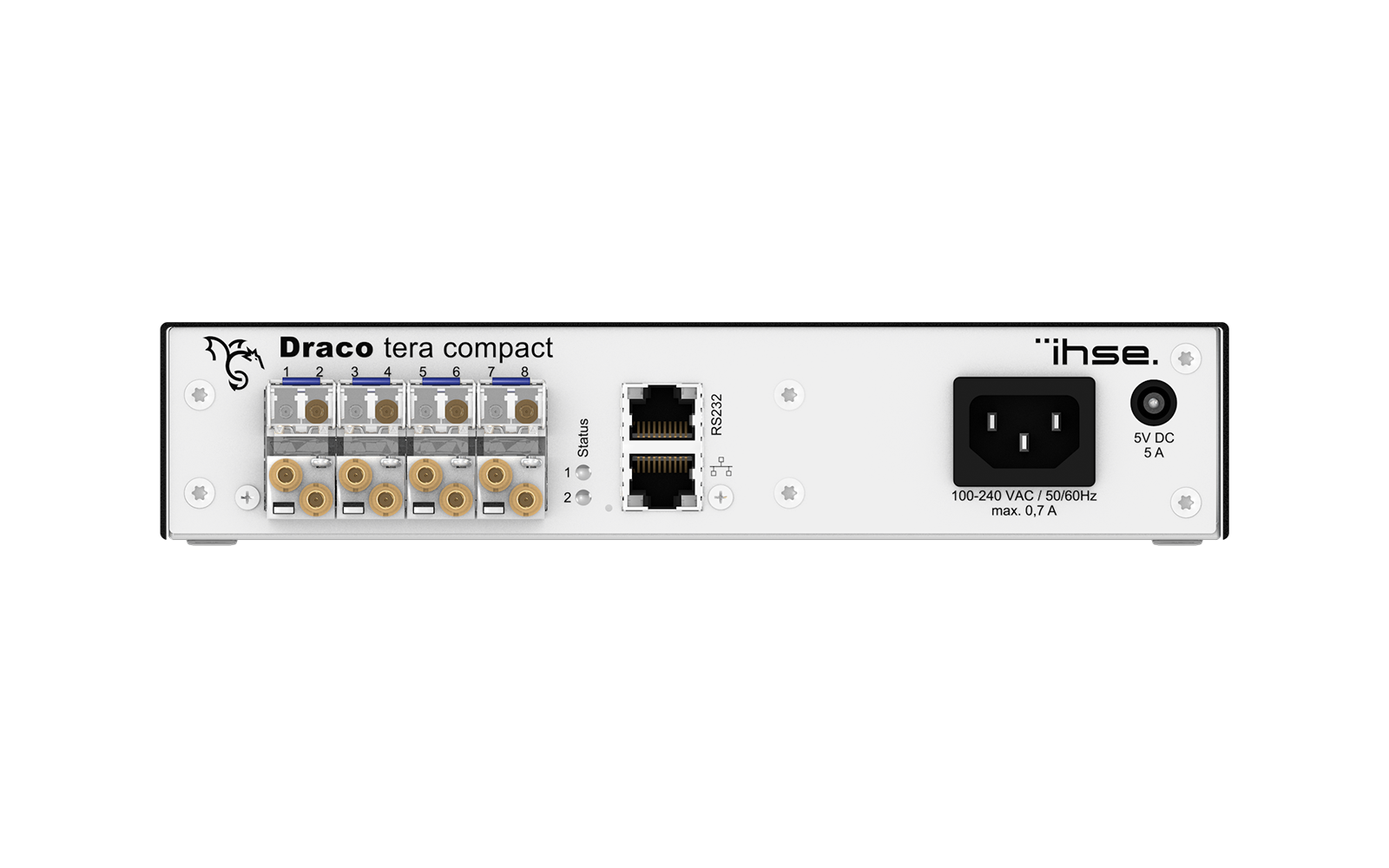

DRACO TERA COMPACT

The Draco tera compact (with 8, 16, 32, 48, 64 and 80 ports) is a matrix switch especially suited for small and medium installations. With fiber optic and Cat-X connections as well as hybrid versions for both module types, it offers high performance at an attractive price.


Compact KVM matrix switch

The Draco tera compact switch with its form factor of max. two 19” rack units is specifically designed for smaller and mid-sized KVM requirements using the same technology found in the larger Draco tera enterprise matrix systems. Based on a small footprint package, the cost-effective frame can be used with all of the Draco extender modules creating the world’s widest selection of KVM solutions. It is a simple operation to set up and configure the matrix with the On-Screen Display (OSD) or through the feature-enhanced Draco tera Tool.


Extenders can accommodate a variety of signal formats and the Draco tera compact auto-senses the individual units through any available port on the chassis. By simply connecting the extender to the chassis, the internal firmware will recognize and auto-configure the port as a CPU or console device. This Flex-Port technology provides a huge time saving for system installers who normally have to pre-configure ports to specific I/O requirements. The system includes instant switching technology for all the popular formats up to 4K resolutions at 60 Hz and 10 bit color depth (4:4:4).


With incredible speed, switching between sources is glitch-free and instantaneous thus reducing eye strain and annoying video tearing found with other systems. With the small footprint and ruggedized chassis design, the Draco tera compact is the perfect KVM space-saving solution where centralized switching of KVM is necessary. It is especially suited for factory floor automation control systems, production studios, OB Vans, and command and control environments.


Product Details

  • Compact size 1 RU or 2 RU

  • Port connections for Cat X, fiber, coaxial

  • Instant switching

  • Latency-free video transmission

  • Flex-Port technology for dynamic port assignment

  • Mix & Match (fiber ports can be switched to Cat X ports and vice versa)

  • Matrix Grid option allows multi-matrix connections through Grid lines

  • Java based tera tool for configuration, operation and maintenance

  • Multi signal support: KVM, USB 2.0/3.0, SDI (SD/HD/3G)

  • Remote extenders can be updated through the matrix

  • API Service for connection with media controllers

  • Multi-Screen Control (new firmware up to 8 ports)

  • LDAP user management

  • SNMP & Syslog monitoring

  • Redundant power supply

  • Support of fully or partly matrix redundancy


Specifications

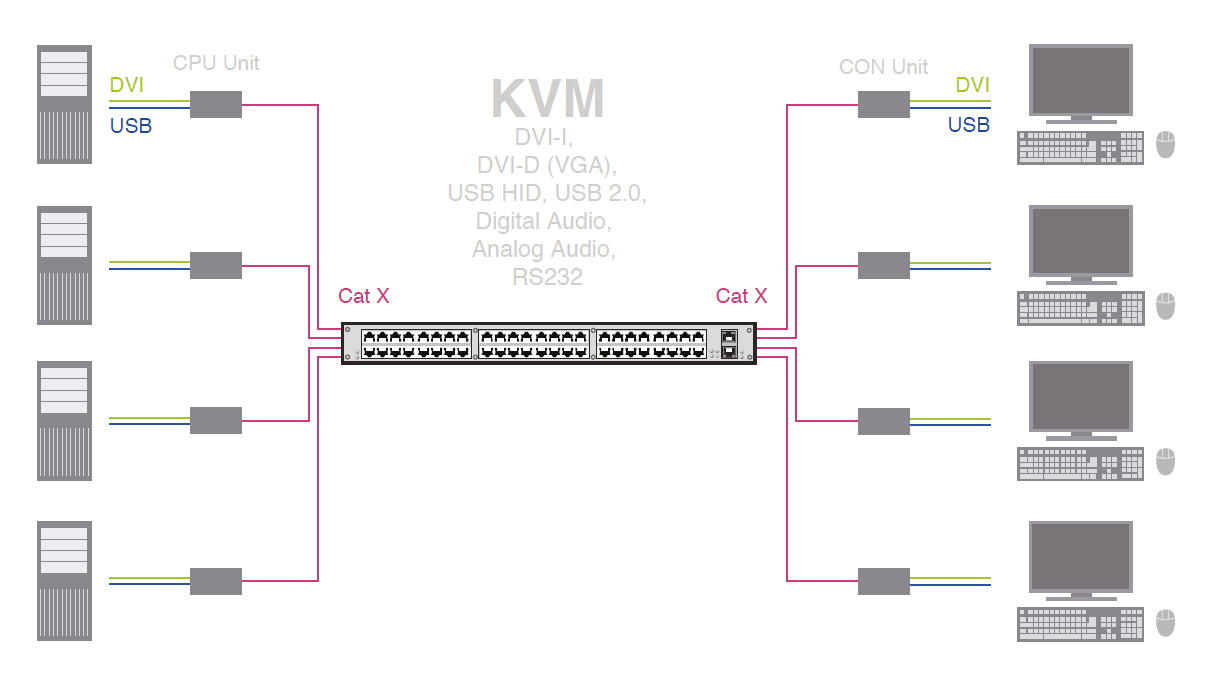

KVM



Input / OutputCat XCat X XVFiberFiber XV
Distance140m100m10km5km
Bandwith1G3G1G3G


Supported Signals: DisplayPort, HDMI, DVI-D, DVI-I, USB 2.0, USB-HID, RS232, RS422, analog / digital or balanced audio


UNIVERSAL (KVM / SDI)

Input / OutputSingle-mode FiberCoax
Distance100m100m
Bandwith6G6G


Supported Signals: USB 3.0, SDI




Cat X Models

B480-08C

Draco tera compact 8 ports, Cat X (module version for mounting in Draco vario chassis)

K480-08C

Draco tera compact 8 ports, Cat X (chassis version with integrated power supply)

K480-16C

Draco tera compact 16 ports, Cat X

K480-32C

Draco tera compact 32 ports, Cat X

K480-48C

Draco tera compact 48 ports, Cat X

K480-64C

Draco tera compact 64 ports, Cat X

K480-80C

Draco tera compact 80 ports, Cat X


Fiber Models

B480-08F

Draco tera compact 8 ports, fiber (module version for mounting in Draco vario chassis), (incl. 8 x SFPs, single-mode, 459-1S)

K480-08F

Draco tera compact 8 ports, fiber (chassis version with integrated power supply), (incl. 8 x SFPs, single-mode, 459-1S)

K480-16F

Draco tera compact 16 ports, fiber (incl. 16 x SFPs, single-mode, 459-1S)

K480-32F

Draco tera compact 32 ports, fiber (incl. 32 x SFPs, single-mode, 459-1S)

K480-48F

Draco tera compact 48 ports, fiber (incl. 48 x SFPs, single-mode, 459-1S)

K480-64F

Draco tera compact 64 ports, fiber (incl. 64 x SFPs, single-mode, 459-1S)

K480-80F

Draco tera compact 80 ports, fiber (incl. 80 x SFPs, single-mode, 459-1S)


Fiber XV Models

B480-08X

Draco tera compact 8 ports, fiber XV (module version for mounting in Draco vario chassis), (incl. 8 x SFPs, single-mode XV, 459-1V)

K480-08X

Draco tera compact 8 ports, fiber XV (chassis version with integrated power supply), (incl. 8 x SFPs, single-mode XV, 459-1V)

K480-16X

Draco tera compact 16 ports, fiber XV (incl. 16 x SFPs, single-mode XV, 459-1V)

K480-32X

Draco tera compact 32 ports, fiber XV (incl. 32 x SFPs, single-mode XV, 459-1V)

K480-48X

Draco tera compact 48 ports, fiber XV (incl. 48 x SFPs, single-mode XV, 459-1V)

K480-64X

Draco tera compact 64 ports, fiber XV (incl. 64 x SFPs, single-mode XV, 459-1V)

K480-80X

Draco tera compact 80 ports, fiber XV (incl. 80 x SFPs, single-mode XV, 459-1V)


Hybrid Models

K480-48C16F

Draco tera compact 64 ports (48 Cat X, 16 fiber), (incl. 16 x SFPs, single-mode, 459-1S)

K480-48C16U

Draco tera compact 64 ports (48 Cat X, 16 universal)

K480-48C16X

Draco tera compact 64 ports (48 Cat X, 16 fiber XV), (incl. 16 x SFPs, single-mode XV, 480-1V)

K480-48C32F

Draco tera compact 80 ports (48 Cat X, 32 fiber), (incl. 32 x SFPs, single-mode XV, 459-1S)

K480-48C32U

Draco tera compact 80 ports (48 Cat X, 32 universal)

K480-48C32X

Draco tera compact 80 ports (48 Cat X, 32 fiber XV), (incl. 32 x SFPs, single-mode, 480-1V)

K480-48F16U

Draco tera compact 64 ports (48 fiber, 16 universal), (incl. 48 x SFPs, single-mode, 459-1S)

K480-48F32U

Draco tera compact 80 ports (48 fiber, 32 universal), (incl. 48 x SFPs, single-mode, 459-1S)


Universal Models

B480-08U

Draco tera compact 8 ports, universal (module version for mounting in Draco vario chassis)

K480-08U

Draco tera compact 8 ports, universal (chassis version with integrated power supply)

K480-16U

Draco tera compact 16 ports, universal

K480-32U

Draco tera compact 32 ports, universal

K480-48U

Draco tera compact 48 ports, universal


Accessories

459-1S

SFP, single-mode, LC duplex, bidirectional, 1G, MSA

459-1V

SFP single-mode, LC duplex, bidirectional, 3G XV, MSA

459-3BX

SFP SDI, 3G/HD/SD video, Micro-BNC to BNC, non-MSA

459-3FX

SFP single-mode, LC duplex, bidirectional, 3G-SDI, MSA

459-6M

SFP multi-mode, LC duplex, bidirectional, for USB 3.0, 6G, MSA

459-BMB

Adapter cable coax, Micro-BNC to BNC (suitable for 459-3BX)
