IOLAN SCR1618控制台服务器为数据中心管理员提供了对任何具有RS232或以太网RJ45控制台端口的设备的安全远程控制台管理。这种经济高效的1U机架解决方案可维护以太网上的协议完整性，并通过支持RIP，OSPF和BGP协议来添加完整的IPv4 / IPv6路由功能。集成的防火墙和两因素身份验证增强了安全性，而强大的多核CPU确保了闪电般的快速路由和交换。借助到多个网络的高级故障转移和零接触配置（ZTP），IOLAN SCR非常适合数据中心管理和来自世界任何地方的IT资产的带外管理。
IOLAN SCR1618控制台管理
 IT资产的控制台管理 IOLAN SCR1618控制台服务器支持通过IP网络通过以太网和RS232 RJ45连接到诸如Cisco，Juniper，HP，路由器，交换机，防火墙，服务器，PBX，网络存储设备和安全设备等设备上的控制台端口。 RS232 RJ45端口可通过软件配置，以使用直通电缆或卷状电缆连接您的Cisco设备。此外，可以将DCD引脚配置为需要此额外信号的第三方设备。这意味着Perle IOLAN SCR支持的串行设备数量较多。这使其成为位于数据中心或远程站点中的IT设备的理想带外管理解决方案。
网络安全性，身份验证和数据加密 认证（2FA）确保对设备和数据的访问仅限于授权用户，而远程认证（RADIUS，TACACS +和LDAP）管理则使与企业级系统的集成能够控制对现场设备的访问。 内置防火墙提供直观的策略，以保护内部网络免受未经授权的访问。防火墙还允许内部网络彼此分离。如果需要外部用户（例如Web或FTP服务器）使用的网络资源，则可以将这些资源放置在非军事区（DMZ）中位于防火墙后面的单独网络中。 网络数据传输和对IT设备上远程控制台管理端口的访问都通过标准加密工具（例如安全外壳（SSH）和安全套接字层（TLS / SSL））进行保护。通过使用加密技术，IOLAN SCR控制台服务器可以在通过企业内部网或公共Internet发送数据之前保护敏感和机密数据。为了与对等加密设备兼容，完全支持所有主要的加密密码，例如AES，3DES，RC4，RC2和CAST128。 通过多个并发VPN会话，OpenVPN和IPSec VPN，在OSI模型的网络层提供了可靠的IP数据包身份验证和加密。这是网络内多供应商互操作的理想选择，它提供了灵活性以及为特定应用匹配正确解决方案的能力。
高可用性访问 基于云的OOBM 为了简化管理并快速响应问题，网络管理员要求通过单个门户网站视图访问所有控制台端口。 Perle的基于云的集中管理解决方案将您的所有网络和IT基础架构整合到一个应用程序中，并在正常操作和严重网络故障期间提供安全可靠的访问和可见性。云集中管理可扩展以适应任何业务需求，可减少人为错误并确保可重复性。 IOLAN SCR具有内置的容错功能，以确保安全可靠地访问以管理重要的关键任务设备。 IOLAN SCR具有18个路由/交换以太网接口，提供了多个冗余网络路径，以确保即使部分网络中断，控制台管理访问权限仍然可用。即使主交流电源出现故障，双交流电源也可确保控制台管理可用。 每个控制台端口均具有强大的15Kv ESD保护电路，可防止静电放电和电涌。
保修 所有Perle IOLAN SCR型号均以业内优佳的服务和支持为后盾，包括Perle独特的保修。自1976年以来，Perle一直为客户提供性能，灵活性和质量高的网络产品。使用Perle IOLAN SCR可以在小化资本支出的同时部署和升级新服务和设备。

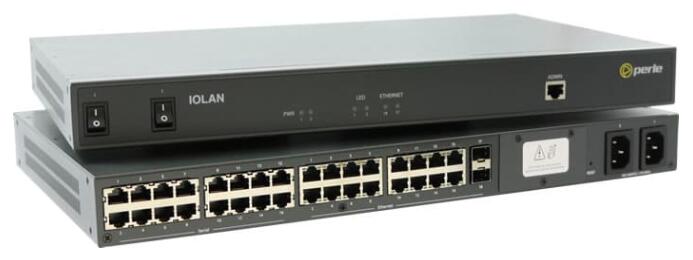

IOLAN SCR1618 Secure Console ServerIn-Band and Out-of-Band IT Infrastructure Management 16 x RS232 RJ45 Console Management Ports 16 x Ethernet RJ45 Console Management Ports 2 x SFP Slots supporting 1G/2.5G Fiber or 10/100/1000Base-T PerleVIEW Central Management Software simplifies configuration, administration, monitoring, and troubleshooting. Cloud Hosting -- Deploy and manage your network from the cloud Advanced routing engine with AAA security and SSH/SSL encryption to meet all data center compliance policies
Hardware Specifications - IOLAN SCR Secure Console Server| Interface Ports |
|---|
| Back of Product |  | | Integrated Device Management Ports (Serial) | 16 x RS232 RJ45
Data Bits: Configurable for 5,6,7 or 8-bit protocol support
Paity: Odd, Even, Mark, Space, None
Flow Control: Hardware, Software, Both, None
Serial Protection: 15Kv Electrostatic Discharge Protection (ESD) | | Integrated Device Management Ports (Ethernet) | 16 x 10/100/1000 Base-T Copper
Software selectable 10/100/1000 Ethernet, Auto
Software selectable Half/Full/Auto duplex
Ethernet isolation 1.5KV magnetic
Up to 100m / 328ft | | Network | 2 x SFP Slots supporting 1G/2.5G Fiber or 10/100/1000Base-T
IEEE 802.3 for 10Base-TX
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control | | Local Console Port | 1 x RS232 RJ45 | | LEDs | Power 1 & 2, System, WAN / IP Health, Ethernet Port Activity & Speed | | Reset | Reset Button used for restart, factory default and safe mode | | Power |
|---|
| Power Input | Dual AC power supplies | | Nominal Input Voltage | 110/230v AC | | Input Voltage Range | 100-240v AC | | AC Input Frequency | 47-63Hz | | Current Consumption @ 100v (Amps) | .2A | | Current Consumption @ 240v (Amps) | .15A | | Typical Power Consumption (Watts) | 16.8 Watts | | Power Line Protection | Fast transients: 1 KV (EN61000-4-4 Criteria B)
Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential and common modes) | | Environmental Specifications |
|---|
| Operating Temperature | 0°C to 55°C, 32°F to 131°F | | Storage Temperature | -40°C to 85°C, -40°F to 185°F | | Humidity | 5 to 95% (non condensing) for both storage and operation. | | Operating Altitude | Up to 3,048 meters (10,000 ft) | | Ingress Protection Rating | IP30 | | Heat Output (BTU/HR) | 122 | | MTBF (Hours) | 190,295 Calculation model based on MIL-HDBK-217-FN2 @ 30 °C | | Case | SECC Zinc plated sheet metal (1 mm) | | Mounting | 1U - 19" rack, front and rear mounting hardware included | | Product Weight and Dimensions |
|---|
| Product Weight | 3.54 kg / 7.08 lbs | | Dimensions | 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) | | Packaging |
|---|
| Shipping Dimensions | 59 x 36 x 9 (cm) / 23.23 x 14.17 x 3.54 (in) | | Shipping Weight | 4.26 kg / 9.40 lbs | | Regulatory Approvals |
|---|
| Emissions | FCC 47 Part 15 Subpart B Class A
ICES-003 (Canada)
EN55011 (CISPR11)
EN55032 (CISPR32)
EN61000-3-2 Limits for Harmonic Current Emissions
EN61000-3-3 Limits of Voltage Fluctuations and Flicker
| | Immunity | EN55024
EN61000-4-2 (ESD): Contact
EN 61000-4-3 (RS): EN 61000-4-4 (EFT)
EN61000-4-5 (Surge)
EN 61000-4-6 (CS)
EN 61000-4-8 (PFMF)
EN 61000-4-11 | | Safety | UL/ULC/EN 62368-1 (previously 60950-1)
CE Mark
CAN/CSA C22.2 No. 62368-1-14 | | Other | Reach, RoHS and WEEE Compliant
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8517.62.0020
Perle Limited Lifetime warranty |
Software Features - IOLAN SCR Secure Console Server| Management & Configuration |
|---|
| Zero Touch Provisioning (ZTP): automates the provisioning of both the configuration and firmware files through DHCP/Bootp Options | | PerleView Central Management: a web-based server configuration tool that simplifies setup and deployment and gives network managers visibility and control over network configurations at remote sites. | | Management & Monitoring: HTTP/HTTPS, CLI, Telnet, SNMPv1/v2/v3, REST, TACACS+ | | Multiple firmware versions can be saved on the unit. This allows the customer to change between older and newer firmware versions whithout the need to download. | | Multiple configuration files can be stored on the unit., This allows the customer to eaisly switch between older and newer configurations during testing or production deployments. | | Automatic check for software updates available over FTP, HTTP, HTTPS, SCP, SFTP, and TFTP | | LLDP-Link Layer Discovery Protocol, as per IEEE 802.1AB, is a neighbor discovery protocol that is used for network devices to advertise information about themselves to other devices on the network. This protocol runs over the data-link layer, which allows two systems running different network layer protocols to learn about each other via TLVs (Type-Length-Value). | | RESTful API uses HTTP requests to access and use IOLAN SCR statistics and configuration data. Any of the CLI commands can be executed through a RESTFul API script that cn be controlled externally from a server. | | Connectivity Watchdog can instruct the IOLAN SCR to take different acctions (i.e. reboot) if the network connectivity to a pre-define IP address is lost. This is helpful for situations when the IOLAN SCR is deployed on remote locations hard to service if the network connectivity is lost. | | Automatic DNS Update: Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details | | Dynamic DNS with DYNDNS.org | | Installation Wizard | | Redundancy |
|---|
| Load Balancing | | VPN Failover | | Virtual Router Redundancy Protocol (VRRPv3) enables a group of devices to form a single virtual device to provide network redundancy | | Primary/Backup host functionality enables automatic connections to alternate hosts | | Routing Protocols |
|---|
| The IOLAN SCR can be configured for any of the major routing protocols for an easy integration within the data center Ethernet backbone: RIP/RIPNg, OSPFv3, BGP-4, NAT, IPv4/IPv6, Static Routing, IPv6 Encapsulations (GRE, 6in4), Port Routing | | IPv6 to IPv4 translation is fully supported for environments where the Ethernet data backbone is run on IPv6 and the port management is run on IPv4 | | Using NAT for enhanced security, the IOLAN SCR can map a single IP address, across all or several of it's Ethernet ports. | | IP Applications |
|---|
| DDNS, DNS Proxy / Spoofing, relay, client, Opt. 82, | | NTP & SNTP (versions 1, 2, 3, 4) | | DHCP / DHCPv6 server / DHCP Snooping & BOOTP | | VLAN & VPN |
|---|
| VLAN, OpenVPN, VPN Failover (16 concurrent VPN tunnels) | | IPSec VPN: NAT Traversal, ESP authentication protocol | | Firewall Features |
|---|
| Ability to set up firewalls to restrict incoming and outgoing packets | | Built in Zone-Based Policy Firewall for local security and traffic filtering. | | Access Control Lists (list & ranges & time) | | Filter based on MAC Address, IP, Port, Protocol, User | | IEEE 802.1x Authentication and Port Security can be enabled for any Ethernet port for increased security port access. | | Port Forwarding | | BGP Communities | | Security Features |
|---|
| AAA Security via remote authentication (Radius, TACACS+, & LDAP) | | Trusted host filtering (IP filtering), allowing only those hosts that have been configured in the host table access to the router. | | Ability to disable services (for example, Telnet, TruePort, Syslog, SNMP, Modbus, HTTP) for additional security | | Ability to disable Ping responses | | SSH client/server connections (SSH 1 and SSH 2). Supported ciphers are Blowfish, 3DES, AES-CBC, AES-CTR, AES-GMC, CAST, Arcfour and ChaCha20-Poly1305. Ability to individually disable network services that won’t be used by the SSH client/server connections. | | SSL/TLS client/server data encryption (TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0 ) | | SSL Peer authentication | | SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384 | | Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2) | | Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96 | | Key exchange: RSA, EDH-RSA, EDH-DSS, ADH | | Certificate Support (X.509) | | Certificate authority (CA) list | | Local database | | RIP authentication (via password or MD5) | | 2 Factor (2F) Authentication over e-mail enhances administration access security | | Management Access Control | | Demilitarized Zone (DMZ) | | Secure HTTP/HTTPS/FTP/Telnet Authentication Proxy | | SNMP v3 Authentication and Encryption support | | IP Address filtering | | Disable unused daemons | | Active Directory via LDAP | | Logging, Reporting & Alerts |
|---|
| Email alert notification | | Syslog, Event Type, Report Type, Alerts & Monitoring, Triggers Status Screen Report, Data Usage, Diagnostic, Login Banner | | Accessing Console Management Ports (Serial & Ethernet) |
|---|
| Serial Protocols: PPP, PAP/CHAP, SLIP | | Connect directly using Telnet / SSH by port and IP address | | Use an internet browser to access with HTTP or secure HTTPS | | Java-free browser access to remote serial console ports via Telnet and SSH | | Ports can be assigned a specific IP address | | Multisession capability enables multiple users to access ports simultaneously | | Multihost access enables multiple hosts/servers to share serial ports | | Console Management Functions |
|---|
| Sun / Oracle Solaris Break Safe | | Local port buffer viewing - 256K bytes per port | | External port buffering via NFS, encrypted NFS and Syslog | | Event notification | | Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console | | Terminal Server Functions |
|---|
| Telnet | | SSH v1 and v2 | | Auto session login | | LPD, RCP printer | | MOTD - Message of the day | | Serial to Ethernet functions |
|---|
| Tunnel raw serial data across Ethernet - clear or encrypted | | Raw serial data over TCP/IP | | Raw serial data over UDP | | Serial data control of packetized data | | Share serial ports with multiple hosts/servers | | Virtual modem simulates a modem connection - assign IP address by AT phone number | | Virtual modem data can be sent over the Ethernet link with or without SSL encryption | | TruePort com/tty redirector provides fixed TTY or COM ports to serial based applications enabling communication with remote devices connected to Perle IOLAN's either in encrypted or clear text modes. | | TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity | | RFC 2217 standard for transport of serial data and RS232 control signals | | Customizable or fixed serial baud rates | | Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101 | | ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP | | Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port | | Protocols |
|---|
| IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, IPSec, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP |

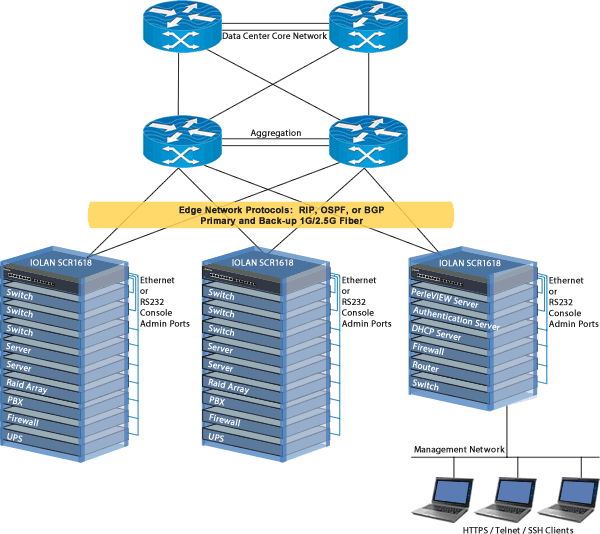

应用方案一：

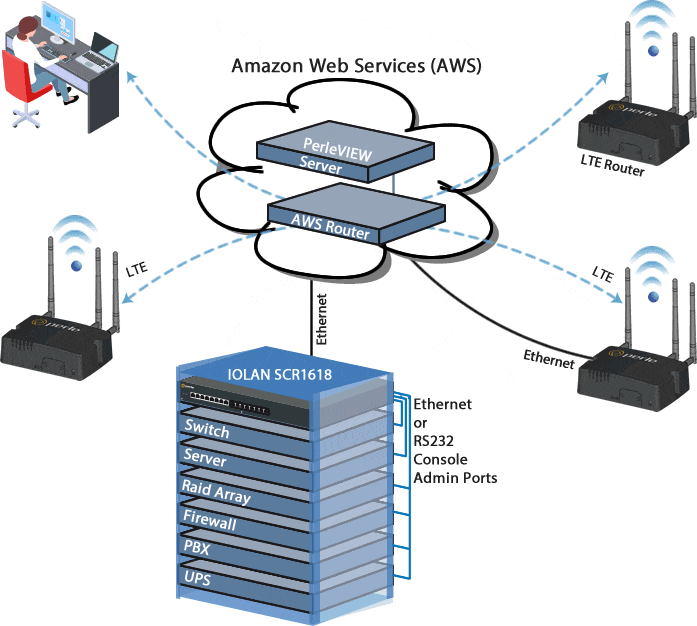

应用方案二：
产品订购型号信息：
| 产品信息 | 描述 | 电源线国别 | 产品料号 |
|---|
 | IOLAN SCR1618 Console Server: 16 x RS232 RJ45 Console Management Ports, 16 x Ethernet Managements Ports, 2 x SFP Slots supporting 1G/2.5G Fiber or 10/100/1000Base-T, IPv4/IPv6 routing (RIP, OSPF, BGP), ZTP, Cloud-hosting, advanced data encryption and user authentication, 15kv ESD, Dual AC Power | USA | 04031134 | | UK | 04031131 | | EU | 04031132 | | SA | 04031135 | | AUS | 04031136 |
|
