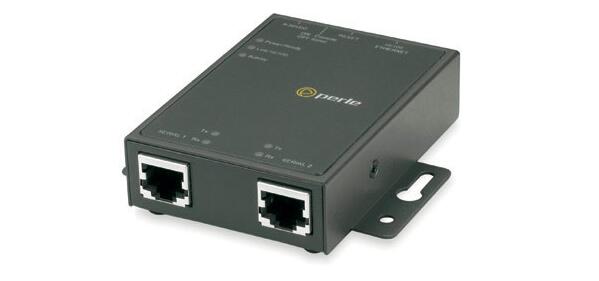

IOLAN SDG

简介：	1、2、4或8个RS232/422/485端口，DB9M、RJ45或DB25F连接器，10/100/1000 RJ45以太网
类型：	设备服务器
品牌：	Perle
型号：	SDG1 DB9、SDG1 RJ45、SDG1 DB25、SDG2、SDG4、SDG8 P

马上咨询

产品详情

产品特点

应用方案

文档下载

立即订购

对于安全的串行到以太网连接应用程序，IOLAN SDG Device Server 是紧凑产品。IOLAN SDG 作为一种高性能的紧凑产品，可以提供广泛的安全性、灵活性和下一代 IPv6 技术，从而让它成为需要远程设备/控制台管理、数据获取和监控功能的应用程序的较佳选择。IOLAN Serial Device Server 还可以通过 V.92 调制解调器实现集成, 支持 Power over Ethernet (PoE), Class 1 Division 2 或广泛的温度范围.

为什么 IOLAN SDG 型号是优佳选择

强大的处理器带来市面优佳的吞吐量和性能
TrueSerial® 数据包交换技术 — 可靠的跨以太网串行连接确保串行协议的完整性
网络和串行接口指示灯，便于故障诊断
即插即用的安装工具消除了在你的IP网络上配置所有IOLAN的麻烦
TruePort Perle 适用于基于串行应用程序的 com/tty 重定向器在 Windows、Vista、Linux、Solaris、SCO 和 Unix 上运行。
串行电缆供电型号消除了单独安装电源的成本
支持下一代IP ( IPv6 )，投资得到保护，网络具有兼容性
简洁、具有保护作用的、坚固的钢质外壳，适合桌面、wall mount或DIN rail安装

安全的串行连接

IOLAN SDG使管理员能够通过IP网络安全地访问PBX、服务器、路由器、网络存储设备等设备以及安全装置上的远程串行控制台端口。敏感数据(如信用卡持卡人的信息)通过标准的加密工具得到保护，如安全外壳(SSH)和安全套接字层(SSL)。通过身份验证方案确保授权用户的访问，如RADIUS、 TACACS+、LDAP、Kerberos、NIS和RSA Security的SecurID令牌。.

在企业内联网或公共互联网上发送数据之前，通过使用加密技术，IOLAN可以保护来自串行设备（如信用卡读卡器）的敏感数据和机密数据。考虑到与同等加密设备的兼容性，全面支持所有主要的加密算法，如AES、3DES、RC4、RC2以及CAST128

IPSec 标准是公认的通过 Internet 与远程专用网络通信的安全方法，它可以在 OSI 模型的网络层加强对 IP 数据包的验证和加密。作为一种标准，它非常适合多个供应商在一个网络内相互操作，它能够灵活提供合适的解决方案来满足特定应用的需求。

IOLAN Plug-ins

用户通过选择 Perle IOLAN Device Server，可将确保使用串行 COM 端口的任何设备与所需的任何应用程序顺利协作，而与直接连接没有任何区别。Perle IOLAN Device Server 在任何情况下均可启用此功能，Perle 确实可以胜任。

Perle IOLAN Device Servers 利用可由客户安装的“设备插件”成功地将设备接入到其它解决方案无法连接的网络中"现在可以申请免费的工程咨询服务。

IP技术

由于支持下一代IP(IPv6)，IOLAN系列为组织提供了投资保护，以满足这个快速成长的标准。

对IPv6（兼容IPv4编址方案）的需求，是由于需要更多IP地址而推动的。随着3G蜂窝网络的实施和部署，需要一个健壮的方法来处理互联网上新的IP 编址设备的大量流入。实际上，美国国防部已经要求，从2005年起所购买的所有设备应当兼容IPv6，到2008年全面实现IPv6。另外，所有主要的操作系统(如Windows、Linux、Unix和Solaris)以及路由器都内建支持IPv6。

因此，最终用户和集成商选择结合IPv6标准的联网设备是很重要的。内建支持IPv6的IOLAN系列，是串行以太网连接技术中的最佳选择。

灵活、可靠的以太网串行连接

IOLAN SDG能够通过Telnet、Rlogin伪连接到服务器，伪连接基于UDP或TCP套接字的应用到远程设备。在服务器的应用需要访问固定的TTY或COM端口时，随同每个设备服务器提高的Perle TruePort 软件以加密或明文的模式在IP网络上重定向COM端口到远程的Perle设备服务器。

多个部署的集中控制和管理是通过Perle的Device Manager软件来维护的，从而使你的远程设备获得长久的正常运行时间

在所有IOLAN SDG 型号上，以强大的15Kv ESD保护电路提供静电放电和电源浪涌保护，使组织能够充满信心地在现场使用该解决方案。

支持和保证

Perle IOLAN SDG安全的设备服务器的背后有业内优好的服务和支持做支撑，包括Perle独有的保证。从1976年起，Perle一直在向其客户提供具有高性能、灵活性和质量的联网产品。

IOLAN SDG

串行到以太网设备服务器

1, 2, 4 或 8 个软件可选的 RS232/422/485串行接口
10/100/1000 以太网
先进的安全特性，包括数据加密、用户认证和事件管理

Hardware Specifications - IOLAN SDG Device Servers

Memory
Processor	600 Mhz ARM processor
RAM MB	512
Flash MB	4000
Interface Ports
Number of Serial Ports	1, 2, 4 or 8
Serial Port Interface	Software selectable EIA232/422/485 on
Serial Port Interface	1 Port: DB9M, RJ45 or DB25F 2 Port: RJ45 4 Port: RJ45 8 Port: RJ45
Sun / Solaris	Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds	300bps to 230Kbps with customizable baud rate support
Data Bits	Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data
Parity	Odd, Even, Mark, Space, None
Flow Control	Hardware, Software, Both, None
Serial Port Protection	15Kv Electrostatic Discharge Protection (ESD)
Local Console Port	RS232 on Serial Port
Network	Autosensing 1000Base-T / 100Base-TX / 10Base-T Auto-MDIX
	Software selectable Ethernet speed 10/100/1000 Auto
	Software selectable Half/Full/Auto duplex
Ethernet Isolation	1.5Kv Magnetic Isolation
Power
Power Supply	120 V AC (USA), 230V AC (International) Wall Power Adaptor included
Power Supply Options	Power via External power 9-30v DC, 4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket, Power IN over serial cable
Nominal Input Voltage	12v DC / 24v DC
Input Voltage Range	9-30v DC
Power IOLAN over Serial	9-30v DC
Power External Device via Serial Port	+5v DC regulated, 1W max
Typical Power Consumption @ 12v DC (Watts)	1 Port: 1.9 2 Port: 2.0 4 Port: 2.0 8 Port: 2.7
Typical Power Consumption @ 12v DC (Watts)	Does not include power for devices connected to serial port
Indicators
LEDs	Power/Ready
	Network Link
	Network Link activity
	Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output (BTU/HR)	1 Port: 6.80 2 Port: 8.90 4 Port: 16.38 8 Port: 9.20
MTBF (Hours)	1 Port: 238,681 2 Port: 218,646 4 Port: 187,919 8 Port: 126,364
MTBF (Hours)	Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Operating Temperature	0C to 55C, 32F to 131F
Storage Temperature	-40C to 66C, -40F to 150F
Humidity	5 to 95% (non condensing) for both storage and operation.
Case	SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating	IP40
Mounting	Wall or Panel mounting, DIN Rail mounting kit optional
Product Weight and Dimensions
Weight	1 Port: 0.23 kg (0.50 lbs) 2 Port: 0.23 kg (0.50 lbs) 4 Port: 0.35 kg (0.77 lbs) 8 Port: 0.55 kg (1.20 lbs)
Dimensions (without mounting tabs)	1 Port: 90 x 64 x 22 (mm), 3.6 x 2.5 x 0.87 (in) 2 Port: 90 x 64 x 22 (mm), 3.6 x 2.5 x 0.87 (in) 4 Port: 112 x 82 x 28 (mm), 4.4 x 3.2 x 1.1 (in) 8 Port: 112 x 156 x 28 (mm), 4.4 x 6.1 x 1.1 (in)
Dimensions with mounting tabs	1 Port: 90 x 89 x 24 (mm), 3.6 x 3.5 x 0.87 (in) 2 Port: 90 x 89 x 24 (mm), 3.6 x 3.5 x 0.87 (in) 4 Port: 112 x 105 x 28 (mm), 4.4 x 4.2 x 1.1 (in) 8 Port: 113 x 179 x 28 (mm), 4.4 x 7.1 x 1.1 (in)
Packaging
Shipping Dimensions	260 x 170 x 70 (mm), 10.2 x 6.7 x 2.8 (in)
Shipping weight	1 Port: 0.49 kg (1.1 lbs) 2 Port: 0.49 kg (1.1 lbs) 4 Port: 0.66 kg (1.5 lbs) 8 Port: 1.30 kg (2.9 lbs)
Regulatory Approvals
Emissions	CFR47 FCC Part 15 Subpart B:2015
	ICES-003:2016 Issue 6:2016
	CISPR 32:2015/EN 55032:2015 (Class A)
	EN55011 (CISPR11)
	CISPR 16-2-3:2010/A2:2014
	EN61000-3-2:2014, Limited for Harmonic Current Emissions
	EN61000-3-3:2013, Limits of Voltage Fluctuations and Flicker
Immunity	CISPR 24:2010/EN 55024:2010
	EN61000-4-2: 2009 Electrostatic Discharge
	EN61000-4-3: 2006/A2:2010: RF Electromagnetic Field Modulated
	EN61000-4-4: 2004 Fast Transients
	EN61000-4-5: 2006 Surge
	EN61000-4-6: 2009 RF Continuous Conducted
	EN61000-4-8: Power-Frequency Magnetic Field
	EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety	IEC 62368-1 and EN 62368-1:2014
Safety	CAN/CSA-C22.2 No. 62368-1-14 and UL 62368-1
Other	Reach, RoHS and WEEE Compliant
	ECCN - 5A992
	HTSUS Number: 8517.62.0020
	Perle Limited Lifetime Warranty

Software Features - IOLAN SDG Device Servers

Serial Port Access
	Connect directly using Telnet / SSH by port and IP address
	Connect with EasyPort menu by Telnet / SSH
	Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu
	Java-free browser access to remote serial console ports via Telnet and SSH
	Ports can be assigned a specific IP address ( aliasing )
	Multisession capability enables multiple users to access ports simultaneously
	Multihost access enables multiple hosts/servers to share serial ports
Accessibility
	In-band ( Ethernet ) and out-of-band ( dial-up modem ) support
	Dynamic DNS enables users to find a console server from anywhere on the Internet
	Domain name control through DHCP option 81
	IPV6 and IPV4 addressing support
Availability
	Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
	SSH v1 and v2
	PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
	SSL Server and SSL client mode capability
	SSL Peer authentication
	IPSec VPN : NAT Traversal, ESP authentication protocol
	SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
	SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
	Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
	Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
	Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
	X.509 Certificate verification: RSA, DSA
	Certificate authority (CA) list
	Local database
	RADIUS Authentication, Authorization and Accounting
	TACACS+ Authentication, Authorization and Accounting
	LDAP, NIS, Kerberos Authentication
	RSA SecureID-agent or via RADIUS Authentication
	SNMP v3 Authentication and Encryption support
	IP Address filtering
	Disable unused daemons
	Active Directory via LDAP
Terminal Server
	Telnet
	SSH v1 and v2
	Rlogin
	Auto session login
	LPD, RCP printer
	MOTD - Message of the day
Serial machine to Ethernet
	Tunnel raw serial data across Ethernet - clear or encrypted
	Raw serial data over TCP/IP
	Raw serial data over UDP
	Serial data control of packetized data
	Share serial ports with multiple hosts/servers
	Virtual modem simulates a modem connection - assign IP address by AT phone number
	Virtual modem data can be sent over the Ethernet link with or without SSL encryption
	TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here
	TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
	RFC 2217 standard for transport of serial data and RS232 control signals
	Customizable or fixed serial baud rates
	Plug-ins allow customer or Perle provided plug-ins for special applications
	Software Development Kit ( SDK ) available
	Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
	ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
	Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
	Sun / Oracle Solaris Break Safe
	Local port buffer viewing - 256K bytes per port
	External port buffering via NFS, encrypted NFS and Syslog
	Event notification
	Manage AC power of external equipment using Perle RPS power management products
	Clustering - central console server enables access ports across multiple console servers
	Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
	Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
Remote Access
Dial, direct serial	PPP, PAP/CHAP, SLIP
	HTTP tunneling enables firewall-safe access to remote serial devices across the internet
Automatic DNS Update	Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details
IPSEC VPN client/servers	Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
	Microsoft IPSEC VPN Client ( native to Windows Vista )
	Cisco routers with IPSEC VPN feature set
	Perle IOLAN SDS/STS and SCS models
OA&M ( Operations, Administration and Management )
	SNMP V3 - read and write, Perle MIB
	Syslog
	Perle Device Manager - Windows based utility for large scale deployments
	Configurable default configuration
	Installation Wizard
	Set a Personalized Factory Default for your IOLANs
Protocols
	IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP

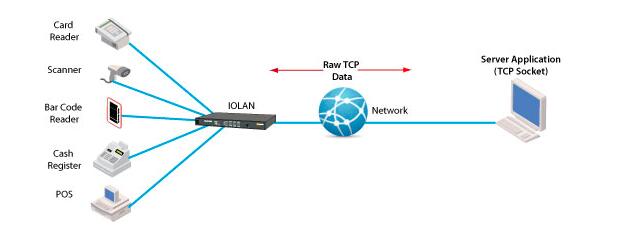

应用方案一：

STG 方案一.jpg

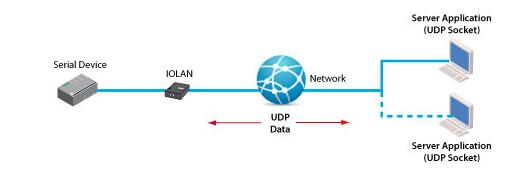

应用方案二：

STG 方案二.jpg

产品订购型号信息：

描述	电源线国别	产品料号
IOLAN SDG1 DB9 Device Server: 1 x DB9M connector with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031834
	UK	04031831
	EU	04031832
	AUS	04031836
	None	04031838
IOLAN SDG1 RJ45 Device Server: 1 x RJ45 connectors with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031824
	UK	04031821
	EU	04031822
	AUS	04031826
	None	04031828
IOLAN SDG1 DB25 Device Server: 1 x DB25F connector with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031844
	UK	04031841
	EU	04031842
	AUS	04031846
	None	04031848
IOLAN SDG2 Device Server: 2 x RJ45 connectors with software selectable RS232/422/485 interfaces, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031814
	UK	04031811
	EU	04031812
	AUS	04031816
	None	04031818
IOLAN SDG4 Device Server: 4 x RJ45 connectors with software selectable RS232/422/485 interfaces, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031854
	UK	04031851
	EU	04031852
	AUS	04031856
	None	04031858
IOLAN SDG8 P Device Server: 8 x RJ45 connector with software selectable RS232/422/485 interfaces, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, 802.3af Power over Ethernet (PoE) compliant PD	USA	04031934
	UK	04031931
	EU	04031932
	AUS	04031936
	None	04031938
