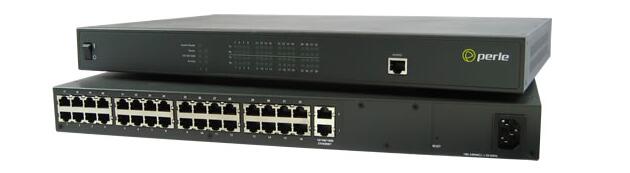

IOLAN SDSC Rack

简介：	8、16或32个RS232/422/485 RJ45端口，双10/100/1000 RJ45以太网，交流或双馈48V直流电源选择
类型：	控制台服务器
品牌：	Perle
型号：	SDS8C、SDS16C、SDS32C、SDS8C DC、SDS16C DC、SDS32C DC

马上咨询

产品详情

产品特点

应用方案

文档下载

立即订购

IOLAN SDSC终端服务器（也用作设备服务器或控制台服务器）是串行到以太网应用产品。

IOLAN SDSC以1U的外形提供高性能，提供了强大的安全性、可靠性和灵活性以及下一代IP（IPv6）技术。它是需要远程串行设备通信、数据捕获或设备监视的应用程序的理想选择。IOLAN SDSC有8、16或32个RJ45端口，非常适合您的串行到以太网应用。IOLAN SDSC上内置的双以太网和冗余路径技术提供了可靠的串行端口访问，使其成为将远程RS232、RS422或RS485设备连接到以太网的可靠解决方案…所有这些都以优佳的性价比实现。

IOLAN SDSC终端服务器适用于：

网络工程师和项目经理需要为基于串行RS232或RS485的设备提供高性能的串行到以太网接口
双以太网接口提供的冗余网络路径非常关键的环境。
在48v直流环境中需要经济高效的RS232/422/485设备连接的站点

为什么IOLAN SDSC终端服务器是优佳选择：

TrueSerial®通过以太网提供真实的串行连接
通用、软件可选RS232/422/485（EIA-232/422/485）串行端口可防止现场机械篡改
高性能400 MHz，750 MIPS，32位处理器，集成硬件加密处理器，实现优佳吞吐量
群集–提供所有带外控制台端口的单一视图。适用于大型数据中心
远程电源开关设备的智能电源循环
新一代IP支持（IPv6）以实现投资保护和网络兼容性
主/备份主机功能允许在主TCP连接断开时自动连接到备用主机
带思科引线的RJ45串行端口，用于普通CAT5“卷制”电缆
EasyPort Web–使用支持java的Internet浏览器访问设备串行控制台端口
FIPS 140-2–加密模块符合美国政府NIST合规性
动态DNS–从Internet上的任何位置轻松进行控制台管理访问
通过Telnet和SSH免费浏览器访问远程串行控制台端口
Ping看门狗探针使客户能够在网络设备无响应的情况下，重启带有Perle RPS电源开关的设备
保修-提供优佳的投资保护

IOLAN SDSC Rack Terminal Server

Serial to Dual Ethernet Terminal Server

8, 16 and 32 software selectable RS232/422/485 serial port interfaces
Dual 10/100/1000 Ethernet with Redundant Path Technology
Advanced security features for data encryption, user authentication and event management
AC and 48v DC model available

Hardware Specifications - IOLAN SDSC Dual Ethernet RS232 / RS485 / RS422 Terminal Server

	IOLAN SDS8C	IOLAN SDS16C	IOLAN SDS32C	IOLAN SDS8C DC	IOLAN SDS16C DC	IOLAN SDS32C DC
	AC Hardware			48v DC Hardware
Processor	MPC8349E, 400 Mhz, 750 MIPS
Memory
RAM MB	64	64	128	64	64	128
Flash MB	16	16	16	16	16	16
Interface Ports
Number of Serial Ports	8	16	32	8	16	32
Serial port interface	Software selectable RS232 / RS485 / RS422 DTE on RJ45 - RS485: full and half duplex
Sun / Solaris	Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial port speeds	50bps to 230Kbps with customizable baud rate support
Data bits	Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data
Parity	Odd, even, Mark, Space, None
Flow Control	Hardware, Software, Both, None
Serial port protection	15Kv Electrostatic Discharge Protection (ESD)
Local console port	RS232 on RJ45 with DB9 adapter (provided)
Network	Dual 10/100/1000-base TX ethernet RJ45
	Software selectable Ethernet speed 10/100/1000, Auto
	Software selectable Half/Full/Auto duplex
Power
Power Supply	USA - IEC320-C13 to NEMA 5-15P line cord UK - IEC320-C13 to BS1363 line cord EU - IEC320-C13 to CEE 7/7 Schuko South Africa - IEC320-C13 to BS546 line cord Australia - IEC320-C13 to AS3112 line cord			Terminal Blocks with screw terminals accommodating 28 - 12 AWG wire sizes. Dual DC Input : A / B
Nominal Input Voltage	110/230v AC			48V DC
Input Voltage Range	100-240v AC			36- 72V DC
AC Input Frequency:	47-63Hz			-
Typical power consumption (Watts)	14.0	15.0	16.0	12.0	13.0	14.0
Indicators
LEDs	Power
	System Ready
	Network Link activity for each ethernet port
	Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output (BTU/HR)	47.77	51.18	54.59	40.94	44.36	47.77
MTBF(hours)	124,366	106,970	87,003	117,887	102,142	83,782
MTBF(hours)	Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Operating Temperature:	0C to 55C, 32F to 131F
Storage Temperature:	-40C to 85C, -40F to 185F
Humidity:	5 to 95% (non condensing) for both storage and operation
Case	SECC Zinc plated sheet metal (1 mm)
Ingress Protection rating:	IP30
Mounting	1U - 19" rack, front and rear mounting hardware included. DIN Rail mounting kit optional
Product Weight and Dimensions
Weight	3.0 Kg, 6.6 lbs	3.1 Kg, 6.8 lbs	3.2 Kg, 7.0 lbs	3.0 Kg, 6.6 lbs	3.1 Kg, 6.8 lbs	3.2 Kg, 7.0 lbs
Dimensions	1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)
Packaging
Shipping Dimensions:	59 x 36 x 9 (cm), 23 x 14 x 3.5 (in)
Shipping weight:	4.2 Kg, 9.2 lbs	4.3 Kg, 9.5 lbs	4.5 Kg, 9.9 lbs	4.0 Kg, 8.8 lbs	4.1 Kg, 9.0 lbs	4.3 Kg, 9.5 lbs
Regulatory Approvals
Emissions:	FCC Part 15, Subpart B, Class A
	CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
	ICES-003, Issue 4, February 2004 (Canada)
	CISPR 32:2015/EN 55032:2015 (Class A)
	EN55011 (CISPR11)
	EN61000-3-2 : 2010, Limits for Harmonic Current Emissions
	EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker
Immunity	CISPR 24:2010/EN 55024:2010
	EN61000-4-2: Electrostatic Discharge
	EN61000-4-3: RF Electromagnetic Field Modulated
	EN61000-4-4: Fast Transients
	EN61000-4-5: Surge
	EN61000-4-6: RF Continuous Conducted
	EN61000-4-8: Power-Frequency Magnetic Field
	EN61000-4-11: Voltage Dips and Voltage Interruptions
Standard Safety Certifications:	IEC 60950-1(ed 2); am1, am2 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Standard Safety Certifications:	CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component)
Other:	Reach, RoHS and WEEE Compliant Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012
	CCATS - G168387
	ECCN - 5A992
	HTSUS Number: 8517.62.0020
	Perle Limited Lifetime Warranty

Software Features - IOLAN SDSC Dual Ethernet RS232 / RS485 / RS422 Terminal Server

Serial Port Access
	Connect directly using Telnet / SSH by port and IP address
	Connect with EasyPort menu by Telnet / SSH
	Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu
	Java-free browser access to remote serial console ports via Telnet and SSH
	Ports can be assigned a specific IP address ( aliasing )
	Multisession capability enables multiple users to access ports simultaneously *
	Multihost access enables multiple hosts/servers to share serial ports
Accessibility
	In-band ( Ethernet ) and out-of-band ( dial-up modem ) support
	Dynamic DNS enables users to find a console server from anywhere on the Internet
	Domain name control through DHCP option 81
	IPV6 and IPV4 addressing support
Availability
	Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
	SSH v1 and v2
	PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
	SSL Server and SSL client mode capability
	SSL Peer authentication
	IPSec VPN : NAT Traversal, ESP authentication protocol
	SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
	SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
	Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
	Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
	Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
	X.509 Certificate verification: RSA, DSA
	Certificate authority (CA) list
	Local database
	RADIUS Authentication, Authorization and Accounting
	TACACS+ Authentication, Authorization and Accounting
	LDAP, NIS, Kerberos Authentication
	RSA SecureID-agent or via RADIUS Authentication
	SNMP v3 Authentication and Encryption support
	IP Address filtering
	Disable unused daemons
	Active Directory via LDAP
Terminal Server
	Telnet
	SSH v1 and v2
	Rlogin
	Auto session login
	LPD, RCP printer
	MOTD - Message of the day
Serial machine to Ethernet
	Tunnel raw serial data across Ethernet - clear or encrypted
	Raw serial data over TCP/IP
	Raw serial data over UDP
	Serial data control of packetized data
	Share serial ports with multiple hosts/servers
	Virtual modem simulates a modem connection - assign IP address by AT phone number
	Virtual modem data can be sent over the Ethernet link with or without SSL encryption
	TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here
	TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
	RFC 2217 standard for transport of serial data and RS232 control signals
	Customizable or fixed serial baud rates
	Plug-ins allow customer or Perle provided plug-ins for special applications
	Software Development Kit ( SDK ) available
	Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
	ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
	Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
	Sun / Oracle Solaris Break Safe
	Local port buffer viewing - 256K bytes per port
	External port buffering via NFS, encrypted NFS and Syslog
	Event notification
	Manage AC power of external equipment using Perle RPS power management products
	Clustering - central console server enables access ports across multiple console servers
	Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
	Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
Remote Access
Dial, direct serial	PPP, PAP/CHAP, SLIP
	HTTP tunneling enables firewall-safe access to remote serial devices across the internet
Automatic DNS Update	Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details
IPSEC VPN client/servers	Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
	Microsoft IPSEC VPN Client ( native to Windows Vista )
	Cisco routers with IPSEC VPN feature set
	Perle IOLAN SDS/STS and SCS models
OA&M ( Operations, Administration and Management )
	SNMP V3 - read and write, Perle MIB
	Syslog
	Perle Device Manager - Windows based utility for large scale deployments
	Configurable default configuration
	Installation Wizard
	Set a Personalized Factory Default for your IOLANs
Protocols
	IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP

应用方案一：

STG 方案一.jpg

应用方案二：

STG 方案二.jpg

产品订购信息：

AC电源供电：

描述	电源线国别	产品料号
IOLAN SDS8C Secure Device Server ( Terminal Server ) - 8 x RJ45 connector with Sun/Cisco pinout, 1U rack mount, software selectable RS232/422/485 interface, dual 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031604
	UK	04031601
	EU	04031602
	SA	04031605
	AUS	04031606
IOLAN SDS16C Secure Device Server ( Terminal Server ) - 16 x RJ45 connector with Sun/Cisco pinout, 1U rack mount, software selectable RS232/422/485 interface, dual 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031614
	UK	04031611
	EU	04031612
	SA	04031615
	AUS	04031616
IOLAN SDS32C Secure Device Server ( Terminal Server ) - 32 x RJ45 connector with Sun/Cisco pinout, 1U rack mount, software selectable RS232/422/485 interface, dual 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031624
	UK	04031621
	EU	04031622
	SA	04031625
	AUS	04031626

DC电源供电：

描述	电源线国别	产品料号
IOLAN SDS8C DC Secure Device Server ( Terminal Server ) - 8 x RJ45 connector with Sun/Cisco pinout, dual feed 48v DC power, 1U rack mount, software selectable RS232/422/485 interface, dual 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	None	04031630
IOLAN SDS16C DC Secure Device Server ( Terminal Server ) - 16 x RJ45 connector with Sun/Cisco pinout, dual feed 48v DC power, 1U rack mount, software selectable RS232/422/485 interface, dual 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	None	04031640
IOLAN SDS32C DC Secure Device Server ( Terminal Server ) - 32 x RJ45 connector with Sun/Cisco pinout, dual feed 48v DC power, 1U rack mount, software selectable RS232/422/485 interface, dual 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	None	04031650
