Perle IOLAN SCG WM控制台服务器为数据中心管理器提供对任何带有RS232 RJ45或USB控制台端口的设备的安全远程控制台管理。集成的V.92调制解调器确保您有一个备用的拨入方法来维护对关键网络设备的访问。借助可扩展的模块化硬件平台、高级安全功能和内置冗余功能，您的IT专业人员和网络运营中心（NOC）人员将拥有从世界各地轻松执行安全远程数据中心管理和IT资产带外管理所需的一切。这种独特的设计为用户提供了一个灵活、经济高效的解决方案，可以通过无线局域网网络从关键设备传输数据。
模块化硬件平台支持对所有IT资产的控制台管理 模块化IOLAN SCG WM Console服务器支持RS232 RJ45和USB连接到设备上的控制台端口，如Cisco路由器、交换机、防火墙、服务器（Solaris、Windows、Unix和Linux）PBX、网络存储设备和安全设备，通过无线LAN IP网络或集成V.92调制解调器拨号。几十年来，高度可靠的RS232 RJ45端口一直是控制台管理端口访问的标准。现在，思科、Juniper、戴尔、HPE、华为等IT设备制造商正在提供带有USB控制台管理端口的设备。IOLAN SCG WM的模块化设计在一个控制台管理解决方案中为两种类型的管理端口提供支持。接口模块允许用户交换、升级和扩展到16端口USB 3.0或RS-232 RJ45接口模块卡的任何“混合匹配”组合。您可以购买完全填充或部分填充的IOLAN SCG WM Console服务器，这样您就可以随着需求的增长或变化而交换和添加模块。

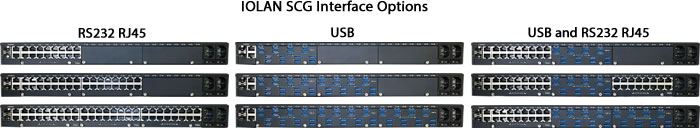

IOLAN SCG接口选项 Perle IOLAN SCG能够支持多达50个高密度USB 3.0端口的工业解决方案，这些端口与所有制造商的USB解决方案兼容。 RS232 RJ45端口是软件可配置的，可使用直通或轧制电缆连接思科设备。此外，还可以为需要此额外信号的第三方设备配置DCD引脚。这意味着Perle IOLAN SCG支持的串行设备比市场上其他控制台服务器都多。
高级网络安全功能、身份验证和数据加密 IT管理员需要确保网络数据传输以及对IT设备上远程控制台管理端口的所有访问都是安全的。使用iolanscg控制台服务器时，数据管理信息通过标准加密工具（如secureshell（SSH）和安全套接字层（SSL）来保护。对诸如RADIUS、TACACS+、LDAP、Kerberos、NIS和RSA Security的SecurID令牌等身份验证方案的支持确保对设备和数据的访问仅限于授权用户。
通过使用加密技术，IOLAN SCG控制台服务器在通过企业内部网或公共互联网发送之前保护敏感和机密数据。为了与对等加密设备兼容，完全支持所有主要加密密码，如AES、3DES、RC4、RC2和CAST128。
IPSec标准被认为是通过Internet与远程专用网络进行通信的安全的方法，它在OSI模型的网络层为IP包提供了可靠的身份验证和加密。作为一个标准，它是网络中多供应商互操作的理想选择，它提供了灵活性，并且能够为特定应用程序匹配正确的解决方案。
容错网络访问和正常运行时间的冗余特性 每个IOLAN SCG WM Console服务器都为带外访问提供了多种集成选择，以确保您始终可以访问关键网络设备。内置WiFi网络通过双频无线天线接入，提供优佳无线性能、信号可靠性和范围。它支持广泛的无线局域网技术（IEEE 802.11@2.4Ghz/5Ghz）和高达150Mbps的快速无线速度。
板载RJ11 V.92调制解调器连接通过POTS网络提供安全可靠的带外连接。这意味着，如果IP网络访问变得不可用，IOLAN SCG WM可以作为必要的备用访问方法来排除和重新启动关键网络设备。
最后，IOLAN SCG具有冗余的铜缆和光纤以太网接入支持，支持绑定和IP过滤。两个10/100/1000Base-T铜质端口和两个100/1000Base-X SFP光纤端口的任何双重组合都可以用来满足您独特的网络访问要求。这种设计为用户提供了一个灵活、经济高效的解决方案，可以通过基于铜缆或光纤的以太网网络传输关键任务设备的数据。当连接到光纤网络时，可插拔SFP端口允许使用Perle、Cisco或其他符合MSA的SFP制造商提供的SFP光收发器进行灵活的网络配置。这种独特的容错设计，采用冗余路径技术，通过主备或双网络访问模式确保控制台管理端口的可用性。
防静电放电和电涌的保护在每个控制台端口上配备了坚固的15Kv ESD保护电路。
此外，双交流电源可确保您的IOLAN在主电源发生故障时保持正常运行。
易于设置、配置和前面板显示和键盘 IOLAN SCG W非常容易在网络上安装和运行。前面板显示器和键盘允许用户直接通过显示器分配IP地址，而无需直接连接PC。然后，可以使用各种配置程序选项（包括Perle Easy Config Wizard、Perle Device Manager、WebManager、CLI等）在网络上配置单元的其余部分。
前面板显示器也是一种方便的方式来监测和排除RS232，USB和以太网端口的活动。
对于大规模推出，Micro-SD卡插槽可用于备份和恢复配置文件以及加载新固件。Perle致力于消除IP网络上所有IOLAN的配置麻烦。
灵活可靠的串行以太网连接 IOLAN SCG控制台服务器是将基于串行的COM端口、UDP或TCP套接字的应用程序连接到远程设备的理想选择。Perle的TruePort re director为基于串行的应用程序提供固定的TTY或COM端口，以加密或明文模式与Perle IOLAN的远程设备进行通信。
TrueSerial®数据包技术通过以太网提供真实的串行连接，以实现串行协议的完整性。
您还可以通过IP网络在设备之间建立串行数据隧道。
通过选择Perle IOLAN SCG控制台服务器，您可以放心，几乎任何具有串行COM端口的设备都将与您所需的应用程序协同工作，就像直接连接时一样。如果Perle IOLAN设备服务器不支持开箱即用，Perle将使其与客户可安装的“设备插件”一起工作。
IP技术 IOLAN SCG支持IPv6，为企业提供投资保护，以满足这一快速增长的标准。
对与IPv4寻址方案兼容的IPv6的需求是由对更多IP地址的需求驱动的。随着先进蜂窝网络的实施和推广，需要一种稳健的方法来处理互联网上大量涌入的新IP可寻址设备。事实上，美国国防部已经规定所有购买的设备都要兼容IPv6。此外，所有主要的操作系统，如Windows、Linux、Unix和Solaris，以及路由器，都内置了对IPv6的支持。
因此，终端用户和集成商选择采用IPv6标准的网络设备非常重要。IOLAN系列已经内置了对IPv6的支持，是串行到以太网技术的优佳选择。
使IOLAN SCSG控制台服务器成为较佳选择的更多原因： 作为一个无线客户端代理，为串行和以太网设备提供到中央访问点的无线连接 可以通过无线提供直接的串行到串行对等连接 软件接入点（SoftAP），可接6个无线客户端。 FIPS 140-2–加密模块符合美国政府NIST的要求。 群集–提供所有带外控制台端口的单一视图。适用于大型数据中心。 主/备份主机功能允许在主TCP连接断开时自动连接到备用主机。 EasyPort Web–使用支持java的Internet浏览器访问设备串行控制台端口。 通过Telnet和SSH访问远程串行控制台端口。 动态DNS–从Internet上的任何位置轻松进行控制台管理访问。 远程电源开关设备的智能电源循环。 Ping看门狗探针使客户能够在网络设备无响应的情况下，重启带有Perle RPS电源开关的设备
保修 所有Perle IOLAN SCG型号都有业内较好的服务和支持，包括Perle独特的保修。自1976年以来，Perle一直为客户提供性能、灵活性和质量高的网络产品。随着Perle IOLAN SCG部署和升级新的服务和设备，同时尽量减少资本支出，这很容易。
IOLAN SCG WM Secure Console Server with integrated Modem and WiFi AccessIn-Band and Out-of-Band IT Infrastructure Management18, 34 or 50 Console Management Ports Modular design supports RS232 RJ45 and USB 3.0 Interfaces WLAN (Wi-Fi ®): Dual band radio supporting IEEE 802.11 @2.4Ghz/5Ghz Built in v.92 modem for out of band access Dual Network Connection with 10/100/1000Base-T Copper and 100/1000Base-X Fiber SFP Ports Advanced AAA security and SSH/SSL encryption to meet all data center compliance policies Dual AC Power for Fault-tolerant uptime
Hardware Specifications - IOLAN SCG WM Secure Console Server| Processor | 1750 MIPS, 500 MHz core 32 bit ARM processor, with integrated hardware encryption processor | | Memory |
|---|
| RAM MB | 1000 | | Flash MB | 4000 | | Interface Ports |
|---|
| Integrated Device Management Ports | 2 x USB 3.0 | | Modular Device Management Ports | IOLAN SCG18:16 x RS232 RJ45 or 16 x USB 3.0
| | IOLAN SCG34: | | IOLAN SCG50: | | Each chassis can be expanded or modified with an optional 16-port Interface card with either RS232 RJ45 ports or USB 3.0 ports | | Sun / Solaris | Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime | | Serial Port Speeds | 50bps to 230Kbps with customizable baud rate support | | Data Bits | Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data | | Parity | Odd, Even, Mark, Space, None | | Flow Control | Hardware, Software, Both, None | | Serial Port Protection | 15Kv Electrostatic Discharge Protection (ESD) | | Local Console Ports | 1 x RS232 RJ45
1 x Micro USB with DB9 adapter | | Network | 2 x 10/100/1000Base-T RJ45 Copper
2 x 100/1000Base-X Fiber SFP Ports
Note: Any combination of two network ports can be used.
Software selectable Ethernet speed 10/100/1000, Auto
Software selectable Half/Full/Auto duplex | | Micro SD Card slot | Yes | | Ethernet Isolation | 1.5Kv Magnetic Isolation | | Integrated Modem | Integrated V.92/V.90 modem with RJ11 jack | | Integrated Wireless Access |
|---|
| WLAN (Wi-Fi ®) | IEEE 802.11 a,b,g,n,i | | Wireless Topology | Infrastructure (AP) and Peer to Peer- (SoftAP) modes | | Wireless Radio | Dual-Band Radio ; 2.4GHz and 5GHz 20, 40Mhz SISO 2.4-GHz | | Wireless Data Rates | 802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps (40Mhz channel @ 400ns Short GI)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps | | Operational Frequency Range (MHz) | 2412 to 2484 MHz
4910 to 5825 MHz | | Modulation | DSSS, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM | | Wireless Receiver Sensitivity in dBm (2.4Ghz SISO) | 802.11b/g (20 MHz channel)
1 Mbps: -95.0
2 Mbps: -92.0
5.5 Mbps: -89.2
6 Mbps: -91.0
9 Mbps: -89.0
11 Mbps: -86.3
12 Mbps: -88.0
18 Mbps: -85.5
24 Mbps: -82.5
36 Mbps: -79.0
48 Mbps: -74.0
54 Mbps: -72.7
802.11n (20 MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -89.3
14.4 Mbps (MCS1): -86.5
21.7 Mbps (MCS2): -84.5
28.9 Mbps (MCS3): -81.5
43.3 Mbps (MCS4): -78.0
57.8 Mbps (MCS5): -73.5
65.0 Mbps (MCS6): - 71.5
72.2 Mbps (MCS7): -70.0
802.11n (40 MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -89.3
30.0 Mbps (MCS1): -86.5
45.0 Mbps (MCS2): -84.5
60.0 Mbps (MCS3): -81.5
90.0 Mbps (MCS4): -78.0
120.0 Mbps (MCS5): -73.5
135.0 Mbps (MCS6): - 71.5
150.0 Mbps (MCS7): -70.0 | | Wireless Transmit Power in dBm (2.4Ghz SISO) | (20 MHz channel)
1 Mbps: 16.0
2 Mbps: 16.0
5.5 Mbps: 16.0
6 Mbps: 16.5
9 Mbps: 16.5
11 Mbps: 16.0
12 Mbps: 16.5
18 Mbps: 16.5
24 Mbps: 16.5
36 Mbps: 15.2
48 Mbps: 14.3
54 Mbps: 13.5
MCS0: 16.0
MCS1: 16.0
MCS2: 16.0
MCS3: 16.0
MCS4: 15.2
MCS5: 14.3
MCS6: 13.5
MCS7: 12.6
(40 MHz channel)
MCS0: 14.0
MCS7: 11.8 | | Wireless Receiver Sensitivity in dBm (5Ghz SISO) | 802.11a
6 Mbps: -92.5
9 Mbps: -90.5
12 Mbps: -90.0
18 Mbps: -87.5
24 Mbps: -84.5
36 Mbps: -81.0
48 Mbps: -76.5
54 Mbps: -74.6
802.11n (20MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -91.4
14.4 Mbps (MCS1): -88.0
21.7 Mbps (MCS2): -86.0
28.9 Mbps (MCS3): -83.0
43.3 Mbps (MCS4): -79.8
57.8 Mbps (MCS5): -75.5
65.0 Mbps (MCS6): - 74.0
72.2 Mbps (MCS7): -72.4
802.11n (40MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -88.5
150.0 Mbps (MCS7): -69.3 | | Wireless Transmit Power in dBm (5Ghz SISO) | 802.11a
6 Mbps: 18.0
9 Mbps: 18.0
12 Mbps: 18.0
18 Mbps: 18.0
24 Mbps: 17.4
36 Mbps: 16.5
48 Mbps: 15.8
54 Mbps: 14.5
802.11n (HT20) @ 400ns GI
7.2 Mbps (MCS0): 18.0
14.4 Mbps (MCS1): 18.0
21.7 Mbps (MCS2): 18.0
28.9 Mbps (MCS3): 18.0
43.3 Mbps (MCS4): 16.5
57.8 Mbps (MCS5): 15.8
65.0 Mbps (MCS6): 14.5
72.2 Mbps (MCS7): 12.0
802.11n (HT40) @ 400ns GI
15.0 Mbps (MCS0): 16.5
150.0 Mbps (MCS7): 12.0 | | Short Guard Interval (SGI) | 800ns and 400ns (Short Guard Interval) | | Wireless Antenna | Dual-band 2.4/5.0 GHz, Omni-directional, Dipole antenna, 50 Ohm, 2 dBi, black with RP-SMA / RSMA finger tighten connector. Same antenna can be used as Main and/or Diversity for increased wireless performance, signal reliability, and extended range. | | Maximal Ratio Combining (MRC), Rx Diversity | 2.4 GHz MRC support for up to 1.4 Extended Range and 5 GHz Diversity Capable | | Wireless Security | WEP, WPA-PSK, WPA2-PSK ° Enterprise (EAP, PEAP, LEAP), 802.11i (includes hardware-accelerated Advanced Encryption Standard [AES]), 802.1x supplicant | | Fast Wireless Roaming | Ideal for mobile applications, the IOLAN can transparently roam between APs (Access Points) that share the same ESS (Extended Service Set) | | WiFi Protected Setup (WPS V2) | A plug and play set up feature where the IOLAN can easily connect to a WPS capable central access pointor SoftAP compliant device supporting WPS | | Power |
|---|
| Power Supply | Dual AC power supply
USA Models: IEC320-C13 to NEMA 5-15P line cord
UK Models: IEC320-C13 to BS1363 line cord
EU Models: IEC320-C13 to CEE 7/7 Schuko
South Africa Models: IEC320-C13 to BS546 line cord
Australia Models: IEC320-C13 to AS3112 line cord | | Nominal Input Voltage | 110/230v AC | | Input Voltage Range | 100-240v AC | | AC Input Frequency | 47-63Hz | | Current Consumption @ 100v (Amps) | IOLAN SCG18: 0.19
IOLAN SCG34: 0.25
IOLAN SCG50: 0.31 | | Current Consumption @ 240v (Amps) | IOLAN SCG18: 0.08
IOLAN SCG34: 0.11
IOLAN SCG50: 0.13 | | Typical Power Consumption (Watts) | 18 Watts
Note: USB cards can use an additional power of 2.5 Watts per port up to a max of 8 Watts total | | Power Line Protection | Fast transients: 1 KV (EN61000-4-4 Criteria B)
Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential and common modes) | | Front Panel LCD Display and Keyboard Indicators |
|---|
| Network Link Activity
Serial Tx/Rx data per port | | LED Indicators |
|---|
| System Ready
Network Link Activity | | Environmental Specifications |
|---|
| Heat Output (BTU/HR) | IOLAN SCG18: 61.42
IOLAN SCG34: 83.60
IOLAN SCG50: 105.77 | | MTBF ( Hours ) | 79,478 Calculation model based on MIL-HDBK-217-FN2 @ 30 °C | | Operating Temperature | 0°C to 55°C, 32°F to 131°F | | Storage Temperature | -40°C to 85°C, -40°F to 185°F | | Humidity | 5 to 95% (non condensing) for both storage and operation. | | Case | SECC Zinc plated sheet metal (1 mm) | | Ingress Protection Rating | IP30 | | Mounting | 1U - 19" rack, front and rear mounting hardware included | | Product Weight and Dimensions |
|---|
| Product Weight | IOLAN SCG18: 3.29 kg / 7.25 lbs
IOLAN SCG34: 3.46 kg / 7.63 lbs
IOLAN SCG50: 3.63 kg / 8 lbs | | Dimensions | 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) | | Packaging |
|---|
| Shipping Dimensions | 59 x 36 x 9cm | | Shipping Weight | IOLAN SCG18: 4.23 kg / 9.33 lbs
IOLAN SCG34: 4.40 kg / 9.70 lbs
IOLAN SCG50: 4.57 kg / 10.07 lbs | | Regulatory Approvals |
|---|
| Emissions | FCC 47 Part 15 Subpart B Class A
ICES-003 (Canada)
EN55011 (CISPR11)
EN55032 (CISPR32)
EN61000-3-2 Limits for Harmonic Current Emissions
EN61000-3-3 Limits of Voltage Fluctuations and Flicker
| | Immunity | EN55024
EN 61000-4-2 (ESD): Contact:
EN 61000-4-3 (RS):
EN 61000-4-4 (EFT):
EN 61000-4-5 (Surge):
EN 61000-4-6 (CS):
EN 61000-4-8 (PFMF)
EN 61000-4-11
| | Safety | UL/ULC/EN 62368-1 (previously 60950-1)
CAN/CSA C22.2 No. 62368-1-15 | | Wireless Regulatory Domain | FCC/ICES
ETSI
TELEC
Users are responsible for verifying approval for use in their individual countries. | | Radio Approvals | FCC Part 15.247 Subpart C (2.4 Ghz)
FCC Part 15.407 Subpart E (5 Ghz)
RSS-210 (Canada), RSS-Gen Issue 2 (Canada), ICES-003 Issue 4
ETSI EN 301 489-1 (V1.9.2)
ETSI EN 301 489-17 (V2.2.1)
ETSI EN 300 328 (V1.8.1)
ETSI EN 301 893 (V1.7.1) | | Frequency Bands | FCC / ICES
2.412 to 2.462 GHz; 11 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz, 8 channels (excluding 5.600 to 5.640 GHz)
5.745 to 5.825 GHz; 5 channels
ETSI
2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz; 8 channels (excluding 5.600 to 5.640 GHz)
MIC ( formally TELEC )
2.412 to 2.472 GHz; 13 channels
4.920 to 4.980 GHz; 4 channels
5.030 to 5.091 GHz; 3 channels
5.180 to 5.240 GHz; 8 channels
5.500 to 5.700 GHz; 11 channels | | Other | Reach, RoHS and WEEE Compliant
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8517.62.0020
Perle Limited Lifetime warranty
|
| IOLAN RJ45 Serial Connector Pinout - DCE mode (Straight-through) |
|---|
 RJ45 Socket
| Pinout | Direction | EIA-232 |
|---|
| 1 | in | CTS | | 2 | in | DSR | | 3 | in | RxD | | 4 |
| GND | | 5 |
| not used | | 6 | out | TxD | | 7 | out | DTR | | 8 | out | RTS | Optional Perle adapters for use with straight thru CAT5 cabling |
Software Features - IOLAN SCG WM Secure Console Server| Serial Port Access |
|---|
| Connect directly using Telnet / SSH by port and IP address | | Connect with EasyPort menu by Telnet / SSH | | Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu | | Java-free browser access to remote serial console ports via Telnet and SSH | | Ports can be assigned a specific IP address ( aliasing ) | | Multisession capability enables multiple users to access ports simultaneously | | Multihost access enables multiple hosts/servers to share serial ports | | Topology Support |
|---|
| Serial to WLAN | | Serial to Ethernet | | Ethernet to WLAN | | Infrastructure ( to Access Point ) and secure peer to peer using SoftAP ( vs legacy “Ad-Hoc” ) | | Accessibility |
|---|
| In-band and out-of-band Ethernet via RJ45 copper (10/100/1000 Base-T) and SFP fiber (100/1000Base-X) | In-band and out-of-band via integrated IEEE 802.11 a,b,g,n,i WLAN (Wi-Fi ®)
Out-of-band dial-up via integrated V.92 modem | | Easy setup with Front Panel Display and Keyboard | | Dynamic DNS enables users to find a console server from anywhere on the Internet | | Domain name control through DHCP option 81 | | IPV6 and IPV4 addressing support | | Availability |
|---|
| Primary/Backup host functionality enables automatic connections to alternate host(s) | | Security |
|---|
| SSH v1 and v2 | | PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0 | | SSL Server and SSL client mode capability | | SSL Peer authentication | | IPSec VPN : NAT Traversal, ESP authentication protocol | | SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305 | | SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384 | | Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2) | | Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96 | | Key exchange: RSA, EDH-RSA, EDH-DSS, ADH | | X.509 Certificate verification: RSA, DSA | | Certificate authority (CA) list | | Wireless LAN : WPA-PSK, WPA2-PSK & Enterprise ( EAP, PEAP, LEAP ), WEP, IEEE 802.11i, IEEE 802.1x supplicant | | Local database | | RADIUS Authentication, Authorization and Accounting | | TACACS+ Authentication, Authorization and Accounting | | LDAP, NIS, Kerberos Authentication | | RSA SecureID-agent or via RADIUS Authentication | | SNMP v3 Authentication and Encryption support | | IP Address filtering | | Disable unused daemons | | Active Directory via LDAP | | Terminal Server |
|---|
| Telnet | | SSH v1 and v2 | | Rlogin | | Auto session login | | LPD, RCP printer | | MOTD - Message of the day | | Serial machine to Ethernet |
|---|
| Tunnel raw serial data across Ethernet - clear or encrypted | | Raw serial data over TCP/IP | | Raw serial data over UDP | | Serial data control of packetized data | | Share serial ports with multiple hosts/servers | | Virtual modem simulates a modem connection - assign IP address by AT phone number | | Virtual modem data can be sent over the Ethernet link with or without SSL encryption | | TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO HP UX, NCR UNIX and AIX. Perle supports the most comprehensive driver set in the industry. For a complete list of all the latest drivers click here | | TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity | | RFC 2217 standard for transport of serial data and RS232 control signals | | Customizable or fixed serial baud rates | | Plug-ins allow customer or Perle provided plug-ins for special applications | | Software Development Kit ( SDK ) available | | Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101 | | ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP | | Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port | | Console Management |
|---|
| Sun / Oracle Solaris Break Safe | | Local port buffer viewing - 256K bytes per port | | External port buffering via NFS, encrypted NFS and Syslog | | Event notification | | Manage AC power of external equipment using Perle RPS power management products | | Clustering - central console server enables access ports across multiple console servers | | Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console | | Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear | | Remote Access |
|---|
| Dial, direct serial | PPP, PAP/CHAP, SLIP |
| HTTP tunneling enables firewall-safe access to remote serial devices across the internet | | Automatic DNS Update | Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details | | IPSEC VPN client/servers | Microsoft L2TP/IPSEC VPN client ( native to Windows XP) | | Microsoft IPSEC VPN Client ( native to Windows Vista ) | | Cisco routers with IPSEC VPN feature set | | Perle IOLAN SDS, SDG, STS, STG, SCS and SCG models | | OA&M ( Operations, Administration and Management ) |
|---|
| WiFi Protected Setup ( WPS ) | | SNMP V3 - read and write, Perle MIB | | Syslog | | Perle Device Manager - Windows based utility for large scale deployments | | Configurable default configuration | | Installation Wizard | | Set a Personalized Factory Default for your IOLANs | | Protocols |
|---|
| IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP |
| Data Center Console Management |
|---|
 |

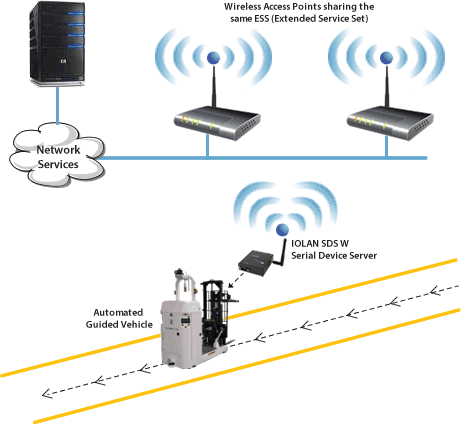

| Seamless Wireless Roaming |
|---|
Serial devices can roam IOLAN SDS W units installed on mobile devices, such as fork lifts with a serial interface, can maintain a continuous connection to network services that are part of Wireless Access Point infrastructure that shares the same ESS ( Extended Service Set ).
| | TCP |
|---|

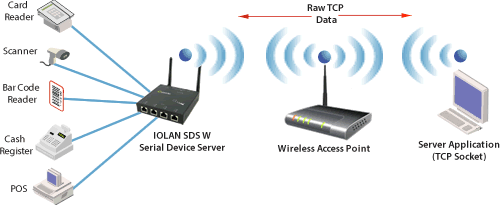

Using RAW TCP Sockets over Wireless LAN A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from the Perle IOLAN W serial-Ethernet adapter.  | | UDP |
|---|

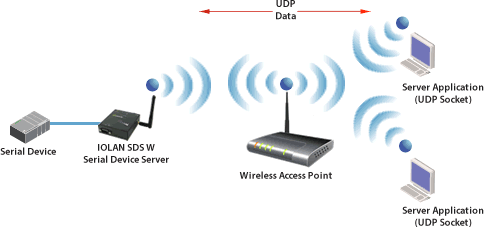

Using Raw UDP Sockets over Wireless LAN For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.  | | Console Server |
|---|
Console Management over Wireless LAN For access to remote console ports on routers, switches, etc. Perle IOLAN’s enable administrators secure access to these RS232 ports via in-band Reverse Telnet / SSH over wireless LANs.  | | COM/TTY |
|---|

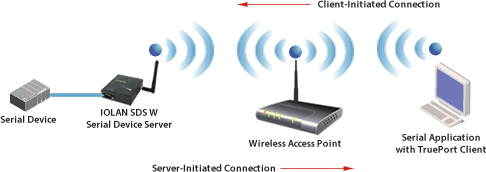

Connect Serial-based Applications over Wireless LAN with a COM/TTY Port Driver Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.  | | Serial Tunneling over Wireless |
|---|

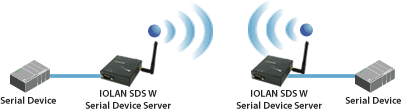

Serial Tunneling between two Serial Devices over Wireless Peer to Peer Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling. Typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client.  |
| TCP |
|---|

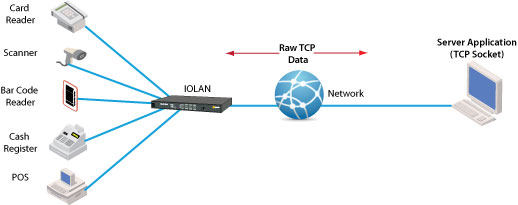

Using RAW TCP Sockets A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from thePerle IOLAN serial-Ethernet adapter.  | | UDP |
|---|
Using Raw UDP Sockets For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.  | | Console Server |
|---|
Console Management For access to remote console ports on routers, switches,etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet / SSH or out of band with dial-up modems. Perle IOLAN models with integrated modems are available.  | | COM/TTY |
|---|

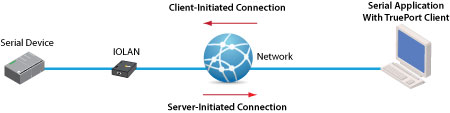

Connect Serial-based Applications with a COM/TTY Port Driver Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.  | | Tunneling |
|---|
Serial Tunneling between two Serial Devices Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client).  | | Virtual Modem |
|---|
Virtual Modem Enables the serial-Ethernet adapter to simulate a modem connection. When connected to the IOLAN and initiates a modem connection, the IOLAN starts up a TCP connection to another IOLAN serial-Ethernet adapter configured with a Virtual Modem serial port or to a host running a TCP application.  |
产品订购信息：
| 图片 | 描述 | 电源线国别 | 产品料号 |
|---|
 | IOLAN SCG18 R-WM Console Server: 16 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 2 x USB 3.0 (Type-A) Console Management Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,integrated RJ45 V.92 modem, Micro SD Card Slot, Expandable using IOLAN G16 RS232 Card and IOLAN G16 USB Card, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power | USA | 04032804 | | UK | 04032801 | | EU | 04032802 | | SA | 04032805 | | AUS | 04032806 | | None | 04032808 |  | IOLAN SCG18 U-WM Console Server: 18 x USB 3.0 (Type-A) Console Management Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,integrated RJ45 V.92 modem, Micro SD Card Slot, Expandable using IOLAN G16 RS232 Card and IOLAN G16 USB Card, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power | USA | 04033164 | | UK | 04033161 | | EU | 04033162 | | SA | 04033165 | | AUS | 04033166 | | None | 04033168 |  | IOLAN SCG34 R-WM Console Server: 32 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 2 x USB 3.0 (Type-A) Console Management Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,integrated RJ45 V.92 modem, Micro SD Card Slot, Expandable using IOLAN G16 RS232 Card and IOLAN G16 USB Card, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power | USA | 04032924 | | UK | 04032921 | | EU | 04032922 | | SA | 04032925 | | AUS | 04032926 | | None | 04032928 |  | IOLAN SCG34 U-WM Console Server: 34 x USB 3.0 (Type-A) Console Management Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,integrated RJ45 V.92 modem, Micro SD Card Slot, Expandable using IOLAN G16 RS232 Card and IOLAN G16 USB Card, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power | USA | 04033284 | | UK | 04033281 | | EU | 04033282 | | SA | 04033285 | | AUS | 04033286 | | None | 04033288 | | IOLAN SCG34 RU-WM Console Server: 16 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 18 x USB 3.0 (Type-A) Console Management Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,integrated RJ45 V.92 modem, Micro SD Card Slot, Expandable using IOLAN G16 RS232 Card and IOLAN G16 USB Card, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power | USA | 04033524 | | UK | 04033521 | | EU | 04033522 | | SA | 04033525 | | AUS | 04033526 | | None | 04033528 | | IOLAN SCG50 R-WM Console Server: 48 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 2 x USB 3.0 (Type-A) Console Management Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,integrated RJ45 V.92 modem, Micro SD Card Slot, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power | USA | 04033044 | | UK | 04033041 | | EU | 04033042 | | SA | 04033045 | | AUS | 04033046 | | None | 04033048 | | IOLAN SCG50 U-WM Console Server: 50 x USB 3.0 (Type-A) Console Management Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,integrated RJ45 V.92 modem, Micro SD Card Slot, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power | USA | 04033404 | | UK | 04033401 | | EU | 04033402 | | SA | 04033405 | | AUS | 04033406 | | None | 04033408 | | IOLAN SCG50 RRU-WM Console Server: 32 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 18 x USB 3.0 (Type-A) Console Management Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,integrated RJ45 V.92 modem, Micro SD Card Slot, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power | USA | 04033644 | | UK | 04033641 | | EU | 04033642 | | SA | 04033645 | | AUS | 04033646 | | None | 04033648 | | IOLAN SCG50 RUU-WM Console Server: 16 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 34 x USB 3.0 (Type-A) Console Management Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz,integrated RJ45 V.92 modem, Micro SD Card Slot, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, Dual AC Power | USA | 04033764 | | UK | 04033761 | | EU | 04033762 | | SA | 04033765 | | AUS | 04033766 | | None | 04033768 |
|
RJ45 Socket
