产品详情

管理型工业以太网交换机

简介： IP可管理性，VLAN和弹性管理 紧凑，耐腐蚀的外壳连接到标准DIN导轨 冗余双电源输入12/24/48 VDC 通过RJ45进行带外管理
类型： 工业以太网交换机
品牌： Perle
型号： IDS-205、IDS-206、IDS-305、IDS-306、IDS-409、IDS-710HP
马上咨询
产品详情
产品特点
应用方案
文档下载
立即订购

管理型工业以太网交换机

紧凑型DIN导轨开关


Perle设计用于连接网络环境中承受-40°C到75°C的极端工作温度、振动和冲击的设备，Perle拥有多达516个型号的管理型工业以太网交换机。它们的制造超过了商业开关的规格，具有工业安全认证和危险场所的批准，使其成为工厂和工业自动化、海洋、铁路和智能运输系统（ITSs）、石油和天然气、采矿和户外应用等恶劣环境的理想选择。


Perle IDS管理交换机具有企业级功能、广泛的安全性、QoS和网络集成功能：

  • 支持监控和设备管理的PROFINET和Modbus TCP协议

  • 恢复时间<10ms的环协议MRP（IEC 62439-2）

  • 用于网络冗余的STP/RSTP/MSTP

  • TACACS+和RADIUS身份验证、授权和记帐（AAA）安全服务

  • SSH、SNMPv3和HTTPS安全管理会话

  • 用于微秒精度的IEEE 1588 V1和V2 PTP

  • 通过ieee802.1x认证和端口安全保护用户访问端口

  • 优化网络性能和智能的高级协议：IGMP侦听、LLDP-MED、GVRP、语音VLAN、MSTP、GMRP和IPv6 MLD侦听

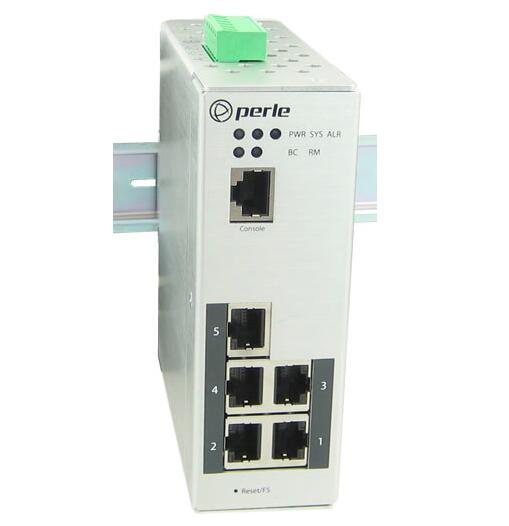

IDS-205 – Managed Industrial Ethernet Switch

5 port Compact DIN Rail Switch

20201219

  • 5 port 10/100/1000Base-T ( RJ45 ) for Gigabit and Fast Ethernet devices

  • IP Manageability, VLAN and resiliency management

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 12/24/48 VDC

  • Out-of-band management via RJ45

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature ( XT Models )



IDS-205F – Managed Industrial Ethernet Switch with Fiber

4 x 10/100/1000Base-T RJ45 and 1 x 100Base-X SC/ST

20201219

  • 4 port 10/100/1000Base-T ( RJ45 ) for Gigabit and Fast Ethernet devices

  • 1 port 100Base-X SC/ST fiber connection

  • IP Manageability, VLAN and resiliency management

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 12/24/48 VDC

  • Out-of-band management via RJ45

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature ( XT Models )



IDS-205G – Managed Industrial Ethernet Switch with Gigabit Fiber

4 x 10/100/1000Base-T RJ45 and 1 x 1000Base-X SC/ST

20201219

  • 4 port 10/100/1000Base-T ( RJ45 ) for Gigabit and Fast Ethernet devices

  • 1 port 1000Base-X SC/ST fiber connection

  • IP Manageability, VLAN and resiliency management

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 12/24/48 VDC

  • Out-of-band management via RJ45

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature ( XT Models )



IDS-206 – Managed Industrial Ethernet Switch

5 x 10/100/1000Base-T RJ45 and 1 x 100/1000Base-X SFP

20201219

  • 5 port 10/100/1000Base-T ( RJ45 ) for Gigabit and Fast Ethernet devices

  • One 100/1000Base-X SFP fiber port (empty)

  • IP Manageability, VLAN and resiliency management

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 12/24/48 VDC

  • Out-of-band management via RJ45

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature ( XT Models )



IDS-305 – Managed Industrial Ethernet Switch

5-port Compact DIN Rail Switch

20201219

  • 5 port 10/100/1000Base-T for Gigabit and Fast Ethernet devices

  • Advanced switching, VLAN, encryption and IEEE 1588 PTP

  • PROFINET and Modbus TCP Protocol Support

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 12/24/48 VDC

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature



IDS-306 – Managed Industrial Ethernet Switch

5 x 10/100/1000Base-T RJ45 and 1 x 100/1000Base-X SFP

20201219

  • 5 port 10/100/1000Base-T for Gigabit and Fast Ethernet devices

  • 100/1000Base-x SFP fiber port for Gigabit or Fast Ethernet fiber connection

  • Advanced switching, VLAN, encryption and IEEE 1588 PTP

  • PROFINET and Modbus TCP Protocol Support

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 12/24/48 VDC, 24 VAC

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature




IDS-409-SFP Managed Industrial Ethernet Switch

9 port Compact DIN Rail Switch

20201219

  • 10/100/1000Base-T ( RJ45 ) ports for Gigabit and Fast Ethernet devices

  • 100/1000Base-X SFP fiber ports (empty)

  • IP Manageability, VLAN and resiliency management

  • Digital inputs for generation of alerts

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 12/24/48 VDC, 24 VAC

  • Out-of-band management via RJ45 or USB serial ports

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature ( XT Models )



IDS-409C Managed Industrial Gigabit Switch with Combo Ports

5 x 10/100/1000Base-T and 4 x 10/100/1000Base-T or 100/1000Base-X SFP Ports

20201219

  • 5 port 10/100/1000Base-T ( RJ45 ) ports for Gigabit and Fast Ethernet devices

  • 4 flexible dual purpose Combo ports: 100/1000Base-X SFP fiber or 10/100/1000Base-T ( RJ45 )

  • IP Manageability, VLAN and resiliency management

  • Digital inputs for generation of alerts

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 12/24/48 VDC, 24 VAC

  • Out-of-band management via RJ45 or USB serial ports

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature ( XT Models )

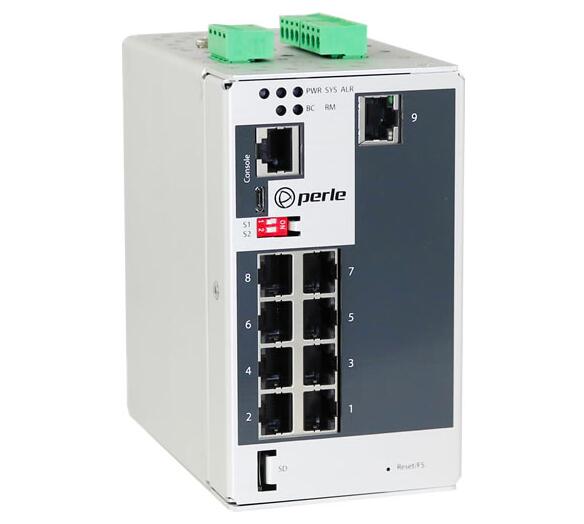

IDS-509 – Managed Industrial Ethernet Switch

9 port Compact DIN Rail Switch

20201219

  • 9 port 10/100/1000Base-T for Gigabit and Fast Ethernet devices

  • Advanced switching, VLAN, encryption and IEEE 1588 PTP

  • Digital inputs for generation of alerts

  • PROFINET and Modbus TCP Protocol Support

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 12/24/48 VDC, 24 VAC

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature

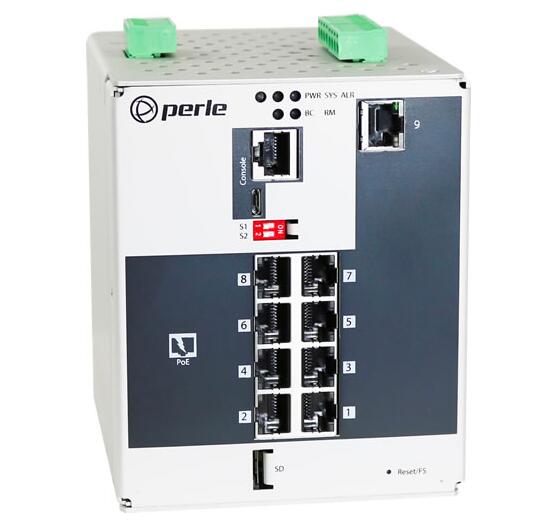

IDS-509CPP Industrial Managed PoE Switch with Fiber

9-port Industrial PoE+ Switch with Combo Port

20201219

  • 5 x 10/100/1000Base-T ports

  • 1 100/1000Base-X SFP slot (empty)

  • 3 dual purpose Combo ports: 100/1000Base-X SFP fiber or 10/100/1000Base-T

  • Advanced switching, VLAN, encryption and IEEE 1588 PTP

  • PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at

  • Digital inputs for generation of alerts

  • PROFINET and Modbus TCP Protocol Support

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 48 VDC

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature

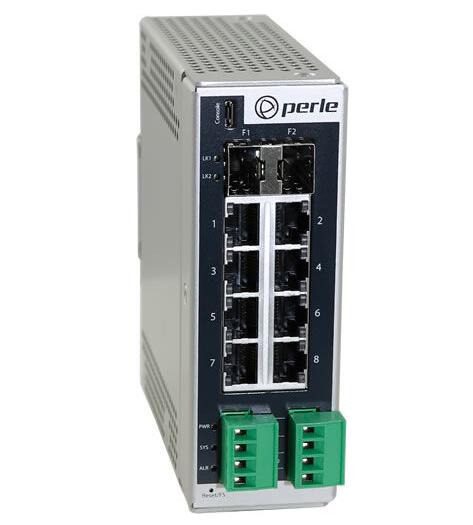

IDS-710HP Managed Industrial Ethernet Switch

10-port PoE (100W) Gigabit Switch

20201219

  • 8 x 10/100/1000Mbps PoE 802.3bt Ethernet Ports with 450W of available power

  • 2 x SFP Slots supporting 1G/2.5G Fiber or 10/100/1000Base-T

  • PROFINET and Modbus TCP protocols supported for monitoring and device management

  • Ring Protocol MRP (IEC 62439-2) has <10ms recovery time

  • STP/RSTP/MSTP for network redundancy

  • Advanced Security and IT management features: TACACS+, RADIUS, 802.1x, SSH, SNMPv3, and HTTPS

  • IEEE 1588 V1 and V2 PTP for microsecond accuracy

  • Advanced protocols to optimize the performance and intelligence of the network:   IGMP Snooping, LLDP-MED, GVRP, Voice VLANs, MSTP, GMRP, and IPv6 MLD Snooping

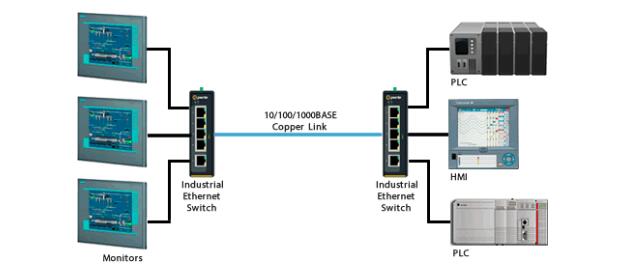

IDS-205、IDS-206、IDS-305、IDS-306、IDS-409 应用方案

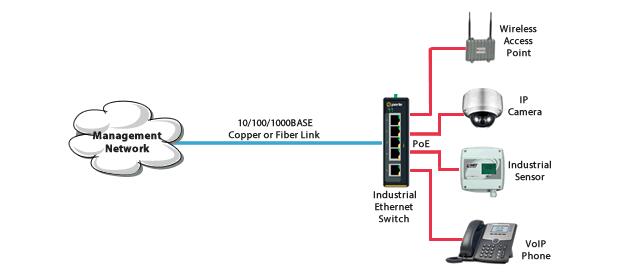

IDS-509 应用方案

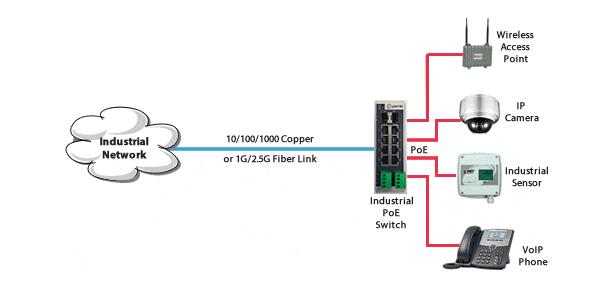

IDS-710 应用方案


方案一：



方案二：




方案三：





方案四：





订购产品信息：



图片描述电源线国别产品料号
20201219IDS-205 - Industrial Managed Ethernet Switch - 5 ports: 5 x 10/100/1000Base-T RJ-45 ports. -10 to 60C operating temperature.None
07013250
IDS-205-XT - Industrial Managed Ethernet Switch - 5 ports: 5 x 10/100/1000Base-T RJ-45 ports. -40 to 75C industrial extended operating temperature.None
07013260






20201219IDS-206 - Industrial Managed Ethernet Switch - 6 ports: 5 x 10/100/1000Base-T RJ-45 ports and 1 x 100/1000Base-X SFP slot ( empty ). -10 to 60C operating temperature.None
07013290
IDS-206-XT - Industrial Managed Ethernet Switch - 6 ports: 5 x 10/100/1000Base-T RJ-45 ports and 1 x 100/1000Base-X SFP slot ( empty ). -40 to 75C industrial extended operating temperature.None
07013300






20201219IDS-305 - Industrial Managed Ethernet Switch - 5 ports: 5 x 10/100/1000Base-T RJ-45 ports. -10 to 60C operating temperature. PRO software feature set.None
07013270
IDS-305-XT - Industrial Managed Ethernet Switch - 5 ports: 5 x 10/100/1000Base-T RJ-45 ports. -40 to 75C industrial extended operating temperature. PRO software feature set.None
07013280






20201219IDS-306 - Industrial Managed Ethernet Switch - 6 ports: 5 x 10/100/1000Base-T RJ-45 ports and 1 x 100/1000Base-X SFP slot ( empty ). -10 to 60C operating temperature. PRO software feature set.None
07013310
IDS-306-XT - Industrial Managed Ethernet Switch - 6 ports: 5 x 10/100/1000Base-T RJ-45 ports and 1 x 100/1000Base-X SFP slot ( empty ). -40 to 75C industrial extended operating temperature. PRO software feature set.None
07013320






20201219IDS-409 - Industrial Managed Ethernet Switch - 9 ports: 9 x 10/100/1000Base-T RJ-45 ports. -10 to 60C operating temperature.None
07013490
IDS-409-XT - Industrial Managed Ethernet Switch - 9 ports: 9 x 10/100/1000Base-T RJ-45 ports. -40 to 75C Industrial extended operating temperature.None
07013500






20201219IDS-710HP - Industrial Managed Ethernet Switch with 10 ports: 8 x 10/100/1000Base-T RJ-45 Hi-PoE (IEEE 802.3bt for 100W PoE) ports and 2 x SFP slots (supports 10/100/1000 on Copper & 1G/2.5G on Fiber). -10 to 60C operating temperature. PRO software feature set.None
07017270
IDS-710HP-XT - Industrial Managed Ethernet Switch with 10 ports: 8 x 10/100/1000Base-T RJ-45 Hi-PoE (IEEE 802.3bt for 100W PoE) ports and 2 x SFP slots (supports 10/100/1000 on Copper & 1G/2.5G on Fiber). -40 to 75C operating temperature. PRO software feature set.None
07017280
