PRO1™ HDOT® Smart C1S24BP- 3.3kW - 7.3kW (24) C13 outlets / (18) C13 (6) Cx outlets Rack PDU |
|
| | Family Description |
| | The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
|
|  |  |
| | Key Features |
| NETWORK MONITORING Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more. | HOT-SWAP NETWORK CARD Network access is ensured when power is lost to the Primary unit with backup power provided by the primary link unit. |
|
| STAR MULTI-LINKING Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card. | TEMPERATURE/HUMIDITY MONITORING Primary and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications. |
|
| AUTO-FLIP CURRENT DISPLAY
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets. | PER-INLET POWER SENSING Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy. |
|
| BRANCH CURRENT MONITORING PRO2 monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit. | BRANCH CIRCUIT PROTECTION This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses. |
|
| ALTERNATING-PHASE OUTLETS 3-phase power is wired in an alternating fashion per outlet for simplified load balancing, reduced cord lengths, and better airflow. | HIGH DENSITY OUTLET TECHNOLOGY The highest outlet density available in a network connected PDU. Meets IEC C13 and C19 specifications, plus high native retention and UL94V-0 flame rating. |
|
| HIGH RETENTION LOCKING OUTLETS Receptacles have high retention and are compatible with P-Lock type power cords. | HIGH TEMPERATURE RATING This product has been tested and approved for safe and reliable operation in 60 °C data center environments. |
|
| | Family Specifications |
| Branch Overcurrent Protection Type:Circuit Breaker: 2-pole Dual Input:No High Retention Outlets:Yes Input Current Display:Auto-Orient Input Monitoring:PIPS Locking Outlets:Yes Max Operating Temperature:60 °C Fast Movers:No Mounting:2U Horizontal Outlet Monitoring:None PDU Platform:PRO1
| Power Pivot Input:No Product Height (inch):3.5 Product Height (mm):89 Product Max Depth (inch):7.0 Product Max Depth (mm):178 Product Nominal Depth (inch):7.0 Product Nominal Depth (mm):178 Product Width (inch):17.2 Product Width (mm):437
|
|
| | Model No. |

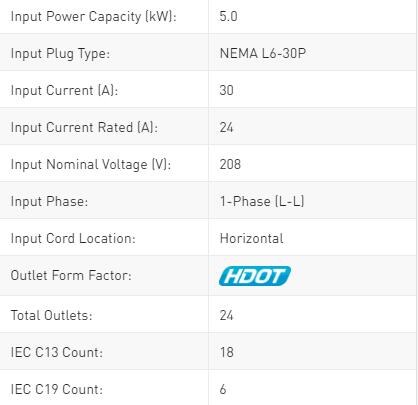

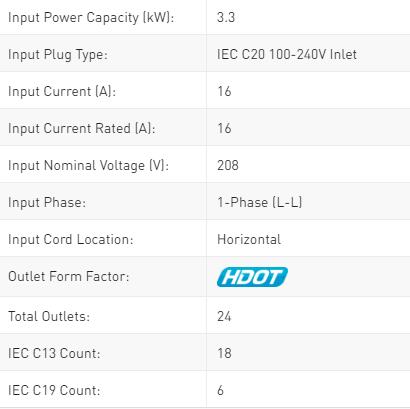

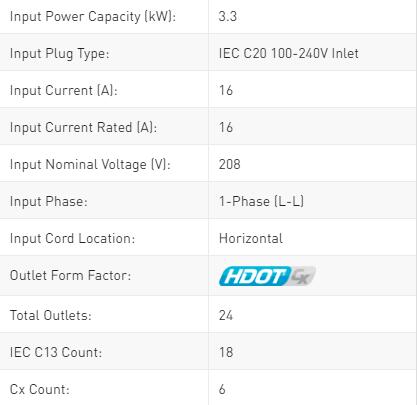

| C1S24BP-0AAA4A6 (SMART) REQUIRES PTCORD-L1, -L2, -L3, -L4, -L5, -L6, OR –L7 | C1S24BP-2CAA4A6 (SMART) |  |  |
|
| | C1S24BP-EPAA4A6 (SMART) | C1S26BP-0AAA4A0 (SMART) REQUIRES PTCORD-L1, -L2, -L3, -L4, -L5, -L6, OR –L7 |  |  |
|
| | C1S26BP-EPAA4A0 (SMART) | C1S24SP-0AAA4A6 (SMART) REQUIRES PTCORD-L1, -L2, -L3, -L4, -L5, -L6, OR –L7 |  |  |
|
| | C1S24SP-EPAA4A6 (SMART) | C1S24SP-2CAA4A6 (SMART) |  |  |
|
|

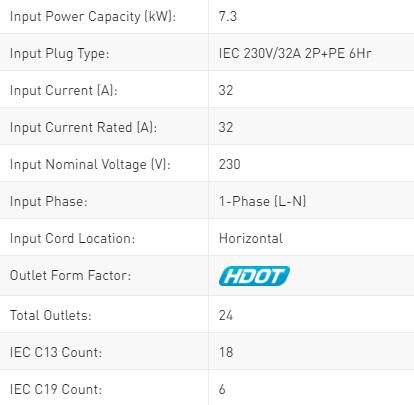

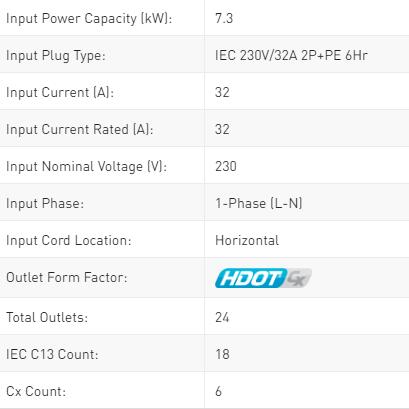

DescriptionThe Server Technology® PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Smart “Primary” PDU can be connected to as many as three (with optional module) PRO1 Smart “Link” PDU to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.Inputs| Input Voltage (V): | 230 | | Input Plug: | IEC 230V/32A 2P+PE 6Hr | | Input Current (A): | 32 | | Input Current Rated (A): | 32 | | Input Power Capacity (kW): | 7.3 |
Outputs| Connector | Rating |
|---|

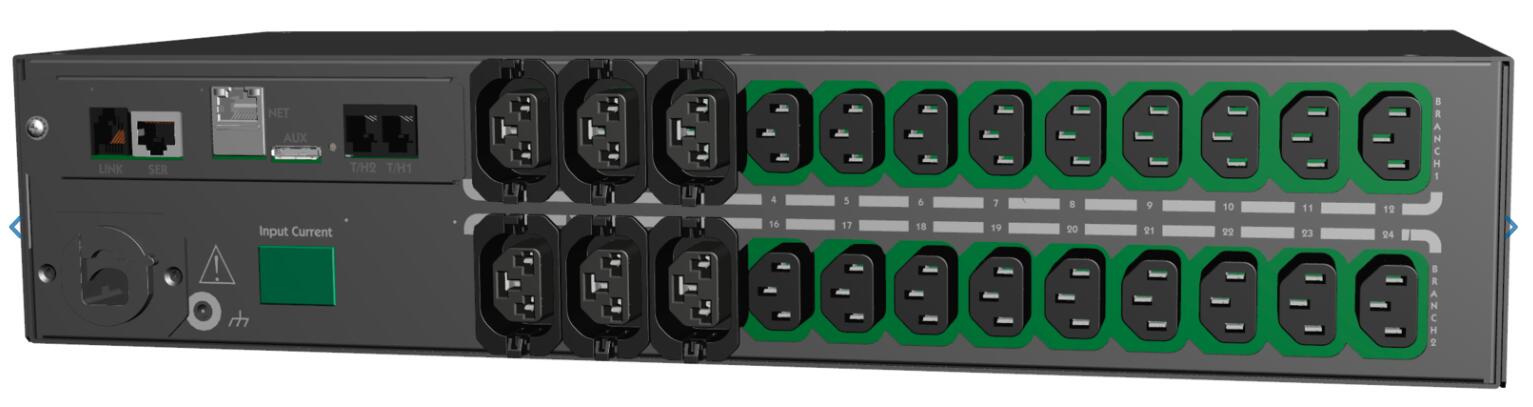

| (18) x IEC 60320/C13 | Global Rating: ≤ 10A @230V L-N | | (6) x IEC 60320/C19 | Global Rating: ≤ 16A @230V L-N |

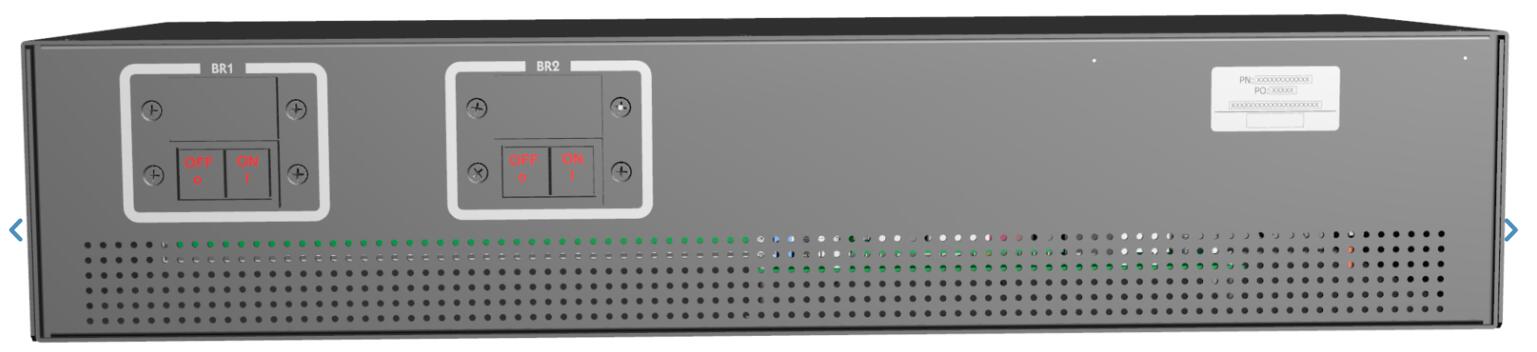

Branch Circuit ProtectionUL489 Compliant 2-pole, 20A trip circuit breakers, two (2) branch, rating: ≤ 16A, 10 kAIC Interrupt Rating
PhysicalDimensions: 3.5in tall x 17.2in wide x 7.0in deep [89mm x 437mm x 178mm]
EnvironmentalOperating Environment: 32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations
Communications & Security10/100/1000 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
CertificationsGlobal:
TUV T-Mark to EN 60950-1:2006+A11+A1+A12+A2
EMC to EN55024 (2010) and EN55032 (2012)
CE Compliant
RoHS, European Hazardous Materials Directive (Recast) 2011/65/EU
WEEE Compliant
Measurement AccuracyInput Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.3 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 1% at 0.01 amp resolution (above 0.25 amp)
Voltage = ± 1% at 0.1 volt resolution (nominal ± 10%)
Active Power = ± 1% at 1 watt resolution
Apparent Power = ± 1% at 1 volt-amp resolution
Power Factor = ± 3% at 0.01 resolution
Crest Factor = ± 10% at 0.1 resolution
Energy = ± 1% at 0.1 kilowatt-hour resolution
|
