Basic CB-12H2 5kW (12) C13 outlets Rack PDU |
| Key Features |
|  | BRANCH CIRCUIT PROTECTION This rack PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
|  | COLOR IDENTIFICATION Choose from six colors to designate circuits for rack PDUs in the data center. Color options include Blue, Red, Green, White, Yellow, and Black. |
| Family Description | | The Server Technology Basic PDU provides reliable power distribution for installing IT equipment into the rack/cabinet. |
|  | Family Specifications | | Branch Monitoring:None | None | Power Pivot Input: | No | | Branch Overcurrent Protection: | 100 kA | Product Height (inch): | 1.75 | | Branch Overcurrent Protection Type: | Fuse Holder | Product Height (mm): | 45 | Dual Input: | No | Product Max Depth (inch)： | 2.25 | | High Retention Outlets: | Yes | Product Max Depth (mm): | 58 | | Input Current Display: | None | Product Nominal Depth (inch): | 2.25 | | Input Monitoring: | None | Product Nominal Depth (mm): | 58 | | Locking Outlets: | Yes | Product Width (inch): | 17.0 | | Max Operating Temperature: | 40 °C | Product Width (mm): | 432 | | Fast Movers: | No |
|
| | Mounting: | 1U Horizontal |
|
| | Outlet Monitoring: | None |
|
| | PDU Platform: | None |
|
|
|
|
|
| | Product Specifications |
|
|
|
|
|
| CB-12H2-L630 (BASIC) |
| | DOWNLOAD DATASHEET |
|
| | Input Power Capacity [Kw] | 5.0 |
|
| | Input Plug Type: | NEMA L6-30P |
|
| | Input Current【A] | 30 |
|
| | Input Current Rated【A】 | 24 |
|
| | Input Nominal Voltage【V] | 208 |
|
| | Input Phase: | 1-Phase Wye [L-L] |
|
| | Input Cord Location: | Horizontal |
|
| | Lutlet Form Factor: | Conventional |
|
| | Total Outlets: | 12 |
|

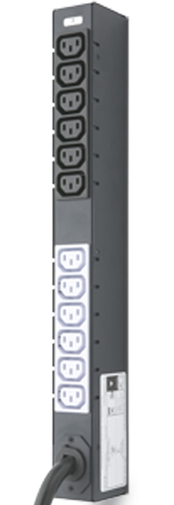

| | IEC C13 Count: | 12 |
|
| | IEC C19 Count: | 0 |
|
|
|
|
|
|
Basic PDU
You’re viewing Server Technology’s family of Basic PDUs. These PDU’s from Server Technology meet IEC data center requirements. Optional flexible mounting and color identification features are available. Server Technology’s Basic PDUs provide reliable power distribution for all devices in your equipment cabinet and ranges in power from 2kW-6kW per cabinet. Basic PDUs are available in single-phase 110-120V or 208-240V power distribution with 20A or 30A options and 3-Phase power distribution with 20Aand 30A options. Learn more about Server Technology’s basic PDUs with Zero-U Vertical Enclosures and shop from dozens of variations on our basic PDUs
DescriptionThe Server Technology® Basic PDU provides reliable power distribution for installing IT equipment into the rack/cabinet.
Inputs | Input Voltage (V): | 120 | | Input Plug: | IEC C20 100-120V Inlet | | Input Current (A): | 20 | | Input Current Rated (A): | 16 | | Input Power Capacity (kW): | 1.9 |
|
| | Outputs |

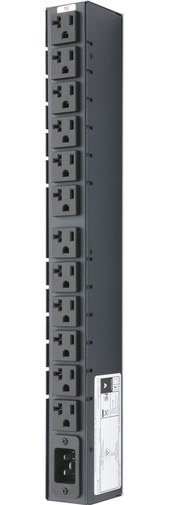

| | (12) x NEMA 5-20R | North American Rating: ≤ 16A @120V L-N (20A Peak) |
Branch Circuit Protection Physical Dimensions: 1.75in tall x 17.0in wide x 2.25in deep [45mm x 432mm x 58mm] Environmental Operating Environment: 32°F to 104°F / 0°C to 40°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations Communications & Security Certifications North American:
Safety (TUVR certified, cTUVus mark) UL Std. 60950-1, 62368-1 CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Measurement Accuracy Input Measurement Accuracy: LED Current = ± 10% at 0.1 amp (0.3 - 9.9 amps) and 1 amp (> 9.9 amps) resolution GUI Current = ± 5% at 0.01 amp resolution (above 0.25 amp)
Measurement AccuracyInput Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.3 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 5% at 0.01 amp resolution (above 0.25 amp)
|
