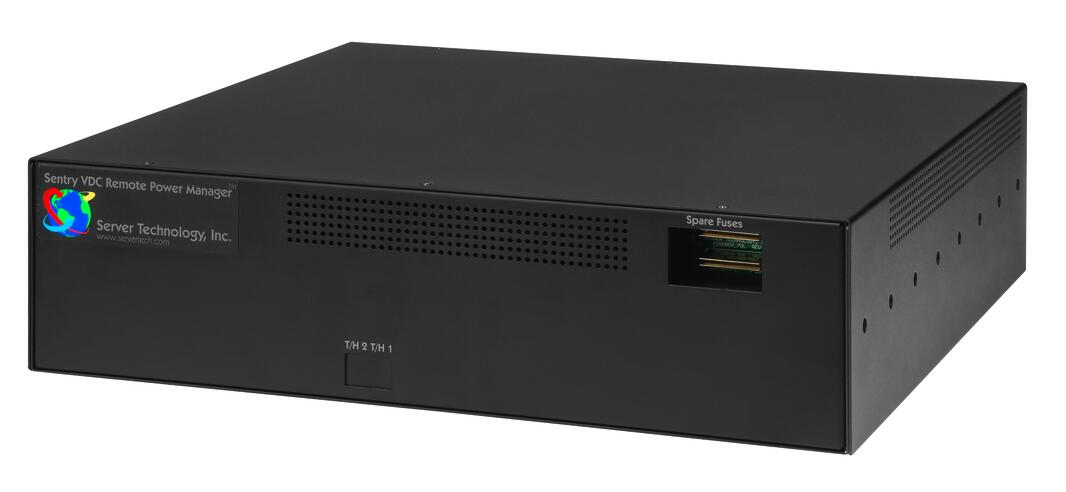

48DCWC-04-4X070-D0NB (-48 VDC)

简介： PRO1 Switched -48VDC (4) 70A inputs (4) 70A outputs Rack PDU
类型： -48VDC PM
品牌： server technology
型号： 48DCWC-04-4X070-D0NB (-48 VDC)
马上咨询
产品详情
产品特点
应用方案
文档下载
立即订购


PRO1 Switched -48VDC (4) 70A inputs (4) 70A outputs

Rack PDU


Family Description
The PRO1 Switched 48DCWC-12-2X100-A1NB Intelligent PDU and Remote Power Manager minimizes the impact of locked-up routers, servers and other network devices on business-critical networks. CLECs, ILECs, ISPs and enterprises use the 48DCWC-12-2X100-A1NB to manage equipment in remote sites, co-location facilities and network operation centers. The 48DCWC-12-2X100-A1NB eliminates the need to dispatch a field service technician for manual intervention when devices lock-up. Using a 48DCWC-12-2X100-A1NB, the network operations center can quickly restart locked-up remote network servers to ensure that the network is fully operational around the clock.




Key Features

DISCONNECT RATED CIRCUIT PROTECTION

Each output is protected by a fuse or circuit breaker and is rated for hot disconnect.


OUTPUT CURRENT MONITORING

Network monitoring provides access to current draw at each output and alerts when high usage risks a tripped circuit.


OUTPUT CONTROL

Cycle power to individual outputs or groups of outputs to reboot devices or to power off unused terminals.








NETWORK MONITORING

The PRO1 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.

Enviromental_Monitoring.pngTEMPERATURE/ HUMIDITY MONITORING

PRO1 Primary and Expansion units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.


STAR MULTI-LINKING

PRO1 provides the ability to link up to four power circuits using one IP address. First link provides backup power to network card.








HOT-SWAP NETWORK CARD

Network access is ensured when power is lost to the Primary unit with backup power provided by the primary link unit.






Family Specifications
Branch Monitoring:None
Power Pivot Input:No

Branch Overcurrent Protection:



Product Height (inch):4.4
Overcurrent Protection Type:Fuse Disconnect - TPC
Product Height (mm):112
Dual Input:No
Product Max Depth (inch):17.7
High Retention Outlets:No
Product Max Depth (mm):445
Input Current Display:None

Product Nominal Depth (inch):

16.0

Input Monitoring:

None
Product Nominal Depth (mm):407
Locking Outlets:No
Product Width (inch):17.0
Max Operating Temperature:50 °C
Product Width (mm):432
Fast Movers:No


Mounting:2.5U Horizontal


Outlet Monitoring:Current (A)


PDU Platform:PRO1



Product Specifications







48DCWC-04-4X070-D0NB (-48 VDC)


DOWNLOAD DATASHEET

Input Power Capacity (kW):13.4


Input Plug Type:Terminals


Input Current (A):280


Input Current Rated (A):280


Input Nominal Voltage (V):--48


Input Phase:DC


Input Cord Location:

Horizontal


Outlet Form Factor:



Total Outlets:4


Other Outlets:4









-48 VDC PDU - 9.6kW, 48DCWC-16-2X100-A0


Description

No description available.


Inputs

Input Voltage (V):-48
Input Current (A):280
Input Current Rated (A):280
Input Power Capacity (kW):13.4


OutPuts

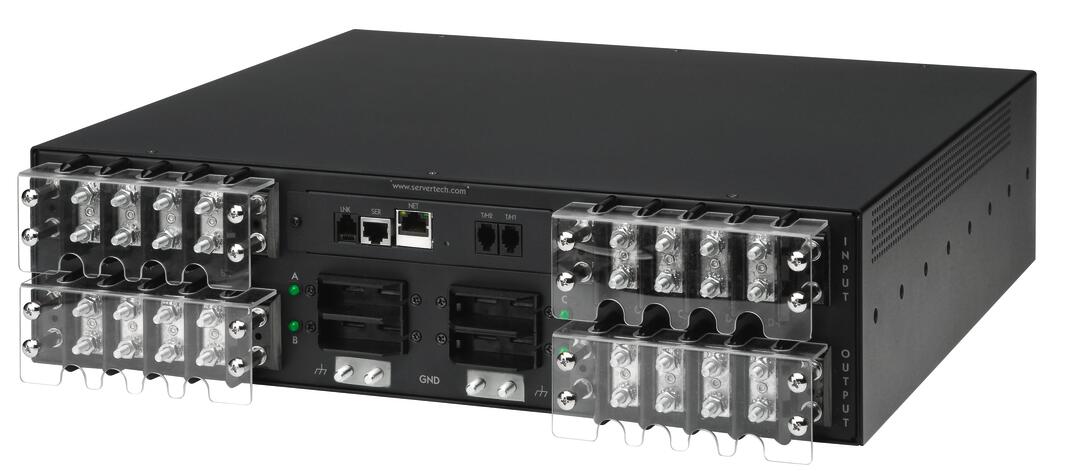

Terminals:

(4) x #10-32 dual-studs on 3/4 in. center (70A max)


Branch Circuit Protection

GMT Fuses Included, user to select TPC fuses:

FUSE-TPC-1010A Bussmann Telpower fuse
FUSE-TPC-1515A Bussmann Telpower fuse
FUSE-TPC-2020A Bussmann Telpower fuse
FUSE-TPC-2525A Bussmann Telpower fuse
FUSE-TPC-3030A Bussmann Telpower fuse
FUSE-TPC-4040A Bussmann Telpower fuse
FUSE-TPC-5050A Bussmann Telpower fuse
FUSE-TPC-6060A Bussmann Telpower fuse
FUSE-TPC-7575A Bussmann Telpower fuse
FUSE-TPC-100100A Bussmann Telpower fuse
FUSE-TPC-125125A Bussmann Telpower fuse



Physical

Dimensions: 4.4in tall x 17.0in wide x 16.0in deep [112mm x 432mm x 407mm]


Environmental

Operating Environment: 32°F to 122°F / 0°C to 50°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation

Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation

Quiescent / Unloaded Power Draw: < 10W for all configurations



Communications & Security

10/100/1000 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)

Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}

Web-browser GUI and command-

line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps),

IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP


Certifications

North American:
Safety (TUVR certified, cTUVus mark)

  • UL Std. 60950-1, 62368-1

  • CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1

EMC

  • FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A

  • CAN ICES-003, Class A



Global:
Safety

  • EN 62368-1 (TUVR certified, T-mark)

  • IEC 60950-1 incl. regional, national and harmonized differences (IECEE CB scheme)

  • IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme)

EMC

  • EN 55032 / IEC 55032 / CISPR 32

  • EN 55024 / CISPR 24

  • EN 55035 / IEC 55035 / CISPR 35

  • EN 61000-3-2 / IEC 61000-3-2

  • EN 61000-3-3 / IEC 61000-3-3


  • RoHS, European Hazardous Materials Directive, 2011/65/EU

  • WEEE Compliant

  • CE Mark

  • UK Legislation

  • RoHS, Electrical Equipment (Safety) and Electromagnetic Compatibility

Measurement Accuracy

Input Measurement Accuracy:

LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution

GUI Current = ± 5% at 0.01 amp resolution (above 0.5 amp)
