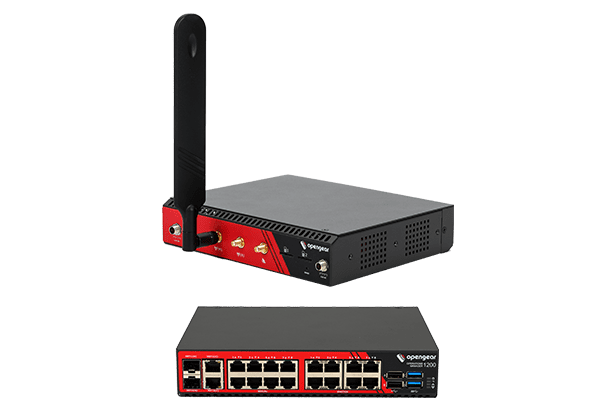

| OM1200 Operations Manager具有智能带外功能的 NetOps 控制台服务器 |
| Opengear OM 设备是 NetOps 控制台服务器，即将 SmartOOB™ 控制台服务器的功能与 NetOps 自动化的灵活性相结合的网络管理设备。
紧凑型 OM1200 设备专为安全边缘部署而设计，与 Lighthouse 管理软件结合使用。作为 Opengear 的网络弹性平台的关键组件，它在每个站点都提供了现场和邻近访问，可满足网络管理和自动化中不断出现的需求。 |
| | | | |
|
|
|
|
|
|
|
|
| | 产品特性 |
|
|
|
|
|
|
| | - 开放式体系结构，基于Linux操作系统；用于自动化的标准DevOps工具，包括Ansible、Docker和Python
|
|
|
|
| - TPM2.0 芯片提供了一个安全的引导过程，以防止配置和固件篡改
| - Smart OOB 包括自动端口发现功能和VLAN支持
|
|
| TECH SPECS |
|
|
| All Models:All serial ports are Cisco straight X2 pinout serial ports(50 to 230,400 bps) 2 x USB 2.0 ports for device console management 2 x USB 3.0 Host Ports for storage 2 x 10/100/1000 Ethernet/SFP Fiber port OM1208-8E – 8 x RJ45 RS-232 Serial Ports plus 8 Port Ethernet Switch Power:110-240V AC to 12V DC external power adapter Power consumption for serial models less than 25W Dimensions and Weight:8 5/8 x 6 5/8 x 1 5/8 in – 2.2 lbs 22 x 17 x 4.2 cm – 1 kg Environmental:Ambient Operating Temperature: 5°C to 50°C, 41°F to 122°F Storage Temperature: -40°C to +75°C, -40°F to +167°F Emissions:EN 55022:2010, CISPR 22:2008, FCC Part 15 Subpart B:2015, ICES-003 Issue 5 (2014), AS/NZS CISPR 22:2009+A1:2010, Immunity:EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004
|
| Memory & CPU:AMD GX-412TC 1.4 Ghz 4-core 64-bit x86 4 GB DDR3 RAM 16 GB SSD internal MTBF:100,000 hours Security and Authentication:Trusted Platform Module 2.0 AAA – TACACS+
SSH
Embedded Firewall
OpenVPN – Lighthouse Connection Cellular Specifications for: OM12xx-LSIM Slot: Dual Push Click 2FF SIM slots Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module ceritfied CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS Air Interface: LTE-A Pro (LTE-LAA), HSPA+ Frequency Bands: 4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19 Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12 |
| OUT-OF-BAND MANAGEMENT SOLUTIONS |
| PRODUCT MODEL |
| DESCRIPTION |
|
|
| | OM1204 | Compact | Console Server + Automation, 4 Serial, 2GB RAM, 16GB Flash, 1GbE, Python Runtime, Docker Support, Secure Boot |
|
|
| | OM1204-L | Compact | Console Server + Automation, 4 Serial, 2GB RAM, 16GB Flash, 1GbE, Global 4G LTE, Python Runtime, Docker Support, Secure Boot
|
|
|
| | OM1204-4E | Compact | Console Server + Automation, 4 Serial, 4 GbE, 4GB RAM, 16GB Flash, 1GbE SFP, Python Runtime, Docker Support, Secure Boot
|
|
|
| | OM1204-4E-L | Compact | Console Server + Automation, 4 Serial, 4 GbE, 4GB RAM, 16GB Flash, 1GbE SFP, Global 4G LTE, Python Runtime, Docker Support, Secure Boot
|
|
|
| | OM1208 | Compact | Console Server + Automation, 8 Serial, 2GB RAM, 16GB Flash, 1GbE, Python Runtime, Docker Support, Secure Boot
|
|
|
| | OM1208-L | Compact | Console Server + Automation, 8 Serial, 2GB RAM, 16GB Flash, 1GbE, Global 4G LTE, Python Runtime, Docker Support, Secure Boot
|
|
|
| | OM1208-8E | Compact | 8 serial straight X2 pinout, 8 port GbE switch, x86 CPU, supports Docker and Python, 4 GB RAM, 16 GB SSD, embedded TPM 2.0 secure boot, 2 x USB 2.0, 2 x GbE/SFP Fiber |
|
|
| | OM1208-8E-L | Compact | 8 serial straight X2 pinout, 8 port GbE switch, x86 CPU, supports Docker and Python, Global LTE-A cellular, 4 GB RAM, 16 GB SSD, embedded TPM 2.0 secure boot, 2 x USB 2.0, 2 x GbE/SFP Fiber |
|
|
|
|
