OM2232-DDC

OM2232-DDC

简介： 智能OOB功能的具有NetOps自动化灵活性的控制台服务器
类型： 控制台服务器
品牌： OpenGear
型号： OM2232-DDC
马上咨询
产品详情
产品特点
应用方案
文档下载
立即订购

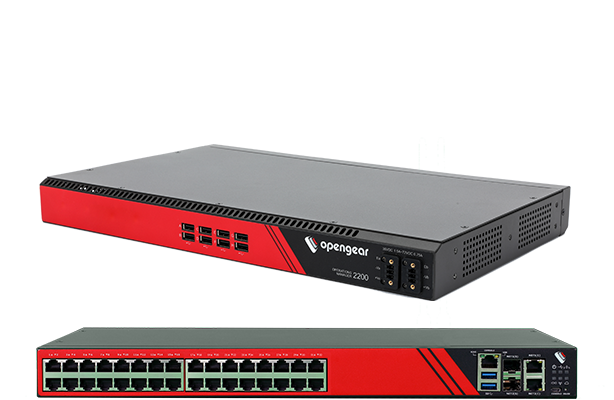

OM2200 Operations Manager

支持 NetOps 自动化平台






Opengear OM 设备是 NetOps 控制台服务器，即将 SmartOOB™ 控制台服务器的功能与 NetOps 自动化的灵活性相结合的网络管理设备。


通过我们的 Lighthouse 软件管理的 OM2200 设备已针对数据中心和高密度站点进行了配置。该设备集成到 Opengear 的网络弹性平台中，提供了一个独立的安全 管理层面，可支持高级自动化应用程序






  • 16、32、48 串行端口和 24 串行/24 以太网混合端口型号

  • 针对 1 GbE 和 10 GbE 网络进行了优化的独立平台

  • 全局 LTE 接口（非蜂窝可选）

  • x86 平台；嵌入式物理安全

  • Python 运行时，Docker 容器支持











产品特性








  • x86 CPU 支持标准 Docker 容器和python 运行时环境,并自动 NetOps 处理

  • 开放式体系结构，基于Linux操作系统；用于自动化的标     准DevOps工具，包括Ansible、Docker和Python

  • TPM2.0 芯片提供了一个安全的引导过程，以防止配置和固件篡改

  • Smart OOB 包括自动端口发现功能和VLAN支持
  • 全球接入的嵌入式LTE-A Pro 蜂窝模块

  • 64GB内部存储器











TECH SPECS



All Models:

All serial ports are RJ45 RS-232 Console Port (50 to 230,400 bps, software selectable Cisco-straight or Cisco-rolled pinout)

1 x micro USB 2.0 Console Port and 1 x RJ45 Serial

8 x USB 2.0 ports for device console management

2 x USB 3.0 Host Ports for storage

2 x 10/100/1000 Ethernet/SFP Fiber port

OM2216 – 16 x RJ45 RS-232 Serial Ports

OM2232 – 32 x RJ45 RS-232 Serial Ports

OM2248 – 48 x RJ45 RS-232 Serial Ports

Power:

Dual socket universal 100-240V AC

Power consumption for serial models than 30W
Power consumption for mixed models less than 45W

Dimensions and Weight:

17.25 x 10.25 x 1.75 in – 7.7 lbs

44 x 26 x 4.5 cm – 3.5 kg

Environmental:

Ambient Operating Temperature: 5°C to 50°C, 41°F to 122°F

Storage Temperature: -30°C to +60°C, -22°F to +140°F

Humidity: 5% to 90%



Emissions:

EN55032: 2015 Class A

Immunity:

EN61000-4-2, -4-3:2006+A1: 2006+A2:2010, -4-4: 2007, -4-5: 2014, -4-6:2008, -4-8: 2009, -4-11: 2010, -4-28: 2010 EN61000-3-2: 2014, EN61000-3-3: 2013

Memory & CPU:

  • AMD GX-412TC   1.4 GHz 4-core 64-bit x86

  • 8 GB DDR3 RAM

MTBF:

100,000 hours

Security and Authentication:

Trusted Platform Module 2.0

AAA – TACACS+
SSH
Embedded Firewall
OpenVPN – Lighthouse Connection

Cellular Specifications (OM22xx-L models)

SIM Slot: Dual Push Click 2FF SIM slots

Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module certified CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE-A Pro (LTE-LAA), HSPA+

Frequency Bands:4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19

Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12





OUT-OF-BAND MANAGEMENT SOLUTIONS








PRODUCT MODEL
DESCRIPTION



OM2216-AURackmount16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord



OM2216-EURackmount16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord



OM2216-JPRackmount16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord



OM2216-UKRackmount16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord



OM2216-USRackmount16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord



OM2216-DDCRackmountDESCRIPTION: Console Server + Automation, 16 Serial, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, Dual DC power



OM2216-L-AURackmount16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord



OM2216-L-EURackmountDESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord



OM2216-L-JP Rackmount

16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord




OM2216-L-UKRackmount

16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord




OM2216-L-USRackmount

16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord




OM2216-DDC-LRackmount

Console Server + Automation, 16 Serial, 8G RAM, 64G Flash, 1GbE, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2224-24E-L-AURackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, AU Power Cord




OM2224-24E-L-EU

      Rackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, AU Power Cord




OM2224-24E-L-JPRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, JP Power Cord




OM2224-24E-L-UKRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, UK Power Cord




OM2224-24E-L-USRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, US Power Cord




OM2224-24E-DDC-LRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2224-24E-AURackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE/SFP, Python Runtime, Docker Support, Secure Boot, AU Power Cord




OM2224-24E-JPRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Python Runtime, Docker Support, Secure Boot, JP Power Cord




OM2224-24E-UKRackmount


Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Python Runtime, Docker Support, Secure Boot, UK Power Cord




OM2224-24E-USRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, US Power Cord




OM2224-24E-EURackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, EU Power Cord




OM2224-24E-DDCRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2224-24E-10G-AURackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, AU Power Cord




OM2224-24E-10G-EURackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE, Python Runtime, Docker Support, Secure Boot, EU Power Cord




OM2224-24E-10G-JPRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, JP Power Cord




OM2224-24E-10G-UKRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, UK Power Cord




OM2224-24E-10G-USRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, US Power Cord




OM2224-24E-10G-DDCRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2224-24E-10G-L-AURackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, AU Power Cord




OM2224-24E-10G-L-EURackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, EU Power Cord




OM2224-24E-10G-L-JPRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, JP Power Cord




OM2224-24E-10G-L-UKRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, JP Power Cord




OM2224-24E-10G-L-USRackmount

DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, US Power Cord




OM2224-24E-10G-DDC-LRackmount

Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2232-AURackmount

32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord




OM2232-EURackmount

32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord




OM2232-JPRackmount

32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord




OM2232-UKRackmount

32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord




OM2232-USRackmount

32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord




OM2232-DDCRackmount

Console Server + Automation, 32 Serial, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2232-L-AURackmount

32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord




OM2232-L-EURackmount

32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord




OM2232-L-JPRackmount

32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord




OM2232-L-UKRackmount

32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord




OM2232-L-USRackmount

32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord




OM2232-DDC-LRackmount

Console Server + Automation, 32 Serial, 8G RAM, 64G Flash, 1GbE, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2248-AURackmount

48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord




OM2248-EURackmount

48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord




OM2248-JPRackmount

48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord




OM2248-UKRackmount

48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord




OM2248-USRackmount

48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord




OM2248-DDCRackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2248-L-AURackmount

48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord




OM2248-L-EURackmount

DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord




OM2248-L-JPRackmount

48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord




OM2248-L-UKRackmount

48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord




OM2248-L-USRackmount

48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord




OM2248-DDC-LRackmount

DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 1GbE, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2248-10G-AURackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, AU Power Cord




OM2248-10G-EURackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, EU Power Cord




OM2248-10G-JPRackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, JP Power Cord




OM2248-10G-UKRackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, UK Power Cord




OM2248-10G-USRackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, US Power Cord




OM2248-10G-DDCRackmount

DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, Dual DC power




OM2248-10G-L-AURackmount

DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, AU Power Cord




OM2248-10G-L-EURackmount

DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, EU Power Cord




OM2248-10G-L-JPRackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, JP Power Cord




OM2248-10G-L-UKRackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, UK Power Cord




OM2248-10G-L-USRackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, US Power Cord




OM2248-10G-DDC-LRackmount

Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power


ACCESSORIES




PICTURENAMEPart Number
Description




SFP Gigabit Optical Tranceivers
accessory-1.jpgSX SFP fiber transceiver, 550m multi-mode569023Transceiver – SX SFP – 550m multi-mode
LX/LH SFP fiber transceiver, 2km multi-mode   569024Transceiver – LX/LH SFP – 2km multi-mode
LX/LH SFP fiber transceiver, 10km single-mode   569025Transceiver – LX/LH SFP – 10km single-mode
EX SFP fiber transceiver, 40km single-mode   569026EX SFP fiber transceiver, 40km single-mode




Wireless Accessories



Antenna – Blade LTE-A Pro with swivel base (-L Devices)569041 Antenna – Blade LTE-A Pro with swivel base (-L Devices)
449041-4-126x91.jpgAntenna Extender – Magnetic Base with 10′ Cable449041Antenna Extender – Magnetic Base with 10′ Cable




Serial Adapters


accessory-3.jpgDB9F to RJ45 crossover serial adapter319015Adapter – DB9F to RJ45 crossover serial – DTE -For X2 Pinout




Warranty

warranty-126x91.pngOGEXTWAR5-OM22 OGEXTWAR5-OM22

Warranty OM2200 (Extends to 5th year warranty)

OGEXTWAR6-OM22 OGEXTWAR6-OM22

Warranty OM2200 (Extends to 6th year warranty)
