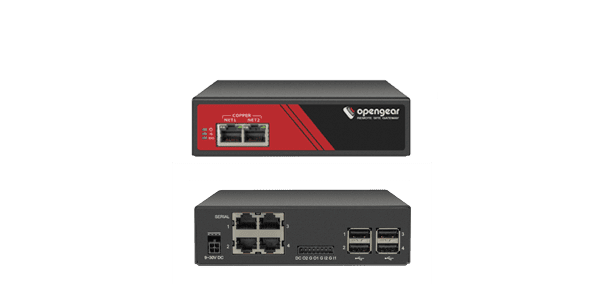

Resilience Gateway ACM7000

面向边缘站点的智能带外控制台服务器

• Smart OOB™ 控制台服务器功能强大、结构紧凑，具有可选的 Failover to Cellular™

• 通过 IP 直通在出现故障期间保持网络连接

• 配备 4 端口嵌入式交换机

• 灵活方便，具有 4 个内置 USB 控制台端口

• 高速全球蜂窝调制解调器 – LTE-A Pro

• 4–8端口串行控制台服务器，网络和服务器设备的带外管理

• 自动检测并从停机中恢复，并修复设备故障

• 4个USB 2.0控制台端口，用于网络和服务器设备的带外管理

• 链路层发现协议（LLDP）在本地网络上发现、识别和验证连接的设备。

• Models & Connectors

  All Models:

  • All serial ports are RJ45 RS-232 (50 to 230,400bps, Cisco pinout)

  • 2 x RJ45 10/100/1000 Ethernet ports, primary and failover

  • 4 x USB 2.0 console port

  • 2 x TTL level Digital I/O ports (DIO) 5V DC max @ 20mA (supports external water /smoke / motion dry contact sensors)

  • 2 x High Voltage Digital Outputs (HVDO) 5-30V DC@ 100mA (drives relays, alarms, etc.)

  ACM7004: 4 x RS-232 serial ports
  ACM7004-5: 4 x RS-232 serial ports, 4 x GbE ports, 1 x GbE – Copper or SFP
  ACM7008: 8 x RS-232 serial ports

  Power

  110-240V AC to 12V DC external power adapter
  11.5 W total consumption

  Dimensions & Weight

  • 5 1/8 x 4 3/4 x 1 3/8 in | 13 x 12 x 3.5 cm

  • 1.3 lbs (.6 kg)

  Environmental

  Humidity: 5% to 90%
  Ambient operating temperature: -25°C to 60°C (-13°F to 140°F)
  Non-operating storage temp: -40°C to 75°C (-40°F to 167°F)

  Emissions

  EN 55022:2010, CISPR 22:2008, FCC Part 15 Subpart B:2015,
  ICES-003 Issue 5 (2014), AS/NZS CISPR 22:2009+A1:2010,
  EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008

  Immunity

  EN 55024:2010, CISPR 24:2010,
  EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010,
  EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004

  Isolation

  Serial Port: 4kV ESD protection on RS-232 transceivers
  Ethernet Port: 1500V AC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection

  Other Agency Approvals

  CE, UL 1950, TUV, C-Tick, RoHS compliant, Security features to support PCI DSS 3.2 compliance, NERC CIP standards, FIPS 140-2 validated module Certificate #2473

  Memory & CPU

  800 MHz Armada 370 ARMv7 SoC (Marvell 88F6W11)
  256MB DDR3   SDRAM, 32MB Embedded Flash and 4GB Internal NAND Flash

  MTBF

  AC-DC (12V) adapter – 100,000 hours

  Operating System

  Linux with source code access and Custom Development Kit (CDK)

  Security & Authentication

  IPsec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS and LDAP authentication, PAP/CHAP authentication (dial up), Dial back support, Local authentication, System event syslog, Authenticated NTP

  Gateway Router

  Stateful firewall, DHCP server, DDNS, Port forwarding, IP filtering with access control lists




Remote Management

HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response, RESTful APIs

Cellular Specifications for:

ACM7000-L

SIM Slot: Dual Push Click 2FF SIM slots

Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module ceritfied CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE-A Pro (LTE-LAA), HSPA+

Frequency Bands:4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19

Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12

ACM7000-LMP

SIM Slot: Cradle dual 2FF SIM slot

Modem Device: -LMP model utilizes Sierra Wireless MC7430. CE, GCF, JRF/JPA, NCC certified

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE-FDD, LTE-TDD, HSPA+, TD-SCDMA; Supports most carriers in APAC region.   MIC-R and MIC-T approved for use in Japan

Frequency Bands: 4G LTE B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41 3G WCDMA B1, B5, B6, B8, B9, B19 TD-SCDMA B39

Data Services: Transfer rate (peak): Download 300 Mbps/Upload 50 Mbps CAT-6

ACM7000-LMA, ACM7000-LMV, ACM7000-LMS, ACM7000-

LMCR, ACM7000-LMCT

SIM Slot: Cradle dual 2FF SIM slot

Modem Device: These models utilize the Sierra Wireless MC7354. -LMA is AT&T approved. -LMV is Verizon ODI certified and can be used for Verizon Private Network. -LMS for use Sprint network. The modem is CE, FCC, GCF, IC, NCC, PTCRB certified and can be reprogrammed by the end-user to work with other carriers

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, 1xRTT

Frequency Bands: 4G LTE B2, B4, B5, B13, B17, B25 3G WCDMA B1, B2, B4, B5, B8 EVDO BC0, BC1, BC10 EDGE, GSM, GPRS 850, 900, 1800, 1900 CDMA BC0, BC1, BC10

Data Services: Transfer rate (peak): Download 100 Mbps/Upload 50 Mbps CAT-3

ACM7000-LMR models

SIM Slot: Cradle dual 2FF SIM slot

Modem Device: -LMR model utilizes Sierra Wireless MC7304. CE, GCF, NCC, FCC certified

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, ; Supports most carriers EMEA, APAC, ANZ.

Frequency Bands: 4G LTE B1, B3, B7, B8, B20 3G WCDMA B1, B2, B5, B8 EDGE, GSM, GPRS 850, 900, 1800, 1900

Data Services: Transfer rate (peak): Download 100 Mbps/Upload 50 Mbps CAT-3

4 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, 4 USB console ports, 2 DIO and 2 output ports, Global Power Adapter

4 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, Global 4G LTE-A Pro cellular, 2 DIO and 2 output ports

4 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, 4 USB console ports, PSTN modem 2 DIO and 2 output ports

4 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, 4G LTE cellular, 2 DIO and 2 output ports

4 serial Cisco Straight pinout, ext power, 1 GbE Ethernet or fiber SFP & 4 port GbE switch, 2 DIO and 2 output ports, Global Power Adapter

4 serial Cisco Straight pinout, ext power, 1 GbE Ethernet or fiber SFP & 4 port GbE switch, Global 4G LTE-A Pro cellular, dual SIM, 2 DIO and 2 output ports, Global Power Adapter

4 serial Cisco Straight pinout, ext power, 1 GbE Ethernet or fiber SFP & 4 port GbE switch, 4G LTE cellular, dual SIM, 2 DIO and 2 output ports, Global Power Adapter

8 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, 4 USB console ports, 2 DIO and 2 output ports, Global Power Adapter

8 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, Global 4G LTE-A Pro cellular, dual SIM, 2 DIO and 2 output ports, Global Power Adapter

8 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet or fiber SFP, 4 USB console ports, PSTN modem 2 DIO and 2 output ports, Global Power Adapter

8 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, 4G LTE cellular, dual SIM, 2 DIO and 2 output ports, Global Power Adapter

External AC 12V with IEC input – ACM7000

Rack Mount Kit – Ears and Screws – ACM7000

Rack Mount Tray – All ACM Series

Rack Mount – DIN Rail – ACM7000

Smoke detector/alarm (220V AC, IEC C-13)

Smoke detector/alarm (110V AC, NEMA 5-15)

Water leak detector – 3′ Cable length

GPS active antenna

Antenna – GPS Active – 6′ Cable length – For all 4G LTE Cellular units

GPS active antenna

Antenna – GPS Active – 6′ Cable length – For all 3G LTE Cellular units

Antenna – Blade LTE-A Pro with swivel base (-L Devices)

Antenna – Blade LTE-A Pro with swivel base (-L Devices)

Adapter – DB9F to RJ45 crossover serial – DTE -For X2 Pinout
