EMD5000

简介 环境监控设备
类型 环境监控设备
品牌 OpenGear
型号 EMD5000
产品详情
产品特点
应用方案
文档下载
立即订购



Environmental Monitoring Device

环境监控设备

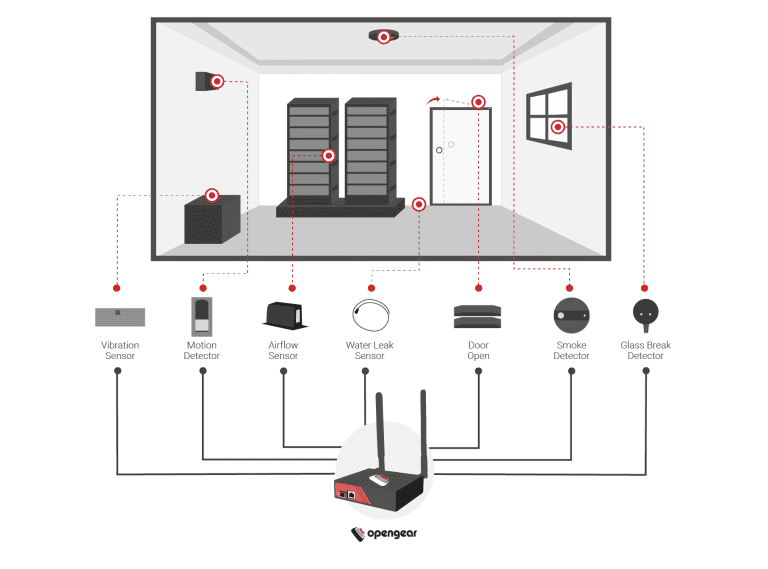

Opengear环境监测设备可检测温度、湿度、烟雾和运动的变化,或数据中心和远程站点中是否存在水,从而密切关注IT基础设施的物理环境。


通过自定义脚本,通过短信、电子邮件甚至推特设置自动响应序列。查看远程环境的环境温度和湿度,并将设备设置为在警报升高时自动发送渐进式警报–从警告级别到严重警报。


EMD5000监控一个或两个外部干触点的状态,干触点可以连接到烟雾探测器、水探测器、振动或开门传感器,从而增强远程站点的可见性。


我们的环境设备插入Opengear控制台服务器上的串行端口,并支持使用标准web浏览器进行远程监控。警报通过电子邮件、SMS和SNMP陷阱发送。自动响应序列可以由环境触发事件启动。可以使用标准web浏览器远程访问报告,并使用时间戳记录数据。






  • 监控温度、湿度、一个触点/传感器状态(当使用经典引脚连接到控制台服务器时,支持两个触点/传感器)

  • 与Opengear控制台服务器配合使用,提供安全的经过身份验证的访问

  • 在console server web-based UI中显示当前状态和历史记录

  • 可选择维护本地或远程的温度、湿度和传感器状态的审核日志



TECH SPECS



The EMD5000 monitors the status of one or two external dry contacts, which can be connected to a smoke detector, water detector, vibration or open-door sensor giving enhanced visibility into your remote sites.

  • Monitors temperature, humidity, and status of one contact/sensor (supports two contacts/sensors when connected to console servers with Classic pinout)


  • Works with Opengear console server to provide secure authenticated access



Our environmental devices plug into the serial ports on Opengear console servers and enables remote monitoring using a standard web browser. Alerts are sent via email, SMS and SNMP traps. Automated response sequences can be initiated by environmental trigger events. Reports can be accessed remotely using standard web browsers and data logged with time stamps.

  • Displays current status and history in console server web-based UI


  • Option to maintain local or remote audit logs of temperature, humidity and sensor status








OUT-OF-BAND MANAGEMENT SOLUTIONS









PICTURENAMEPart Number
Description




Environmental Accessories
accessory-2.jpgSmoke detector/alarmEMD5779-QA

Smoke detector/alarm (220V AC, IEC C-13)




Smoke detector/alarmEMD5890-QA

Smoke detector/alarm (110V AC, NEMA 5-15)



EMD5000-00_EMD5000-01_EMD5000-02-11-126x91.jpgEnvironmental Monitor DeviceEMD5000-02Environmental Monitoring Device – X2 Pinout


EMD5780-4-126x91.gifWater leak detector EMD5780

Water leak detector – 3′ Cable length



EMD5781-10-4-126x91.gifDoor contact sensor EMD5781-10Door contact sensor – 10′ Cable length


EMD5782-4-126x91.gifVibration sensor EMD5782Vibration sensor – 3′ Cable length
