DPAX

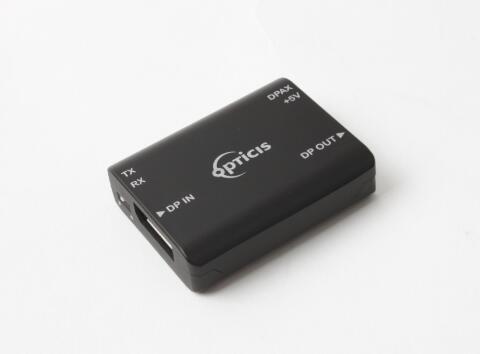

简介：	DP信号中继器
类型：	DP中继器
品牌：	OPTICIS
型号：	DPAX

马上咨询

产品详情

产品特点

应用方案

文档下载

立即订购

Description

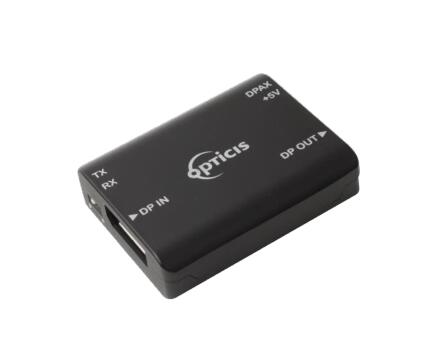

DisplayPort 1.2 Data Recovery Repeater, DPAX is an active repeater for DisplayPort video signal to increase video transmission of a DisplayPort signal up to a combined length of 8m (26ft) over DisplayPort 1.2 copper cables.

3m (10ft) from the Source - 5m (16ft) to the Display at DP1.2

5m (16ft) from the Source - 10m (33ft) to the Display at DP1.1

DPAX complies with DisplayPort 1.2 standards, and supports Ultra High Definition (up to 4096x2160) at 60Hz with auxiliary channel, MST function.

DPAX has been especially designed to work with Opticis fiber-optic DisplayPort extenders, DPFX-700, DPFX-300, DPFX-250, DPFX-100, DHFC200D and M1-5000. So it can extend transmission of DisplayPort signal even longer.

Product Specifications

• Complies with DisplayPort 1.2 standards

• Supports Ultra High Definition (up to 4096x2160) at 60Hz

• Offers data recovery function

• Transmits DisplayPort 1.2 data up to 18m (59feet) over copper cable

3m (10ft) from the Source / 5m (16ft) to the Display at DP1.2

5m (16ft) from the Source / 10m (33ft) to the Display at DP1.1

• Offers total data rate 21.6Gbps (5.4Gbps per lane)

• Supports auxiliary channel, MST function

• Supports much longer extension through daisy-chain connection

• Designed so that compatibility could go well especially with Opticis DisplayPort extenders for optical transmission

• Operated by USB power or DC power supplying adaptor

• Dimensions (WDH): 39.5 x 50 x 13mm

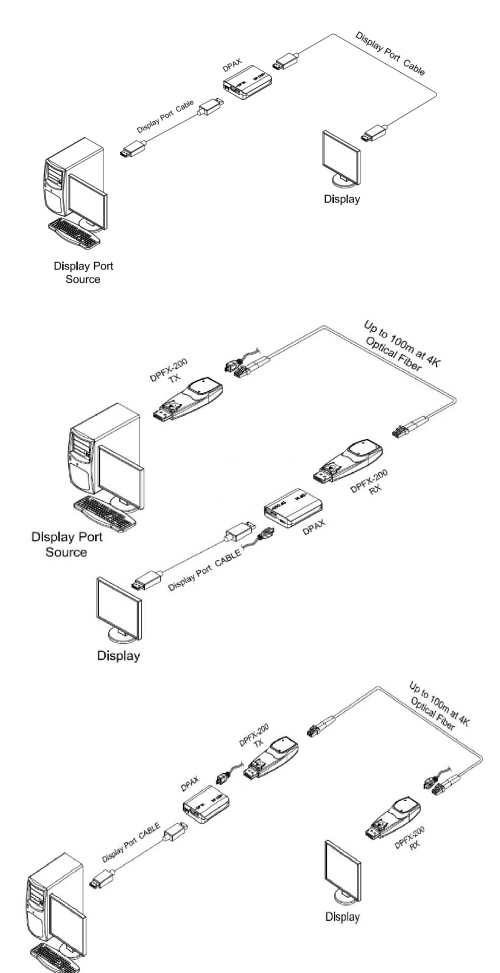

Connection Diagram

DOCUMENT

Brochure

Data Sheet

User manual

PRODUCT MODEL		DESCRIPTION

DPFX-700-TR		DPFX-700-TR, extends DisplayPort 1.2 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one(1) LC multi-mode fiber(OM3).

DPFX-300-TR		DPFX-300-TR, extends DisplayPort 1.2 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one(1) LC multi-mode fiber(OM3).

DPFX-250-TR		DPFX-250-TR enables to DisplayPort extender transmit 4K (4096x2160) at 60Hz signal up to 200m (656feet) over two (2) LC multi-mode fibers,

DPFX-100-TR		DPFX-100-TR is designed compact enough to be fitted into various installation environments with two (2) LC fibers connection. The transmitter and receiver set, DPFX-100-TR enables to transmit WQXGA (2560x1600) at 60Hz signal up to 200m (656 feet),

DPAX		DPAX is an active repeater for DisplayPort video signal to increase video transmission of a DisplayPort signal up to combined length of 18m (59ft) over Premium grade DisplayPort cable.

DPFC-200D		DPFC-200D, enables to transmit 4K (4096x2160) at 60Hz signal up to 100m (384feet) over plenum graded & LSZH hybrid cable. It avoids any scaling or data compression for lessening a burden of data transmission.

DHFC-200D		DHFC-200D, enables to convert DisplayPort 1.2 signal to HDMI 2.0 signal, and extends 4K (4096x2160) at 60Hz up to 100m (328feet) over plenum graded (or LSZH) hybrid cable.
