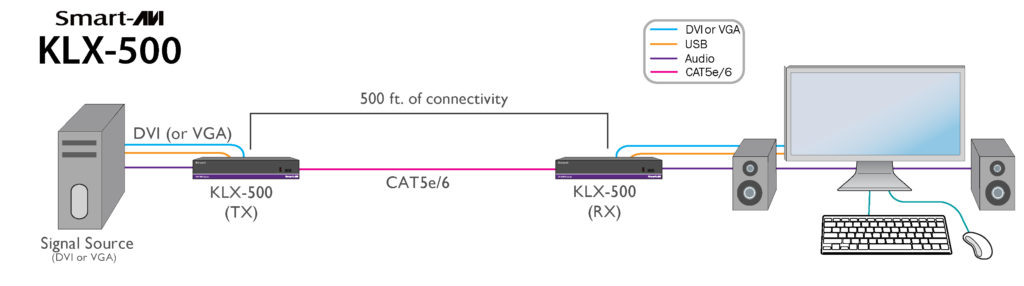

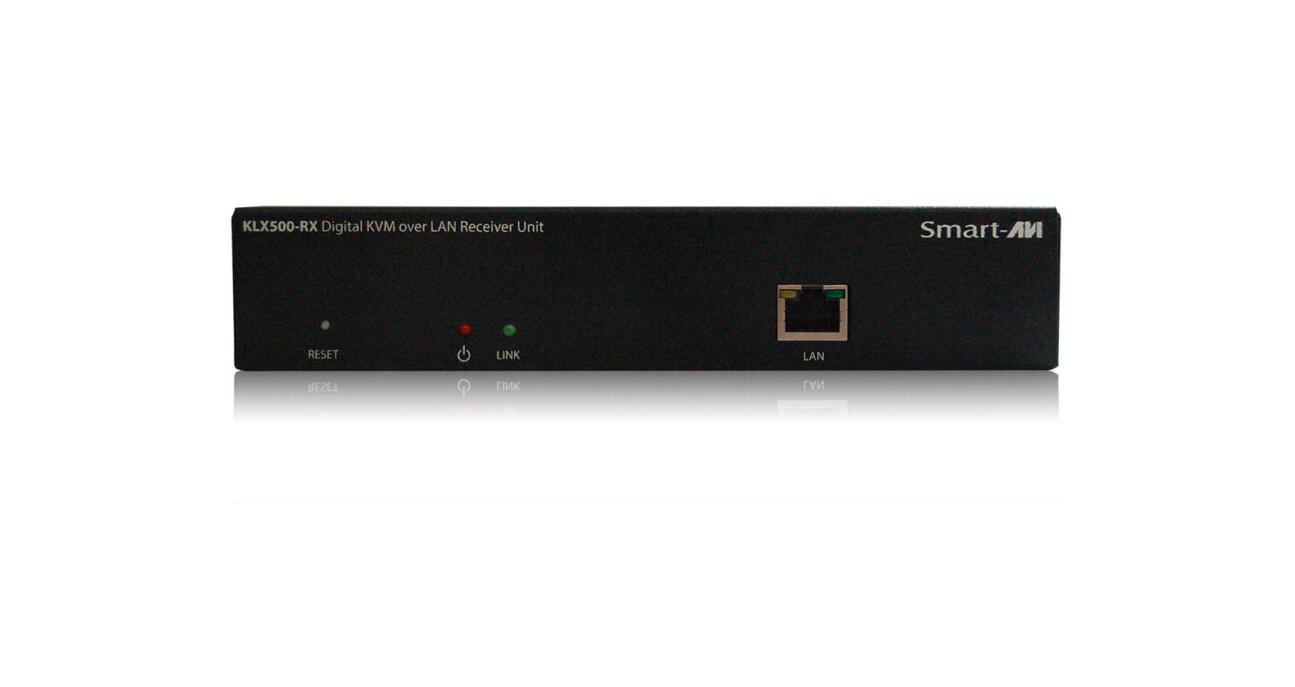

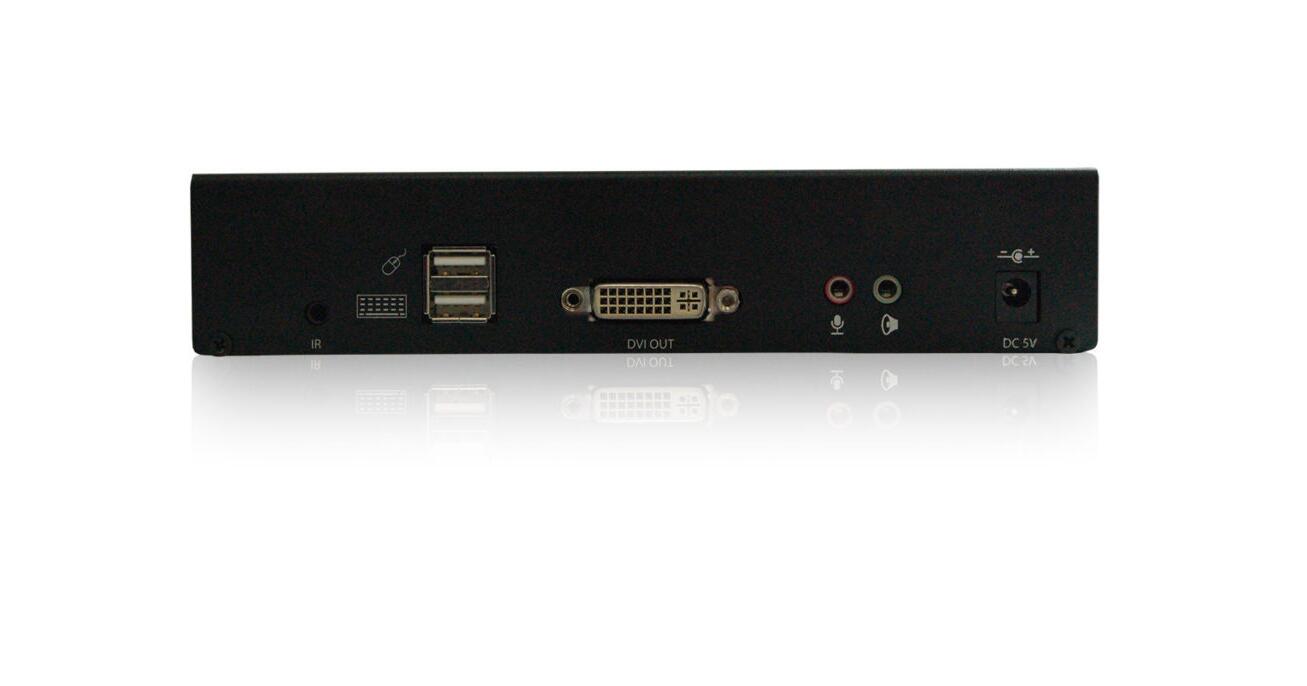

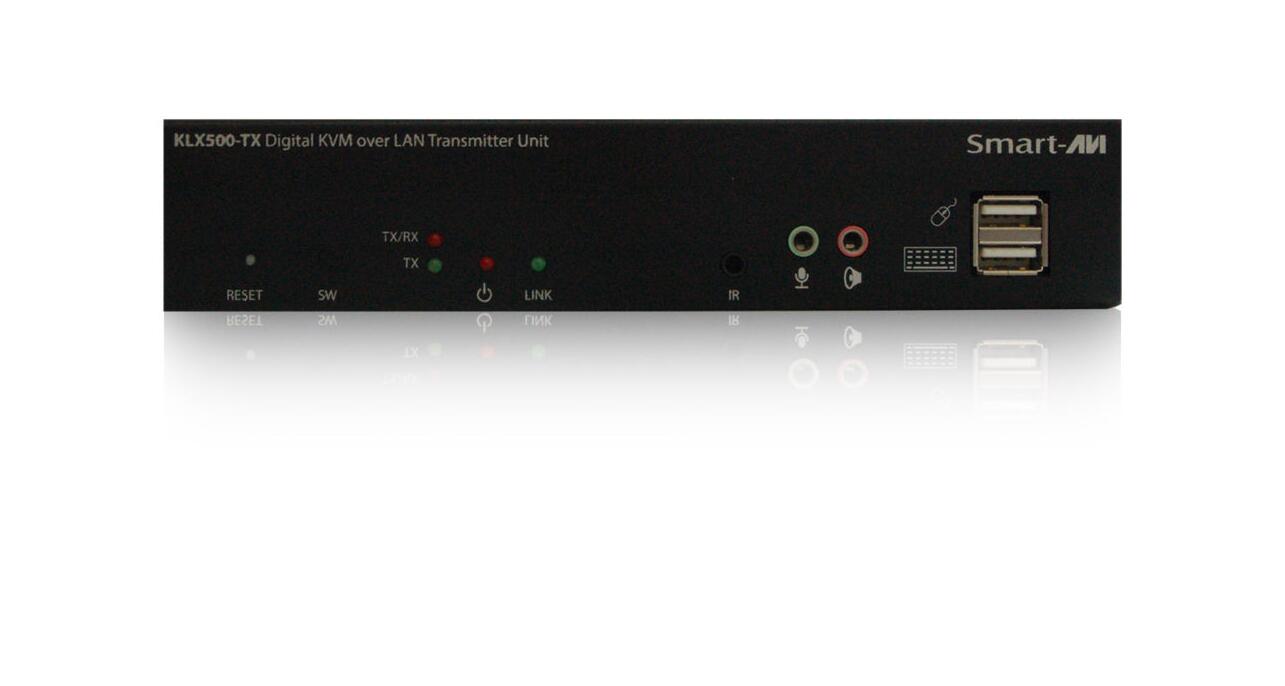

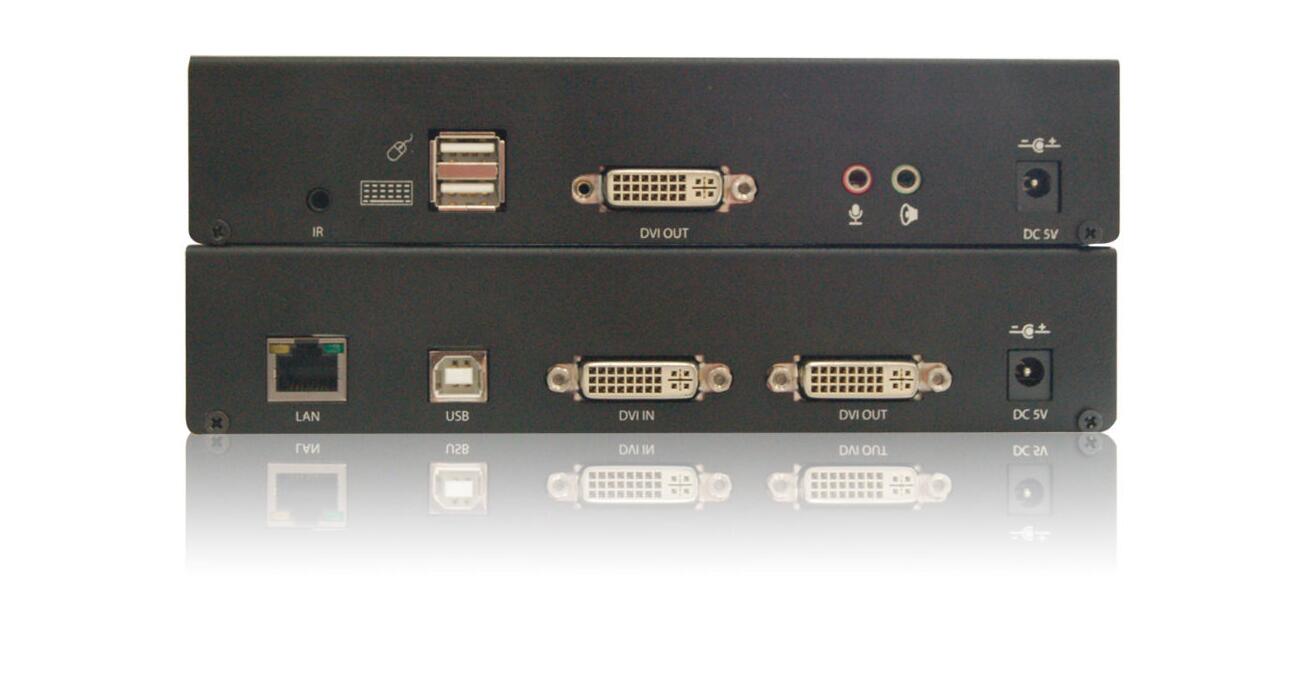

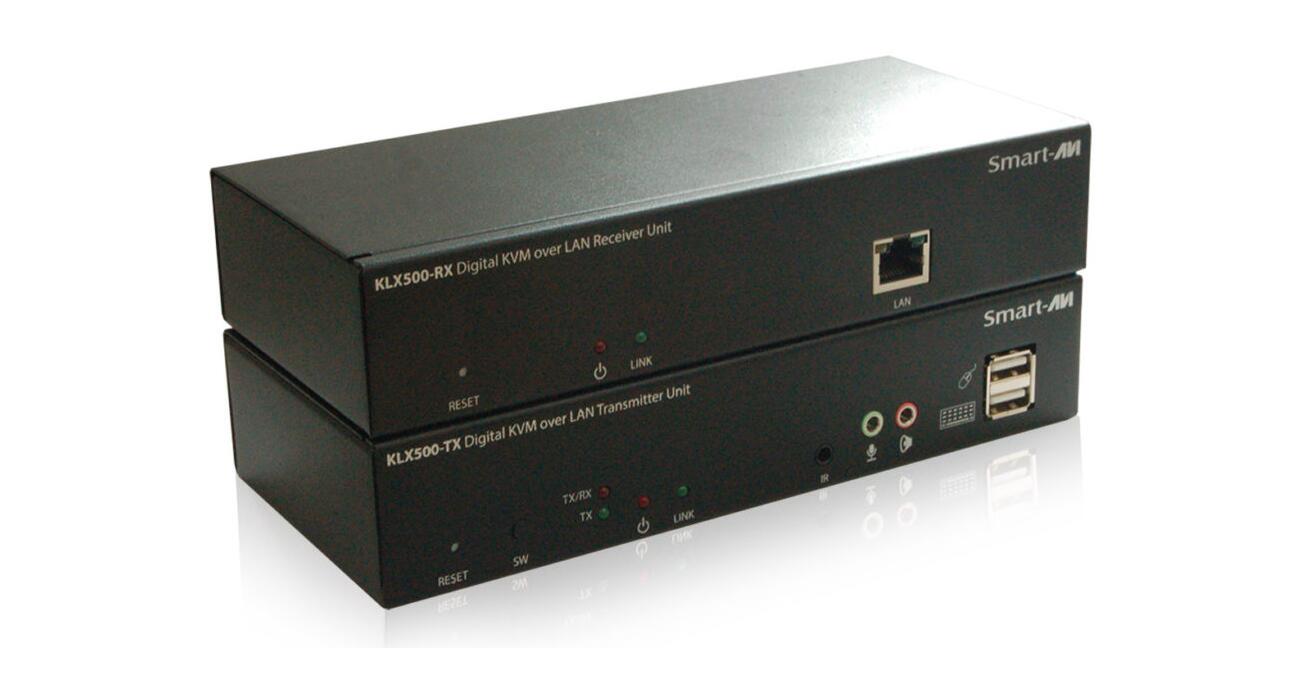

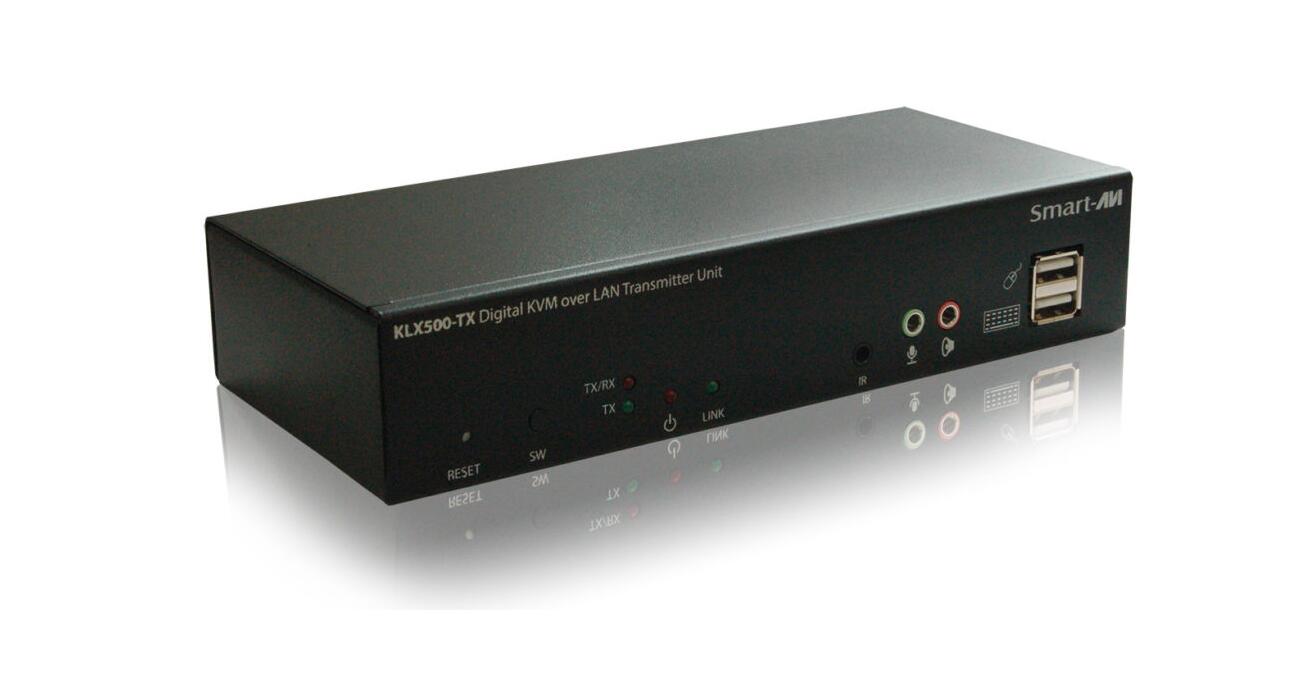

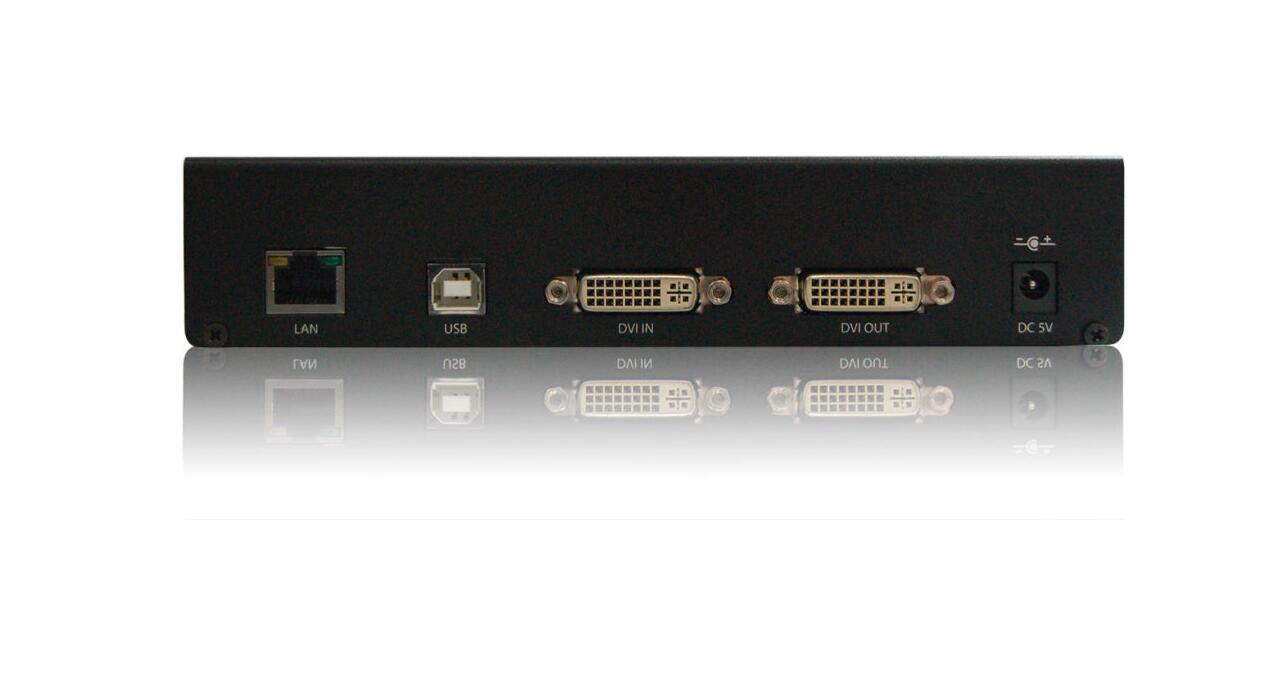

The KLX-500 Extender provides 500 feet of connectivity using Cat 5/5e/6 cables used in LAN infrastructure to extend KVM (Keyboard, Video and Mouse) operation of DVI and VGA input. Chain additional extenders to extend signals even further and transmit crystal clear audio-video signals in real-time. The KLX-500 is an ideal fit in preexisting LAN infrastructures, like corporate office environments and data centers. The KLX-500 supports full USB emulation and 1080p HD video up to 1920×1080 resolution at 60Hz. The KLX-500 features dual control operation for local and remote KVM support, so managing workflow is never more than a mouse-click away. Built with plug-and-play functionality, setting up and running KLX-500 is simple and seamless; no drivers or software installations required. The KLX-500 compresses data to utilize Cat 5/5e/6 cables at no loss to performance or picture quality. For the best visual and control results when going the distance, KLX-500 has your KVM and HD video needs covered.
Features:
Extends KVM operation by 500 feet via LAN (Cat 5/5e/6 cables) Chainable for thousands of feet of extension Supports DVI and VGA monitors Supports full USB emulation Audio input and output Dual control operation, both local and remote use of KVM Supports 1080p up to 1920×1080 resolution at 60Hz Plug-and-Play ready No software or driver required
Application:
Digital Signage Public Presentations Security and Surveillance PC Networking Healthcare Supervision Educational Spaces Hotel Displays Convention Centers Point of Sale and Retail Military and Government Systems Isolated, Remote Work Outposts Video Conferencing Control Room Systems Recording/Production Studios
| Video |
|---|
| Format | DVI-D | | HDTV Resolutions | 480p, 720p, 1080i, 1080p/60Hz/48bit | | TV Resolution | 480i | | Input Interface (TX) | DVI-I, 2 USB Type A Female & 1 USB Type B | | Output Interface (RX) | DVI-I, 2 USB Type A Female | | Input Cable Length (TX) | Up to 40 ft. | | Output Cable Length (RX) | Up to 40 ft. | | Audio |
|---|
| Format | Stereo | | Input Interface | 3.5 mm Jack Socket (Female) | | Output Interface | 3.5 mm Jack Socket (Female) | | System |
|---|
| Interface | RJ-45 | | Cable Requirements | CAT 5/5e/6 | | Maximum Length | 500 ft. | | Other |
|---|
| Power Adapter | 5VDC2A | | Dimensions | 8.75”W x 1.5”H x 3.5”D each | | Weight | 1.1 lbs. | | Approvals | UL, CE, ROHS Compliant | | Operating Temp. | 41 to 122°F (5 to 50 °C ) | | Storage Temp. | 32 to 149°F (0 to 65 °C ) | | Humidity | Up to 85% RH (no condensation) |
| DVI Extenders |
| DESCRIPTION |
|
|
| | KLX-500-V2-S |
| DVI-D KVM with Audio Point-to-Point Extender over LAN or CAT5/5e/6. [KLX-500-V2-TX-S, KLX-500-V2-RX-S, and 2 x PS5VD2A-Wall Mount] |
|
|
| | SFXPRO-4P-M-S |
| Quad DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extender up to 1,500 ft. Includes: [SFXPRO-4P-TX, SFXPRO-4P-RX, 2 X (CCPWR06)] |
|
|
| | SFXPRO-2P-M-S |
| Dual DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extender up to 1,500 ft. Includes: [SFXPRO-2P-TX, SFXPRO-2P-RX, 2 X (CCPWR06)] |
|
|
|
|
|
| | DVX Extenders |
| DESCRIPTION |
|
|
| | DVX-200PS |
| DVI-D/PC CAT6 STP Extender. Includes: [DVX-TX200P, DVX-RX200, (CCDVIMM06) & 2 x (PS5VDC2A)] | | DVX-200MS |
| DVI-D/MAC CAT6 STP Extender. Includes: [DVX-TX200M, DVX-RX200, (CCDVIMM06) & 2 x (PS5VDC2A)] | | DVX-TX200PS |
| DVI-D/PC CAT6 STP Transmitter. Includes: [DVX-TX200P, (CCDVIMM06), & (PS5VDC2A)] | | DVX-TX200MS |
| DVI-D/PC CAT6 STP Transmitter. Includes: [DVX-TX200M, (CCDVIMM06), & (PS5VDC2A)] | | DVX-RX200S |
| DVI-D CAT6 STP Receiver. Includes: [DVX-RX200 & (PS5VDC2A)] |
|
|
|
|
|
| | RK-DVX-TX4S |
| Powered Rack/Chassis with DVI-D CAT6 STP Transmitter, 4 Card Package. Includes: [RK-DVX-TX4 & CCPWR06] | | RK-DVX-TX8S |
| Powered Rack/Chassis with DVI-D CAT6 STP Transmitter, 8 Card Package. Includes: [RK-DVX-TX8 & CCPWR06] | | RK-DVX-TX16S |
| Powered Rack/Chassis with DVI-D CAT6 STP Transmitter, 16 Card Package. Includes: [RK-DVX-TX16 & CCPWR06] | | End Point Ordering Information | | DVX-RX200S |
| DVI-D Receiver over Cat6 STP. Includes: [DVX-RX200 & (PS5VDC2A)] | | DVX-TX200S |
| DVI-D Transmitter over Cat6 STP. Includes [DVX-TX200 & (PS5VDC2A)] |
|
|
|
|
|
| | DVX-200PS |
| DVI-D/PC CAT6 STP Extender. Includes: [DVX-TX200P, DVX-RX200, (CCDVIMM06) & 2 x (PS5VDC2A)] | | DVX-TX200PS |
| DVI-D/PC CAT6 STP Transmitter. Includes: [DVX-TX200P, (CCDVIMM06), & (PS5VDC2A)] | | DVX-RX200S |
| DVI-D CAT6 STP Receiver. Includes: [DVX-RX200 & (PS5VDC2A)] |
|
|
|
|
|
| | KLX-500 Series |
| DESCRIPTION |
|
|
| | KLX-RX500S |
| DVI-I (DVI/VGA), Audio, USB, IR, CAT5e/6 or LAN Receiver.
Includes: [KLX-RX500, PS5VD2A] |
|
|
| | KLX-TX500S |
| DVI-I (DVI/VGA), Audio, USB, IR, CAT5e/6 or LAN Transmitter.
Includes: [KLX-TX500, PS5VD2A] |
|
|
| | KLX-500-S |
| DVI-D KVM with Audio Point-to-Point Extender over LAN or CAT 5/5e/6. Includes: [KLX-TX500, KLX-RX500, and 2 x PS5VDC2A-Wall Mount] |
|
|
| | KLX-500-1U-S |
| 1080p HD DVI-D and KM Extender. Includes: [KLX-500-1U-TX, KLX-500-1U-RX |
|
|
| | KLX-500-DUO-RXS |
| DVI-I (DVI/VGA), Audio, USB, IR, CAT5e/6 or LAN Receiver.
Includes: [KLX-500-DUO-RX, PS5VD2A] |
|
|
| | KLX-500-DUO-TXS |
| DVI-I (DVI/VGA), Audio, USB, IR, CAT5e/6 or LAN Transmitter.
Includes: [KLX-500-DUO-TX, PS5VD2A] |
|
|
| | KLX-500-DUO-S |
| Dual-Port 1080p HD DVI-D and KM Extender. Includes: [KLX-500-DUO-TX, KLX-500-DUO-RX] |
|
|
|
|
|
| | LDX Series |
| DESCRIPTION |
|
|
| | LDX-S |
| DVI-D and RS-232 Extender: Includes: [LDX-TX, LDX-RX, 2x (PS5VDC2A)] |
|
|
| | LDX-Plus-S |
| DVI-D, USB, and RS-232 Extender. Includes: [LDX-Plus-TX, LDX-Plus-RX, 2x (PS5VDC4A)] |
|
|
| | LDX-2P-S |
| Dual DVI-D, USB, Dual RS-232, and Audio Extender. Includes: [LDX-2P-TX, LDX-2P-RX, 2x (PS5VDC4A)] |
|
|
| | LDX-4P-S |
| Quad DVI-D, USB, Dual RS-232, and Audio Extender. Includes: [LDX-4P-TX, LDX-4P-RX, 2x (PS5VDC4A)] |
|
|
|
|
|
| | SDX Series |
| DESCRIPTION |
|
|
| | SDX-S |
| DVI-D + RS232 Extender: Includes: [SDX-TX, SDX-RX, 2 X (PS5VDC2A)] |
|
|
| | SDX-Plus-S |
| DVI-D, USB, RS-232 Extender. Includes: [SDX-Plus-TX, SDX-Plus-RX, 2x(PS5VDC3A)] |
|
|
| | SDX-2P-S |
| Dual DVI-D + USB + RS232 + Audio Extender: Includes: [SDX-2P-TX, SDX-2P-RX, 2 X (PS5VDC4A)] |
|
|
| | SDX-4P-S |
| Quad DVI-D + USB + RS232 + Audio Extender: Includes: [SDX-4P-TX, SDX-4P-RX, 2 X (PS5VDC4A)] |
|
|
|
|
|
|
|
