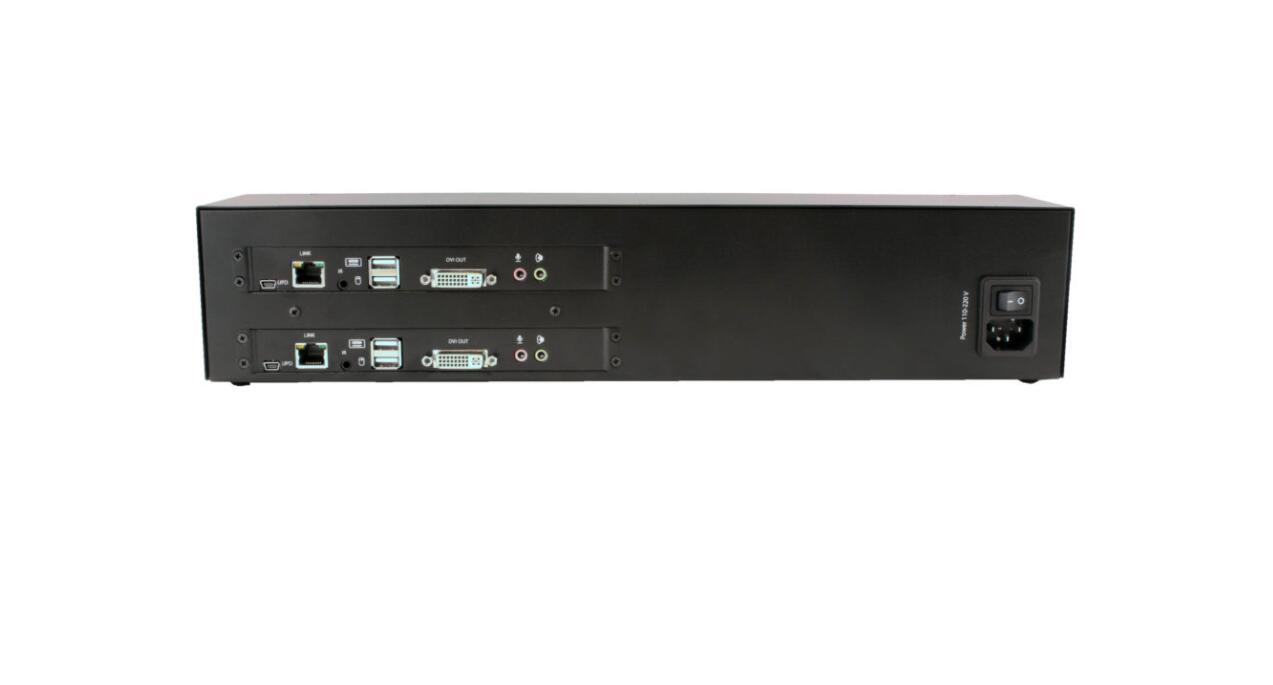

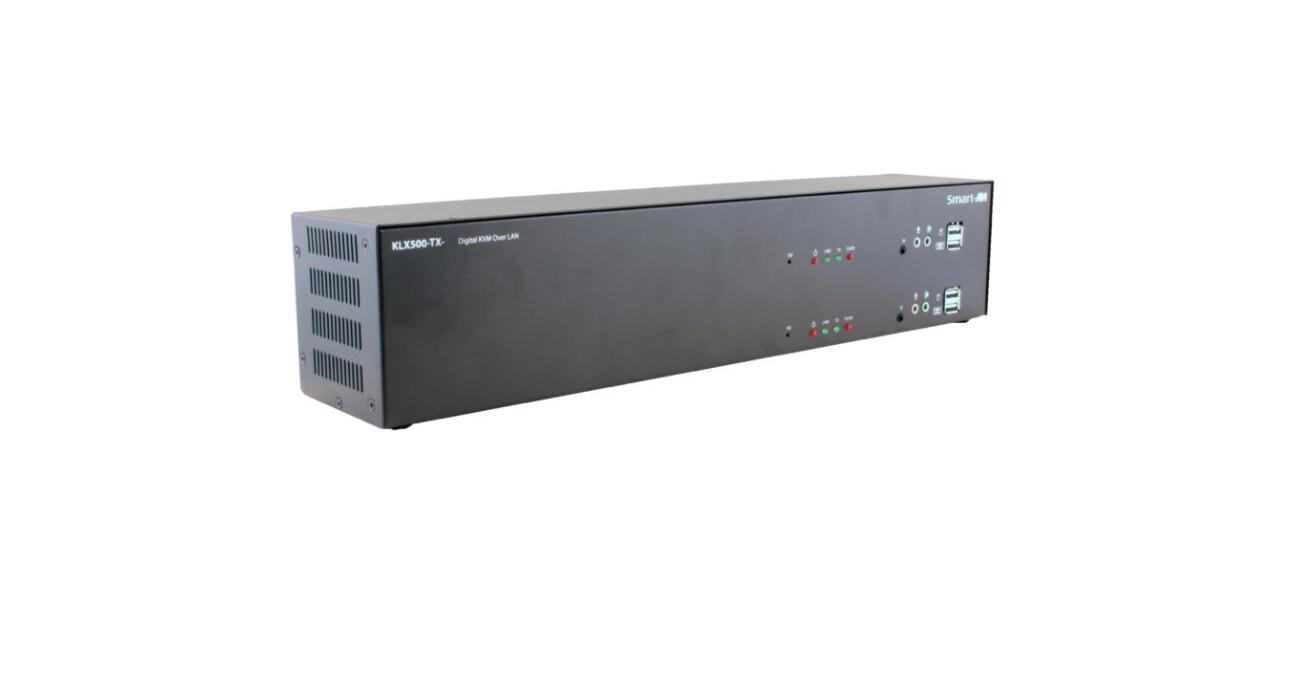

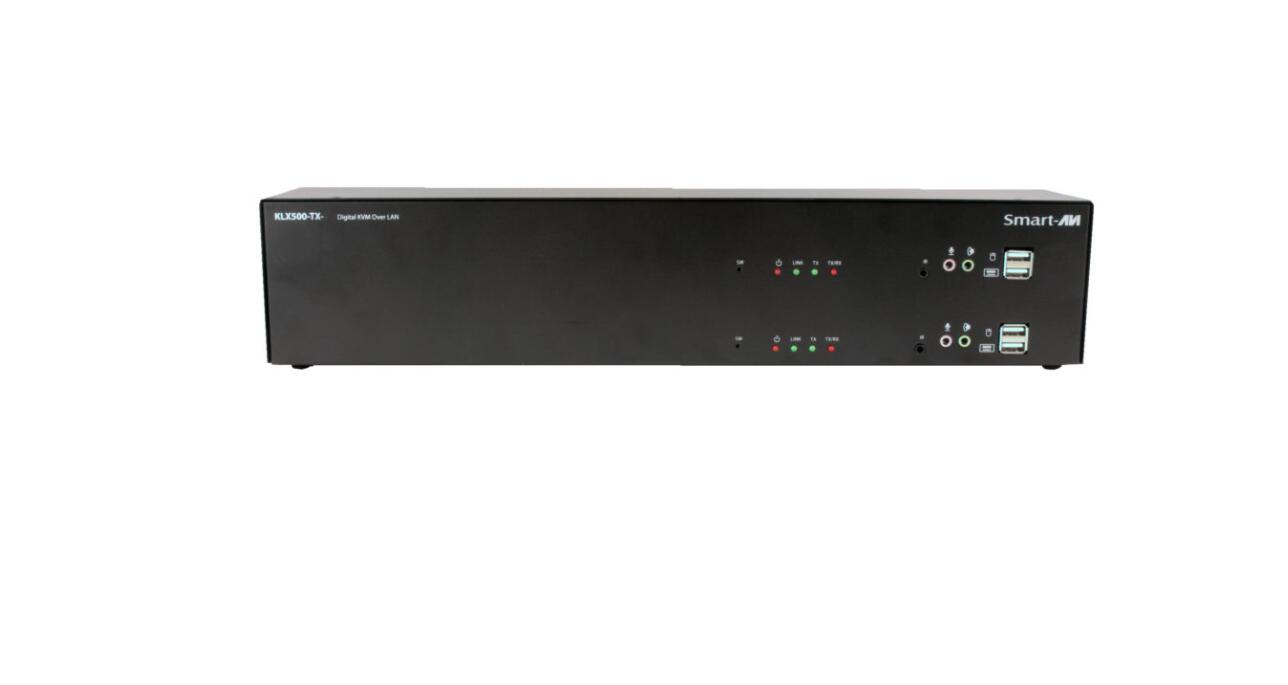

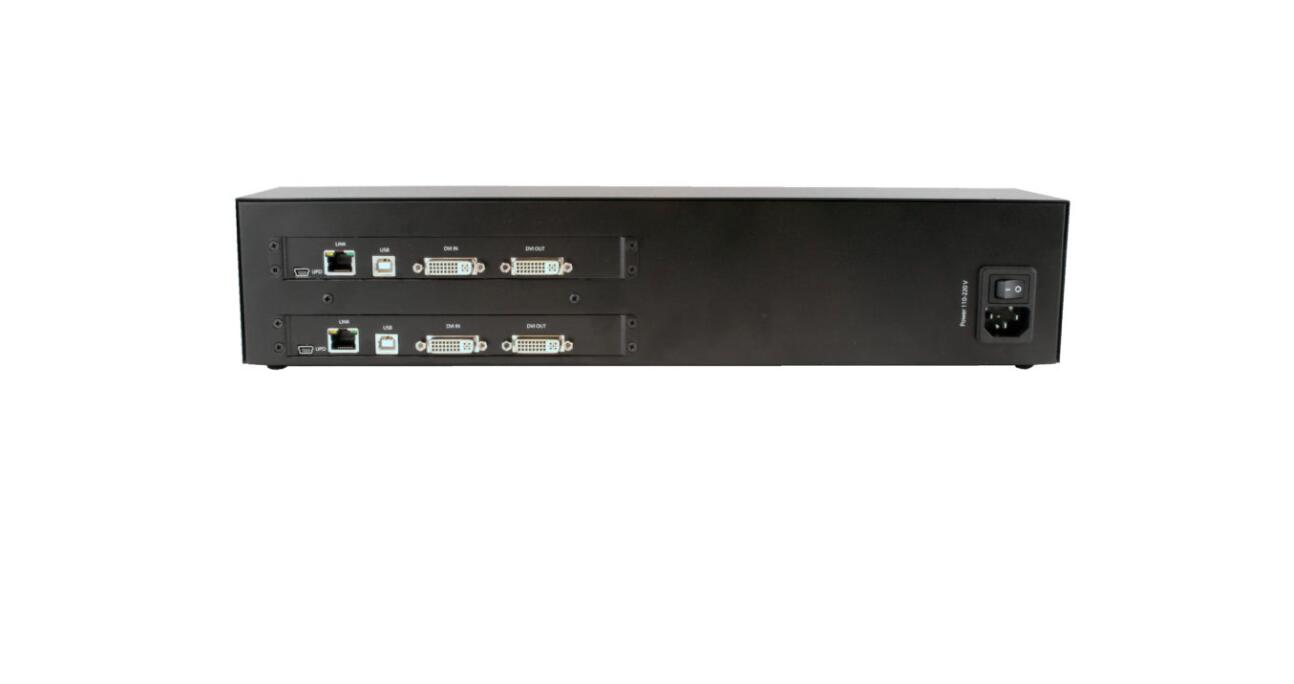

The KLX-500-Duo is an industrial-strength dual-port DVI-D with VGA support and KVM signal extender. Capable of transmitting 1080p HD video to two displays up to 500 feet away via CAT 5/5e/6 cables over LAN, the KLX-500-Duo also allows dual keyboard-mouse operation extension for local and remote real-time system management; great for supervising and managing projects from the convenience of your personal workstation. KLX-500-Duo is plug-and-play ready for easy set-ups, and chainable with other KLX extenders to connect with workstations over 500 feet away. The KLX-500-Duo is great for consolidating space and workflow alike, so don’t let distance limit your systems: go further with the KLX-500-Duo.
Features:
Extends KVM operation by 500 feet via LAN (Cat 5/5e/6 cables) Chainable for thousands of feet of extension Supports 2 DVI monitors simultaneously Supports full USB emulation Two audio inputs and outputs Supports local and remote Keyboard, Video, Mouse control operation with two individual KVM devices Supports 1080p up to 1920×1080 resolution at 60Hz Plug-and-Play ready; Industrial enclosure

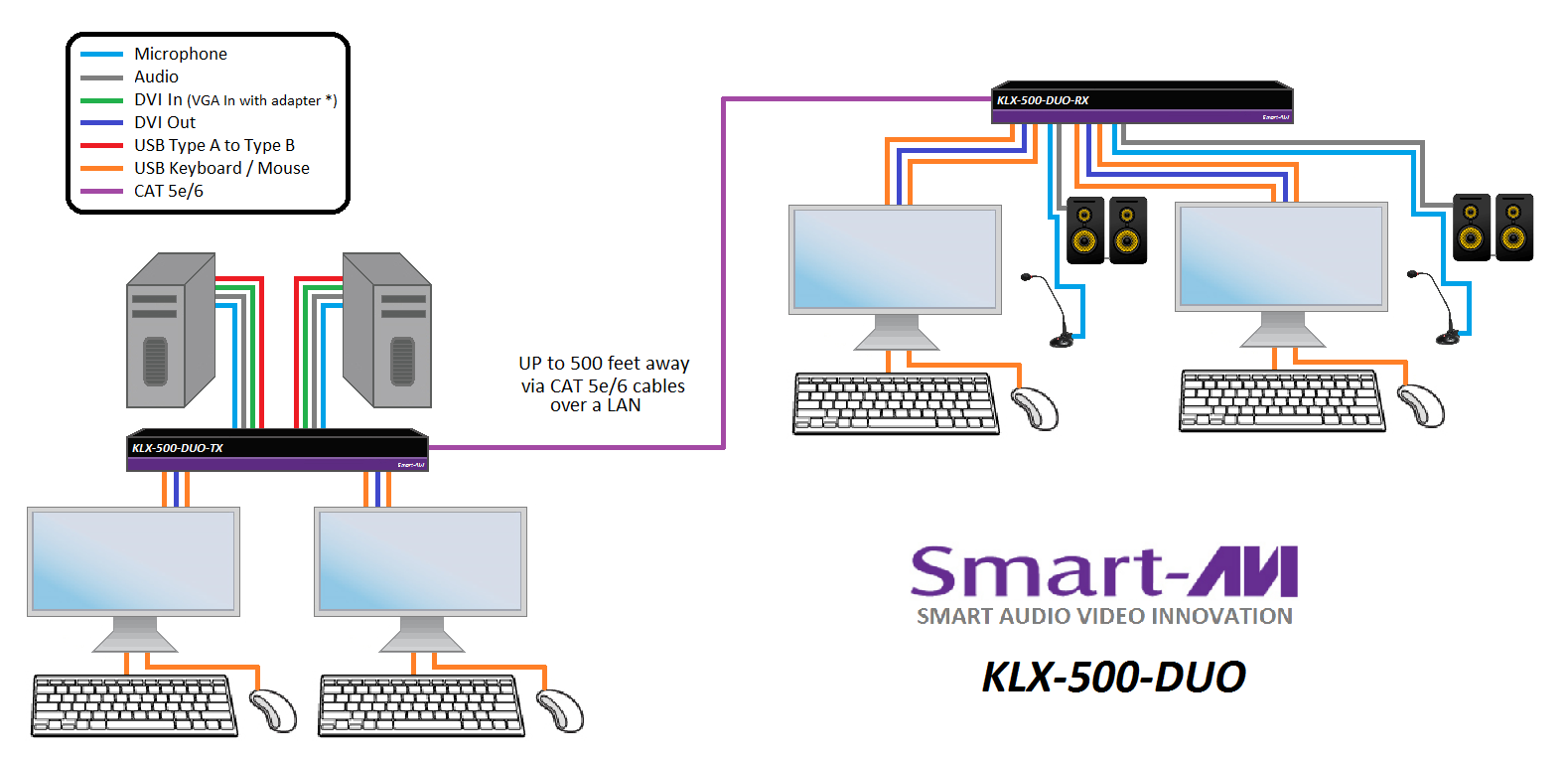

Application:
| Video |
|---|
| Format | DVI-D | | Resolution | Up to 1080p | | Transmitter (TX) Interface | DVI-I, (4) USB Type A, (2) USB Type B | | Receiver (RX) Interface | DVI-I, (4) USB Type A | | Input/Output Cable Length | Up to 40 ft. | | Audio |
|---|
| Format | Stereo | | Interface | 3.5mm Jack Socket (female) | | System |
|---|
| Interface | RJ-45 | | Cable Requirements | CAT 5/5e/6 | | Maximum Length | 500 ft.” | | Other |
|---|
| Power | External 100-240 VAC | | Dimensions | 17.125″W X 3.75″D X 4″H each | | Weight | 2.5 lbs each | | Approvals | UL, CE, ROHS Compliant | | Operating Temp. | 41 to 122°F (5 to 50 °C ) | | Storage Temp. | 32 to 149°F (0 to 65 °C ) | | Humidity | Up to 85% RH (no condensation) |
| DVI Extenders |
| DESCRIPTION |
|
|
| | KLX-500-V2-S |
| DVI-D KVM with Audio Point-to-Point Extender over LAN or CAT5/5e/6. [KLX-500-V2-TX-S, KLX-500-V2-RX-S, and 2 x PS5VD2A-Wall Mount] |
|
|
| | SFXPRO-4P-M-S |
| Quad DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extender up to 1,500 ft. Includes: [SFXPRO-4P-TX, SFXPRO-4P-RX, 2 X (CCPWR06)] |
|
|
| | SFXPRO-2P-M-S |
| Dual DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Extender up to 1,500 ft. Includes: [SFXPRO-2P-TX, SFXPRO-2P-RX, 2 X (CCPWR06)] |
|
|
|
|
|
| | DVX Extenders |
| DESCRIPTION |
|
|
| | DVX-200PS |
| DVI-D/PC CAT6 STP Extender. Includes: [DVX-TX200P, DVX-RX200, (CCDVIMM06) & 2 x (PS5VDC2A)] | | DVX-200MS |
| DVI-D/MAC CAT6 STP Extender. Includes: [DVX-TX200M, DVX-RX200, (CCDVIMM06) & 2 x (PS5VDC2A)] | | DVX-TX200PS |
| DVI-D/PC CAT6 STP Transmitter. Includes: [DVX-TX200P, (CCDVIMM06), & (PS5VDC2A)] | | DVX-TX200MS |
| DVI-D/PC CAT6 STP Transmitter. Includes: [DVX-TX200M, (CCDVIMM06), & (PS5VDC2A)] | | DVX-RX200S |
| DVI-D CAT6 STP Receiver. Includes: [DVX-RX200 & (PS5VDC2A)] |
|
|
|
|
|
| | RK-DVX-TX4S |
| Powered Rack/Chassis with DVI-D CAT6 STP Transmitter, 4 Card Package. Includes: [RK-DVX-TX4 & CCPWR06] | | RK-DVX-TX8S |
| Powered Rack/Chassis with DVI-D CAT6 STP Transmitter, 8 Card Package. Includes: [RK-DVX-TX8 & CCPWR06] | | RK-DVX-TX16S |
| Powered Rack/Chassis with DVI-D CAT6 STP Transmitter, 16 Card Package. Includes: [RK-DVX-TX16 & CCPWR06] | | End Point Ordering Information | | DVX-RX200S |
| DVI-D Receiver over Cat6 STP. Includes: [DVX-RX200 & (PS5VDC2A)] | | DVX-TX200S |
| DVI-D Transmitter over Cat6 STP. Includes [DVX-TX200 & (PS5VDC2A)] |
|
|
|
|
|
| | DVX-200PS |
| DVI-D/PC CAT6 STP Extender. Includes: [DVX-TX200P, DVX-RX200, (CCDVIMM06) & 2 x (PS5VDC2A)] | | DVX-TX200PS |
| DVI-D/PC CAT6 STP Transmitter. Includes: [DVX-TX200P, (CCDVIMM06), & (PS5VDC2A)] | | DVX-RX200S |
| DVI-D CAT6 STP Receiver. Includes: [DVX-RX200 & (PS5VDC2A)] |
|
|
|
|
|
| | KLX-500 Series |
| DESCRIPTION |
|
|
| | KLX-RX500S |
| DVI-I (DVI/VGA), Audio, USB, IR, CAT5e/6 or LAN Receiver.
Includes: [KLX-RX500, PS5VD2A] |
|
|
| | KLX-TX500S |
| DVI-I (DVI/VGA), Audio, USB, IR, CAT5e/6 or LAN Transmitter.
Includes: [KLX-TX500, PS5VD2A] |
|
|
| | KLX-500-S |
| DVI-D KVM with Audio Point-to-Point Extender over LAN or CAT 5/5e/6. Includes: [KLX-TX500, KLX-RX500, and 2 x PS5VDC2A-Wall Mount] |
|
|
| | KLX-500-1U-S |
| 1080p HD DVI-D and KM Extender. Includes: [KLX-500-1U-TX, KLX-500-1U-RX |
|
|
| | KLX-500-DUO-RXS |
| DVI-I (DVI/VGA), Audio, USB, IR, CAT5e/6 or LAN Receiver.
Includes: [KLX-500-DUO-RX, PS5VD2A] |
|
|
| | KLX-500-DUO-TXS |
| DVI-I (DVI/VGA), Audio, USB, IR, CAT5e/6 or LAN Transmitter.
Includes: [KLX-500-DUO-TX, PS5VD2A] |
|
|
| | KLX-500-DUO-S |
| Dual-Port 1080p HD DVI-D and KM Extender. Includes: [KLX-500-DUO-TX, KLX-500-DUO-RX] |
|
|
|
|
|
