What is the FVX-3000-Pro?The FVX-3000-PRO is a single-mode fiber extender for VGA video, stereo audio, RS-232, and USB keyboard-mouse signals. Using its powerful fiber optic technology, the FVX-3000-PRO sends 1080p (1920×1080 @ 60Hz) Full HD audio-video and keyboard-mouse signals up to 10km (6.2m) away at lightning fast speeds without the risk of interference or interception. What are the Applications of the FVX-3000-Pro?The FVX-3000-Pro excels at transmitting and receiving HD VGA signals over long distances at incredible speeds. Outfitted with fiber optic cables popular in military and government operations, the FVX-3000-Pro is secure and resistant to outside interference. It can be used for KVM activities in businesses, corporations, industrial control rooms, hospitals, server hubs, banking facilities, and more. The FVX-3000-Pro also excels at securely sending confidential media and files across systems thousands of feet apart, ideal for communications, asset delivery, and remote access to sensitive digital materials.
Features:
Single-mode fiber optic extension up to 10km (6.2m) Supports VGA Supports video resolutions up to 1080p Full HD (1920×1080 @ 60Hz) Supports USB 2.0 (keyboard-mouse only) Supports stereo audio Supports RS-232 Supports all computer operating systems Compact, durable chassis

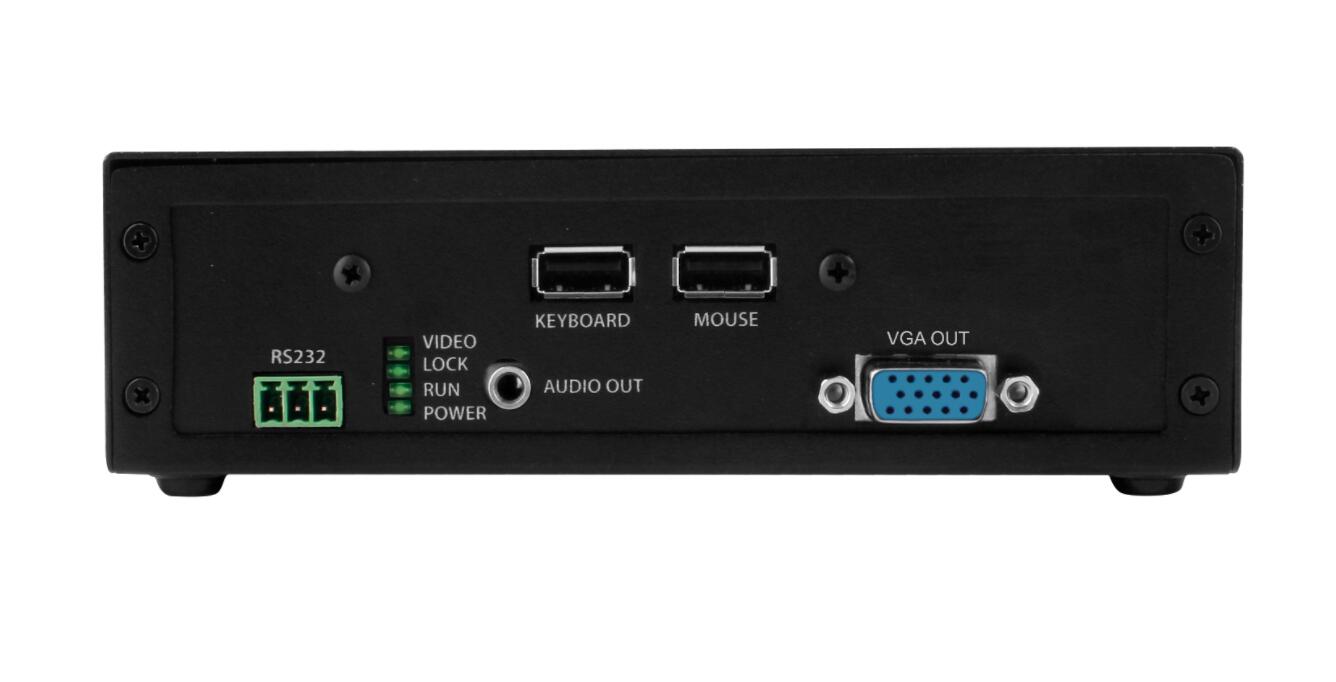

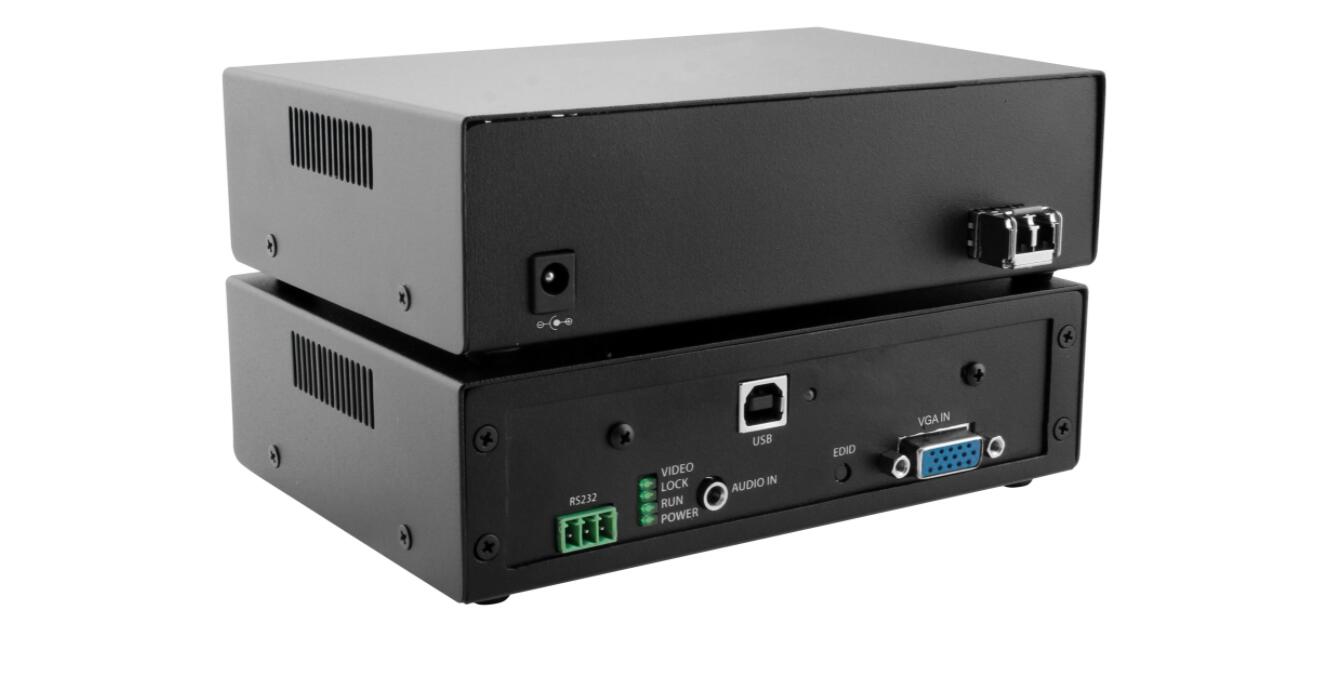

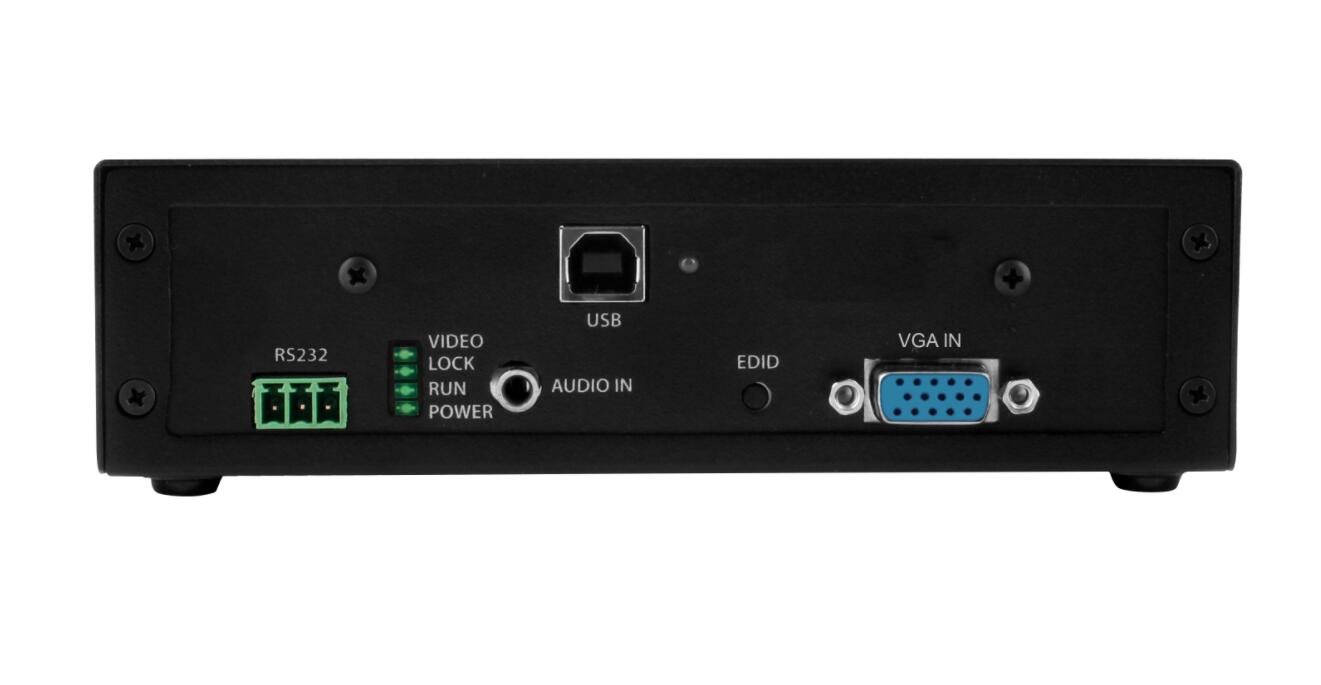

Includes: (1) FVX-TX3000P: VGA/Audio/RS-232/USB KM Transmitter (1) FVX-RX3000P: VGA/Audio/RS-232/USB KM Receiver (2) PS12VDC2A Power Supplies (1) Quick Start & Installation Guide
Application:
Industrial Control Rooms Isolated Long-Range Workstations Corporate Communications Remote Asset Management Long-Range KVM Applications Medical Communication and Administration Financial Management & Communications
| Video Data |
|---|
| Format | VGA Female | | Input | (1) VGA Female | | Output | (1) VGA Female | | Max. Pixel Clock | 165 MHz | | Max. Data Rate | 6.75 Gbps | | Resolution | Up to 1080p (1920×1080 @ 60Hz) | | Input Cable Length | Up to 20 ft. | | Output Cable Length | Up to 20 ft. | | Audio |
|---|
| Input | (1) 3.5mm stereo audio jack | | Output | (1) 3.5mm stereo audio jack | | USB: |
|---|
| Signaling | USB Keyboard-Mouse Only | | Input | (1) USB Type-B | | Output | (2) USB Type A | | RS-232: |
|---|
| Signal Direction | Unidirectional | | Max. Baud Rate | 115200bps (self-adaptive) | | Data Bits | 8 | | OTHER: |
|---|
| Power Adaptor | 12VDC2A | | Dimensions | 6.25” W x 1.875” H x 5.0” D | | Weight (TX & RX) | 1.45 lbs (0.725 lbs per unit) | | Approvals | UL, CE, ROHS Compliant | | Fiber Interface & Type | LC Single-Mode Fiber | | Transmission Distance | Up to 10km (6.2 miles) | | Working Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 149 °F (-20 to 65°C) | | Working Humidity | Up to 85% RH (no condensation) | | Storage Humidity | Up to 90% RH (no condensation) |
| VGA Kvm Extender |
| DESCRIPTION |
|
|
| SM-VDX-500-SH-S |
| Single Head VGA, USB 2.0, CAT5/5e/6 Extender. Includes: [SM-VDX-500-SH-TX-S, SM-VDX-500-SH-RX-S, 2 X (PS5VD3A)] |
|
|
| | SM-VDX-500-DH-S |
| Dual Head VGA, USB 2.0, CAT5/5e/6 Extender. Includes: [SM-VDX-500-DH-TX-S, SM-VDX-500-DH-RX-S, 2 X (PS5VD3A)] |
|
|
| | SM-VDX-100-DH-S |
| Dual Head VGA, USB 2.0, CAT5/5e/6 Extender. Includes: [SM-VDX-100-DH-TX-S, SM-VDX-100-DH-RX-S, 2 X (PS5VD3A)] |
|
|
| | SM-VDX-100-SH-S |
| Single Head VGA, USB 2.0, CAT5/5e/6 Extender. Includes: [SM-VDX-100-SH-TX-S, SM-VDX-100-SH-RX-S, 2 X (PS5VD3A)] |
|
|
| | UX-PLUSS |
| WUXGA+USB: Includes, UX-TXPLUS, UX-RXPLUS, 2 PS5VDC2A | | UX-RXPLUS |
| WUXGA+USB Receiver. Includes PS5VDC2A | | UX-TXPLUS |
| WUXGA+USB Transmitter. Includes PS5VDC2A | | CCKVMUSB6F |
| Assembled KVM USB Cable, 6ft. |
|
|
|
|
|
| | DP Kvm Extender |
| DESCRIPTION |
|
|
| | DPX-XT-S |
| Single Head DisplayPort, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [DPX-XT-TX-S, DPX-XT-RX-S, 2 X (PS5VD3A-WMT)] | | DPX-XT-TX-S |
| Single Head DisplayPort, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [DPX-XT-TX-S, PS5VD3A-WMT] | | DPX-XT-RX-S |
| Single Head DisplayPort, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [DPX-XT-RX-S, PS5VD3A-WMT] |
|
|
| | DPX-XT-4P-S |
| Quad Head DisplayPort, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [DPX-XT-4P-TX-S, DPX-XT-4P-RX-S, 2 X (PS5VD3A-WMT)] | | DPX-XT-4P-TX-S |
| Quad Head DisplayPort, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [DPX-XT-4P-TX-S, PS5VD3A-WMT] | | DPX-XT-4P-RX-S |
| Quad Head DisplayPort, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [DPX-XT-4P-RX-S, PS5VD3A-WMT] |
|
|
| | DPX-XT-2P-S |
| Dual Head DisplayPort, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [DPX-XT-2P-TX-S, DPX-XT-2P-RX-S, 2 X (PS5VD3A-WMT)] | | DPX-XT-2P-TX-S |
| Dual Head DisplayPort, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [DPX-XT-2P-TX-S, PS5VD3A-WMT] | | DPX-XT-2P-RX-S |
| Dual Head DisplayPort, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [DPX-XT-2P-RX-S, PS5VD3A-WMT] |
|
|
|
|
|
| | DVI Kvm Extender |
| DESCRIPTION |
|
|
| | SDX-XT-S |
| DVI-D, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [SDX-XT-TX-S, SDX-XT-RX-S, 2 X (PS5VD3A)] | | SDX-XT-TX-S |
| DVI-D, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [SDX-XT-TX-S, PS5VD3A-WLLMNT] | | SDX-XT-RX-S |
| DVI-D, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [SDX-XT-RX-S, PS5VD3A-WLLMNT] |
|
|
| | SDX-XT-2P-S |
| Dual Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [SDX-XT-2P-TX-S, SDX-XT-2P-RX-S, 2 X (PS5VD3A)] | | SDX-XT-2P-TX-S |
| Dual Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [SDX-XT-2P-TX-S, PS5VD3A-WLLMNT] | | SDX-XT-2P-RX-S |
| Dual Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [SDX-XT-2P-RX-S, PS5VD3A-WLLMNT] |
|
|
| | SDX-XT-4P-S |
| Quad Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [SDX-XT-4P-TX-S, SDX-XT-4P-RX-S, 2 X (PS5VD3A)] | | SDX-XT-4P-TX-S |
| Quad Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [SDX-XT-4P-TX-S, PS5VD3A-WLLMNT] | | SDX-XT-4P-RX-S |
| Quad Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [SDX-XT-4P-RX-S, PS5VD3A-WLLMNT] |
|
|
| | KLX-500-S |
| DVI-D KVM with Audio Point-to-Point Extender over LAN or CAT 5/5e/6. Includes: [KLX-TX500, KLX-RX500, and 2 x PS5VDC2A-Wall Mount] |
|
|
|
|
|
| | HDMI Kvm Extender |
| DESCRIPTION |
|
|
| | DCX-XT-2P-S |
| Dual Head HDMI, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [DCX-XT-2P-TX-S, DCX-XT-2P-RX-S, 2 X (PS5VD3A)] | | DCX-XT-2P-TX-S |
| Dual Head HDMI, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [DCX-XT-2P-TX-S, PS5VD3A-WLLMNT] | | DCX-XT-2P-RX-S |
| Dual Head HDMI, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [DCX-XT-2P-RX-S, PS5VD3A-WLLMNT] |
|
|
| | DCX-XT-S |
| HDMI, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [DCX-XT-TX-S, DCX-XT-RX-S, 2 X (PS5VD3A)] | | DCX-XT-TX-S |
| HDMI, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [DCX-XT-TX-S, PS5VD3A-WLLMNT] | | DCX-XT-RX-S |
| HDMI, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [DCX-XT-RX-S, PS5VD3A-WLLMNT] |
|
|
| | HDX-XT-4P-S |
| Quad Head HDMI, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [HDX-XT-4P-TX-S, HDX-XT-4P-RX-S, 2 X (PS5VD3A-WMT)] | | HDX-XT-4P-TX-S |
| Quad Head HDMI, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [HDX-XT-4P-TX-S, PS5VD3A-WMT] | | HDX-XT-4P-RX-S |
| Quad Head HDMI, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [HDX-XT-4P-RX-S, PS5VD3A-WMT] |
|
|
| | HDX-XT-2P-S |
| Dual Head HDMI, USB 2.0, Audio, CAT5/5e/6 Extender. Includes: [HDX-XT-2P-TX-S, HDX-XT-2P-RX-S, 2 X (PS5VD3A-WMT)] | | HDX-XT-2P-TX-S |
| Dual Head HDMI, USB 2.0, Audio, CAT5/5e/6 Transmitter. Includes: [HDX-XT-2P-TX-S, PS5VD3A-WMT] | | HDX-XT-2P-RX-S |
| Dual Head HDMI, USB 2.0, Audio, CAT5/5e/6 Receiver. Includes: [HDX-XT-2P-RX-S, PS5VD3A-WMT] |
|
|
| | HDX-XT-S |
| (1) HDX-XT 4K Extender with USB 2.0 Transmitter and Receiver Unit(s); Quickstart Guide | | PS12VDC1A |
| (2) Power Supply PS12VD2A-WLLMNT |
|
|
|
|
|
| | Fiber Optic Extender |
| DESCRIPTION |
|
|
| | VGA |
|
| | FVX-3000-PROS |
| Single-Mode VGA, Stereo Audio, RS-232, and USB Keyboard-Mouse Fiber Extender. Includes: [FVX-TX3000P, FVX-RX3000P, FVX-3000TX-TR, FVX-3000RX-TR & (PS12VDC2A)] |
|
|
| | DVI |
|
| | FDX-Mini-S |
| 1080p HD DVI-D, USB, RS232 Fiber Optic Extender. Includes: [FDX-MINI-TX, FDX-MINI-RX and 2x (PS5VD4A)] | | FDX-AVPRO-S |
| 1080p HD DVI-D, RS232 Fiber Optic Extender. Includes: [FDX-AVPRO-TX, FDX-AVPRO-RX and 2x (PS12VDC1A)] | | FDX-3000-PROS |
| Single-Mode DVI-D, Stereo Audio, RS-232, and USB Keyboard-Mouse Fiber Extender. Includes: [FDX-TX3000P, FDX-RX3000P, FDX-3000TX-TR, FDX-3000RX-TR & (PS12VDC2A)] |
|
|
| | HDMI |
|
| | HFX-S |
| HDMI Point to Point Fiber Extender, Includes:[HFX-TX, HFX-RX, 2 x(PS5VD2A)] |
|
|
| | DFX-XT-2P-S |
| 2 HDMI, USB 2.0, Audio via Dual Fiber Extender. Includes: [DFX-XT-2P-TX-S, DFX-XT-2P-RX-S, 2 X (PS5VD3A)] | | DFX-XT-2P-TX-S |
| 2 HDMI, USB 2.0, Audio via Dual Fiber Transmitter. Includes: [DFX-XT-2P-TX-S, PS5VD3A-WLLMNT] | | DFX-XT-2P-RX-S |
| 2 HDMI, USB 2.0, Audio via Dual Fiber Receiver. Includes: [DFX-XT-2P-RX-S, PS5VD3A-WLLMNT |
|
|
| | DFX-XT-S |
| HDMI, USB 2.0, Audio via Dual Fiber Extender. Includes: [DFX-XT-TX-S, DFX-XT-RX-S, 2 X (PS5VD3A)] | | DFX-XT-TX-S |
| HDMI, USB 2.0, Audio via Dual Fiber Transmitter. Includes: [DFX-XT-TX-S, PS5VD3A-WLLMNT] | | DFX-XT-RX-S |
| HDMI, USB 2.0, Audio via Dual Fiber Receiver. Includes: [DFX-XT-RX-S, PS5VD3A-WLLMNT] |
|
|
| | USB |
|
| | FX-USBS |
| USB 2.0 Fiber Extender. Includes: [FX-TXUSB, FX-RXUSB, 2 x (PS5VD4A) and CCUSBAB06] | | FX-USB-V2-S |
| USB 2.0 over Multimode Fiber Extender. Includes: [FX-USB-V2-TX-S, FX-USB-V2-RX-S, CCUSBAB06 and 2 X (PS5VD4A)] |
|
|
|
|
|
|
|
