• Connector (transmitter) : DVI-D (male)
• Connector (receiver ): DVI-D (male)
• Optic Fiber : Copper + Optical Hybrid
• Pixel Clock : 165MHz (single link)
• Supporting Resolution & Distance

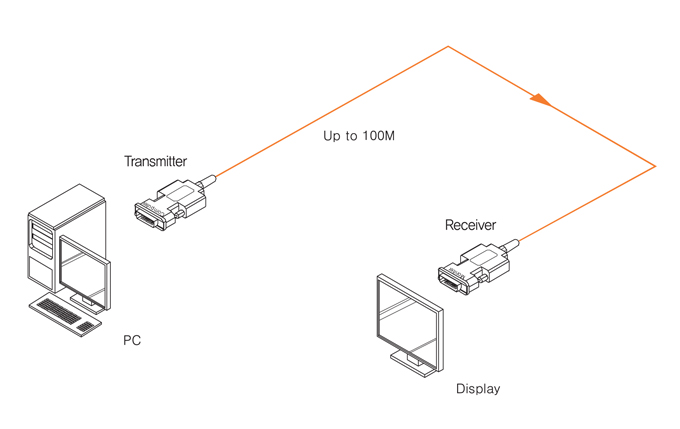

- WUXGA(1920 x 1200) @ 60Hz / 100M (330ft)
• Power Consumption (transmitter) : 0.85W (max)
• Power Consumption (receiver) : 0.85W (max)
• Power Supply (optional) : 100~240V DC 5V, 2A
• Dimensions : Connector 40W x 71D x 15H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C |
