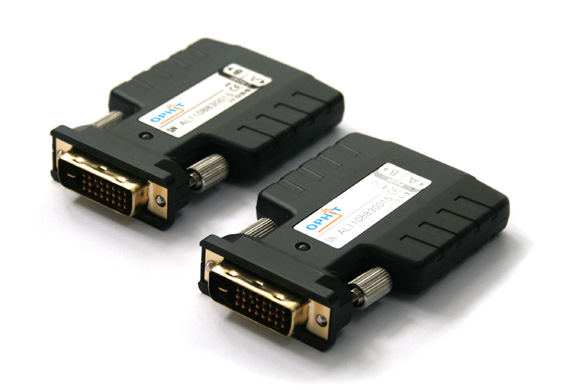

OPHIT's DQSP over two fiber solution lets you extend dual link digital signal up to 300meters (1000 feet). Maximum supporting resolution is up to WQXGA (2560x1600@60Hz).
Features

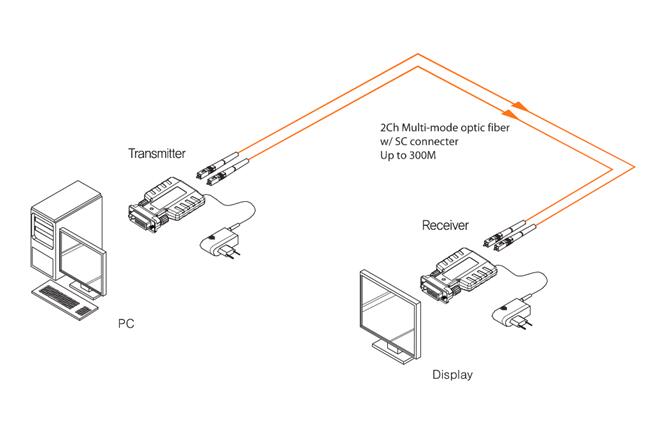

• High speed and long distance transmission by 2channel SC type multi-mode optical fiber
• TMDS video signal and EDID data are transmitted over optical fiber
• Extends up to 300meters
• It can support single link and dual link both
• DVI v1.0 Compliant
• HDMI v1.3 and HDCP compliant
• EMC & Safty : CE, FCC |
• Connector (transmitter) : DVI-D (male), SC connector (female)
• Connector (receiver) : DVI-D (male), SC connector (female)

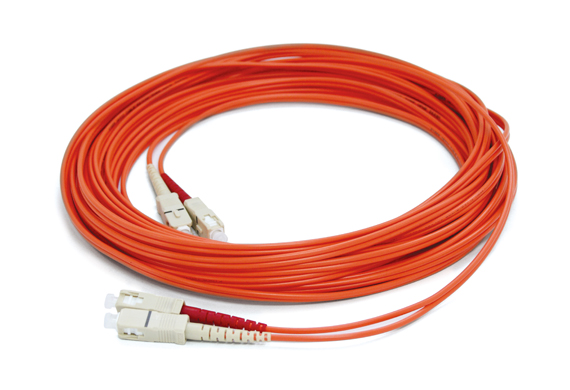

• Optic Fiber : 2ch / Multi-mode(50/125μm)
• Video Bandwidth (pixel clock) : Single link (max 225MHz) / Dual link
• Supporting Resolution & Distance
- WQXGA (2560x1600) @ 60Hz / 300M (1,000ft)
• Power Consumption (transmitter) : Dual link 1.6W (max)
• Power Consumption (receiver) : 1.65W (max)
• Power Supply (transmitter) : 100~240V DC 5V, 2A
• Power Supply (receiver) : 100~240V DC 5V, 2A
• Dimensions : 75W x 50D x 15H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C |
|
