DQL

简介：	DVI dual link fiber optic 7ch extender
类型：	DVI 视频延长器
品牌：	OPHIT
型号：	DQL

马上咨询

产品详情

产品特点

应用方案

文档下载

立即订购

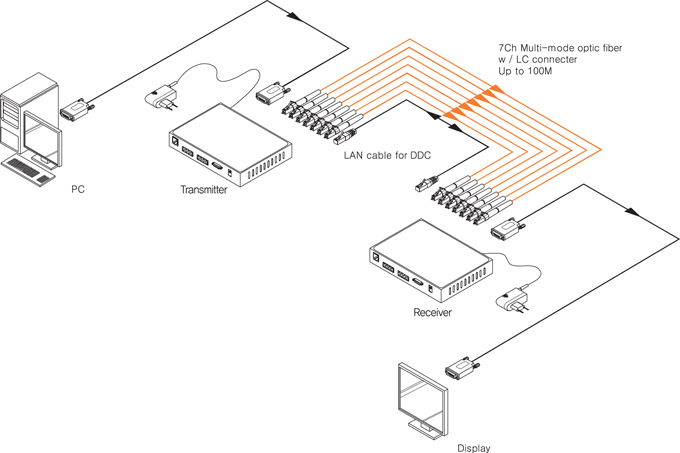

OPHIT’s DQL with fiber optical cable system let your Dual digital flat panel display extend up to 100 meters (330 feet) away from host by TMDS digital signal transmission.

Features

• High speed and long distance transmission by 7 channel LC type multi-mode optical fiber
• Extend up to 100meters (330ft)
• Self EDID detecting function for EDID information.

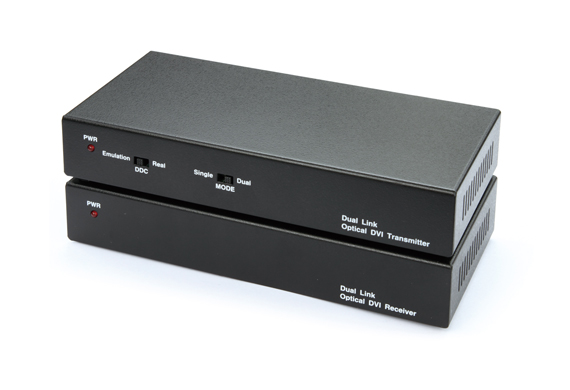

• Supports Single link and Dual link by selectable function switch
• It can support two mode for DDC
- Real mode : Uses one CAT-5 cable for DDC
- Emulation : Pseudo-DDC detection function for EDID information (no need of CAT-5 Connection)
• EMC & Safety : CE, FCC

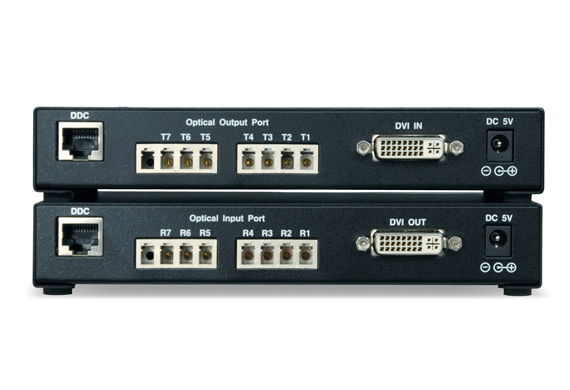

• Connector (transmitter) : DVI-I (female), LC connector (female), RJ-45 Jack (female)
• Connector (receiver) : DVI-I (female), LC connector (female), RJ-45 Jack (female)
• Optic Fiber : 7ch / Multi-mode(50/125μm)
• Video Bandwidth (pixel clock): Single link (max 225MHz) / Dual link
• Supporting Resolution & Distance
- WQXGA (2560 x 1600) @ 60Hz / 100M (330ft)
• Power Consumption (transmitter) : Single link 1.0W (max) / Dual link 1.4W (max)
• Power Consumption (receiver) : 2.5W (max)
• Power Supply (transmitter) : 100~240V DC 5V, 2A
• Power Supply (receiver) : 100~240V DC 5V, 2A
• Dimensions : 180W x 90D x 30H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C
